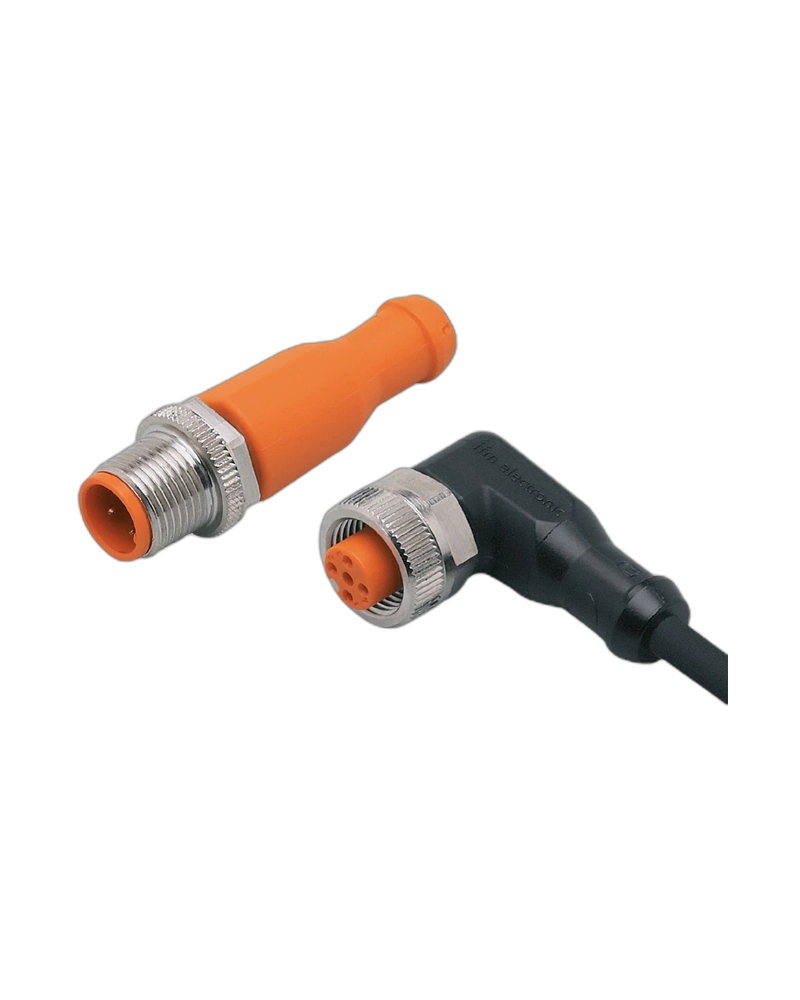

EVC022 is a 1 m M12 connection cable designed for PNP sensor and industrial automation applications. It provides a straight plug and angled socket configuration with integrated LED status indication. Gold-plated contacts support reliable electrical transmission while the PUR cable provides flexibility and industrial durability. The product is suitable for machine tools, factory automation and moving installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1 m cable length provides a practical connection distance for standard machine installations. Its PNP electrical design supports 10–36 V DC sensor applications and a current rating of up to 4 A. LED indicators allow technicians to identify operating and switching status directly at the connector. The cable is designed for reliable operation in demanding industrial environments.
The M12 plug uses a straight configuration while the M12 socket uses an angled configuration for easier routing. Both interfaces use A coding and gold-plated contacts. The connector assembly uses durable TPU material with nickel-plated brass locking hardware. FKM sealing provides reliable environmental protection around the socket connection.
EVC022 uses a 1 m black PUR cable with four 0.34 mm² conductors. The cable is free from silicone and halogens, supporting demanding industrial installation requirements. It is suitable for drag-chain applications and repeated movement. The cable construction provides resistance to oils, coolants and common mechanical stresses.
The cable supports 10–36 V DC operation and up to 4 A current load. IP65/IP67/IP68/IP69K protection allows use in harsh industrial environments. The product is suitable for applications involving machine tools, coolants and lubricants. Its MTTF rating is approximately 20,027 years.
1 m cable length
PNP electrical design
10–36 V DC
Straight M12 plug
Angled M12 socket
Gold-plated contacts
2 yellow status LEDs
Green power LED
PUR cable
Halogen-free
Silicone-free
IP69K protection
Factory automation
Industrial sensors
Machine tools
PNP sensor systems
Sensor diagnostics
Moving machinery
Automation panels
Industrial control equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC022 |
| Model | VDOAH043MSS0001H04STGH040MSS |
| Cable Length | 1 m |
| Electrical Design | PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Connector | M12 plug / M12 socket |
| Design | Straight / Angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Status Indication | 2 × yellow LED |
| Power Indication | Green LED |
| Drag-Chain Suitability | Yes |
| Pack Quantity | 1 pc. |
