EVC021 is a 0.6 m M12 connection cable designed for reliable PNP sensor and automation connections. It combines a straight M12 plug and angled M12 socket with integrated LED indication. The flexible PUR cable provides resistance to industrial oils, coolants and mechanical movement. Its compact configuration supports clean and efficient machine wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 0.6 m cable provides additional routing flexibility compared with the shorter EVC020 version. Its 10–36 V DC PNP design is suitable for compatible industrial sensors and automation equipment. Integrated yellow switching LEDs and a green power LED provide quick visual feedback. The cable is designed for demanding factory and machine-tool environments.

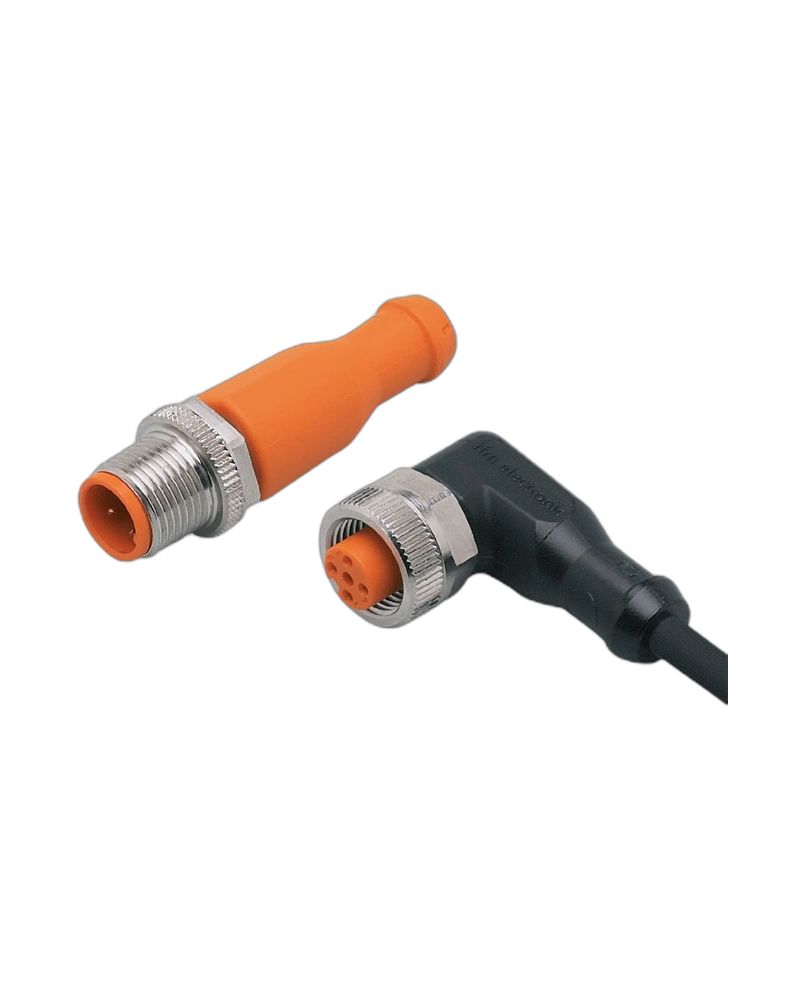

EVC021 uses A-coded M12 plug and socket interfaces with gold-plated contacts. The plug is straight while the socket is angled to simplify cable routing around machine components. TPU connector bodies and nickel-plated brass locking components provide mechanical strength. The LED-equipped socket provides direct visual monitoring of sensor operation.
The cable uses black halogen-free PUR insulation and four 0.34 mm² conductors. The 0.6 m length is suitable for compact machine connections while allowing additional routing flexibility. The cable is silicone-free and suitable for drag-chain applications. Its construction supports repeated movement and vibration in industrial machinery.
EVC021 operates from 10 to 36 V DC with a maximum current rating of 4 A. IP65, IP67, IP68 and IP69K protection ratings provide resistance against dust, water and industrial cleaning conditions. It is suitable for machine tools, factory automation and coolant-exposed environments. The product provides an MTTF value of approximately 20,027 years.
0.6 m cable
PNP electrical design
10–36 V DC
Straight M12 plug
Angled M12 socket
Gold-plated contacts
2 yellow switching LEDs
Green power LED
PUR cable
Halogen-free
Silicone-free
IP69K protection
Industrial sensors
PNP automation systems
Machine tools
Factory automation
Sensor diagnostics
Moving machinery
Control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC021 |
| Model | VDOAH043MSS00,6H04STGH040MSS |
| Cable Length | 0.6 m |
| Electrical Design | PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Connector | M12 plug / M12 socket |
| Design | Straight / Angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Up to 75 °C |
| MTTF | 20,027 years |
| Status LEDs | 2 × yellow |
| Power LED | Green |
| Drag-Chain Suitability | Yes |
| Pack Quantity | 1 pc. |
