EVC020 is a 0.3 m M12 connection cable designed for PNP sensor and automation applications. It combines a straight M12 plug with an angled M12 socket and provides integrated visual status indication. The cable uses a flexible halogen-free PUR construction with gold-plated contacts. Its compact length makes it suitable for space-constrained industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC020 is designed for connecting compatible M12 sensors and automation devices where short cable routing is preferred. Its DC PNP electrical design supports operating voltages from 10 to 36 V DC. Integrated LEDs provide visual indication of power and switching status directly at the connector. The cable is suitable for industrial automation, machine tools and moving applications.

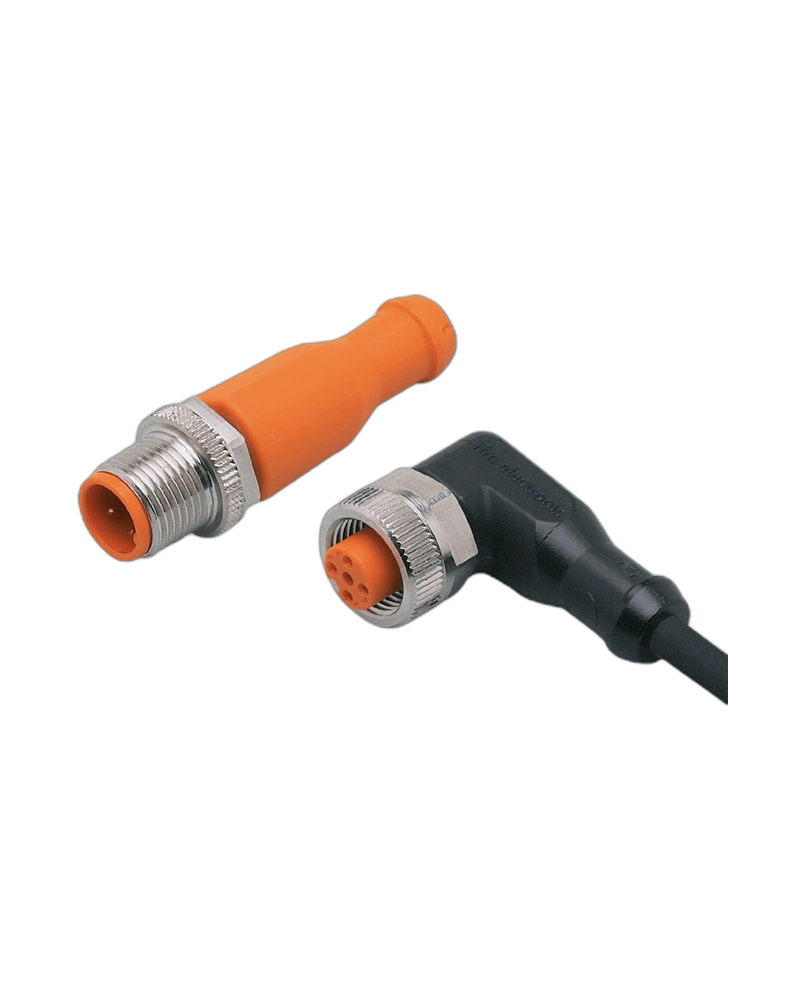

The cable uses M12 plug and M12 socket interfaces with A coding and gold-plated contacts. The connector assembly combines a straight plug with an angled socket for convenient cable routing. TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. The socket incorporates visible LED status indication for easier commissioning and diagnostics.
EVC020 uses a 0.3 m black PUR cable with four 0.34 mm² conductors. The cable is halogen-free and silicone-free for industrial installation requirements. Its flexible construction supports drag-chain applications and repeated mechanical movement. The cable design is resistant to oils and coolants commonly encountered in machine environments.
The cable operates from 10 to 36 V DC and supports a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings provide strong environmental protection. It is suitable for industrial automation, machine tools and applications involving coolants and lubricants. The product has an MTTF of approximately 20,027 years.
0.3 m cable length
DC PNP design
10–36 V DC operation
Straight M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
Yellow switching LEDs
Green power LED
Halogen-free PUR cable
IP69K protection
Drag-chain suitable
PNP sensor connections
Factory automation
Machine tools
Industrial sensors
Sensor diagnostics
Compact machine wiring
Moving machinery
Automation control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC020 |
| Model | VDOAH043MSS00,3H04STGH040MSS |
| Cable Length | 0.3 m |
| Electrical Design | PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Connector | M12 plug / M12 socket |
| Connector Design | Straight / Angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Status Indication | 2 × yellow LED |
| Power Indication | Green LED |
| Drag-Chain Suitability | Yes |
| Pack Quantity | 1 pc. |
