EVC01E is a PNP/NPN inverter module designed to convert compatible sensor output signals for industrial automation systems. It is intended for sensors using M12 connections and provides a practical solution when signal-type compatibility is required. The module operates from a 24 V DC supply and includes an integrated 5 m PUR connection cable. Its compact and rugged construction makes it suitable for demanding machine and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC01E provides signal conversion between PNP and NPN sensor interfaces, helping integrate sensors with control systems using a different signal configuration. It is designed for sensors conforming to IEC 60947-5-2 with normally open operation. The module includes visual indication through yellow switching LEDs and a green power LED. Its IP65/IP67/IP68/IP69K protection allows use in demanding industrial environments.

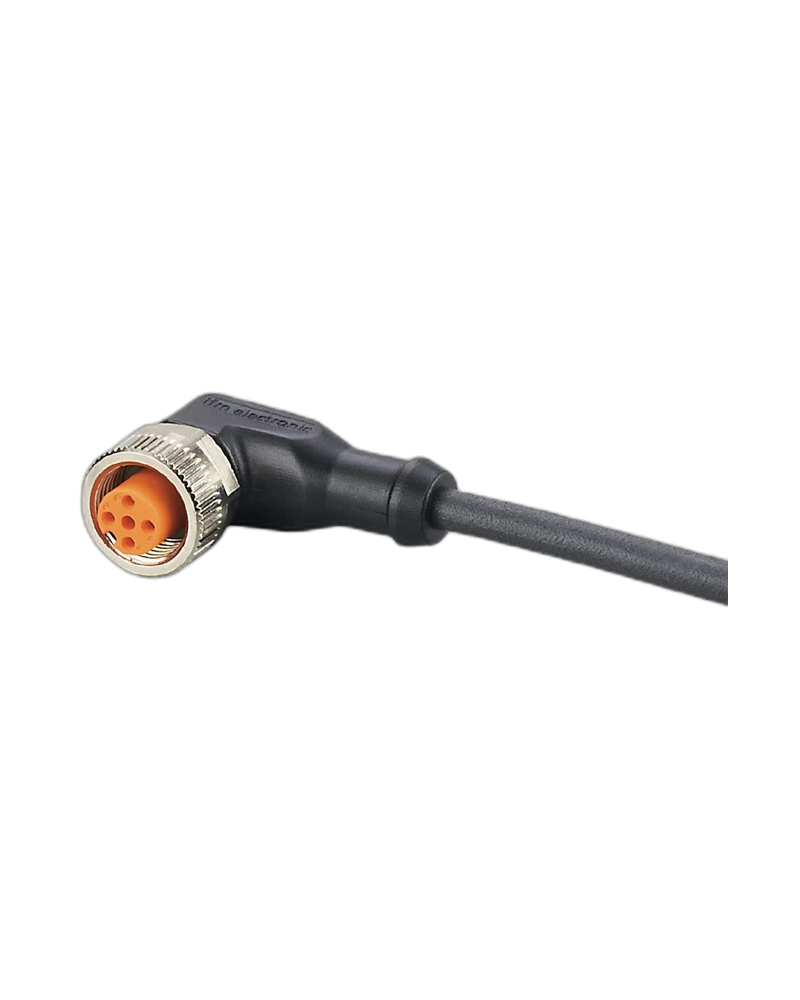

The module uses an angled M12 socket with A coding and gold-plated contacts. The connection is secured using a nickel-plated brass locking nut with FKM sealing. The integrated cable provides direct connection to the automation system without requiring an additional cable assembly. The connector design supports reliable electrical and mechanical connection in industrial applications.
EVC01E incorporates a 5 m black PUR cable with four 0.34 mm² conductors and a 4.3 mm cable diameter. The cable is halogen-free and designed for flexible industrial use. It is suitable for drag-chain applications with a minimum bending radius of 10 times the cable diameter. The cable supports more than five million bending cycles under specified conditions.
The module operates at 24 V DC ±10% and has a maximum current rating of 0.1 A. The switching output has a maximum voltage drop of approximately 2 V. Protection class II and IP65/IP67/IP68/IP69K protection support reliable operation in industrial environments. The module operates across an ambient temperature range of -25 to +60 °C.
PNP/NPN signal conversion
24 V DC operation
M12 sensor connection
Integrated 5 m cable
Gold-plated contacts
Yellow switching LEDs
Green power LED
IP69K protection
Halogen-free PUR cable
Drag-chain suitable
PNP/NPN signal conversion
Industrial sensor integration
Factory automation
Machine control systems
Sensor-to-controller interfaces
Automation panels
Machine tools
Industrial control equipment
| Specification | Details |
|---|---|
| Product Type | PNP/NPN Inverter Module |
| Order Number | EVC01E |
| Function | PNP/NPN Signal Conversion |
| Electrical Design | DC |
| Supply Voltage | 24 V DC ±10% |
| Current Rating | 0.1 A |
| Voltage Drop | 2 V max. |
| Protection Class | II |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Contacts | Gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, black |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...60 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Switching Indication | 2 × yellow LED |
| Power Indication | 1 × green LED |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Weight | Approx. 0.18 kg |
