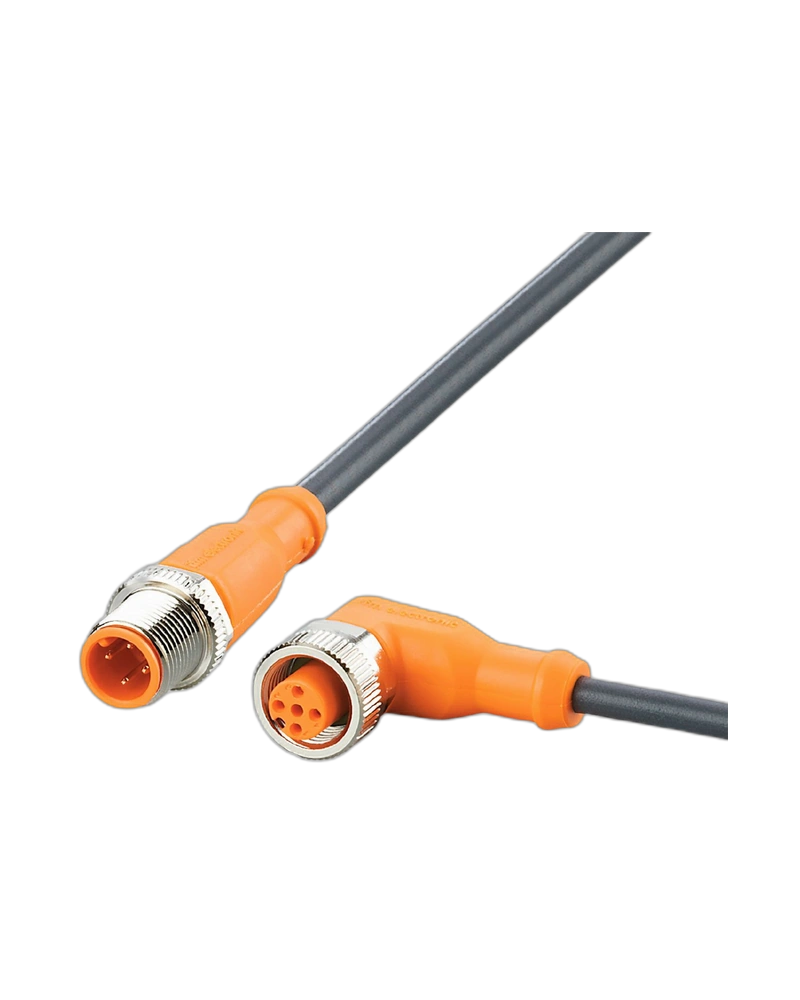

EVC019 is a 5 m M12 connection cable with a straight plug and angled socket designed for extended industrial sensor and automation connections. It combines flexible PUR cable construction with gold-plated contacts and reliable FKM sealing. The angled socket provides convenient cable routing around machinery and equipment. Its robust construction is suitable for demanding factory automation, machine-tool and moving applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m cable provides extended reach between sensors, actuators and automation equipment while maintaining a compact angled connection arrangement. EVC019 is suitable for installations where cable routing space around the connected device is limited. The halogen-free PUR cable is designed for industrial use and resistance to oils and coolants. Its high protection rating supports reliable operation in harsh environments.
EVC019 uses a straight M12 plug and angled M12 socket with A coding. Both connectors use four gold-plated contacts for dependable electrical connection. Orange TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. FKM sealing protects the socket interface against environmental contamination.
The cable is 5 m long and contains four 0.34 mm² conductors inside a black PUR jacket. The halogen-free construction provides flexibility and resistance to industrial fluids. It is suitable for drag-chain applications with a minimum bending radius of 10 times the cable diameter. The cable supports more than 5 million bending cycles, a maximum travel speed of 3.3 m/s and ±180°/m torsional strain under specified conditions.
EVC019 supports operating voltages below 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings make it suitable for demanding industrial environments. The cable is specifically suited to factory automation, machine tools and applications involving coolants and lubricants. Its robust connector design provides resistance to vibration and shock.
5 m cable length
Straight M12 plug
Angled M12 socket
A-coded interface
Four gold-plated contacts
PUR halogen-free cable
Silicone-free construction
FKM sealing
Oil and coolant resistant
IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Machine tools
Industrial sensor systems
Automation equipment
Moving machinery
Coolant environments
Lubricant-exposed equipment
Sensor-to-controller connections
Control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC019 |
| Model | VDOAH040MSS0005H04STGH040MSS |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Storage Temperature | -25 to +55 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Weight | Approx. 167.7 g |
| Pack Quantity | 1 pc. |
