EVC018 is a 2 m M12 connection cable featuring a straight plug and angled socket for flexible industrial installation. It provides reliable electrical connection between compatible sensors, actuators and automation components. The cable combines gold-plated contacts, PUR insulation and FKM sealing for dependable industrial operation. Its high protection rating makes it suitable for harsh factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 2 m cable length provides extended connection reach while retaining the routing advantages of an angled socket. EVC018 is suitable for machine installations where the cable needs to exit the sensor connection at an angle. Its halogen-free and silicone-free construction is designed for industrial environments. The cable also supports moving applications and drag-chain installations.

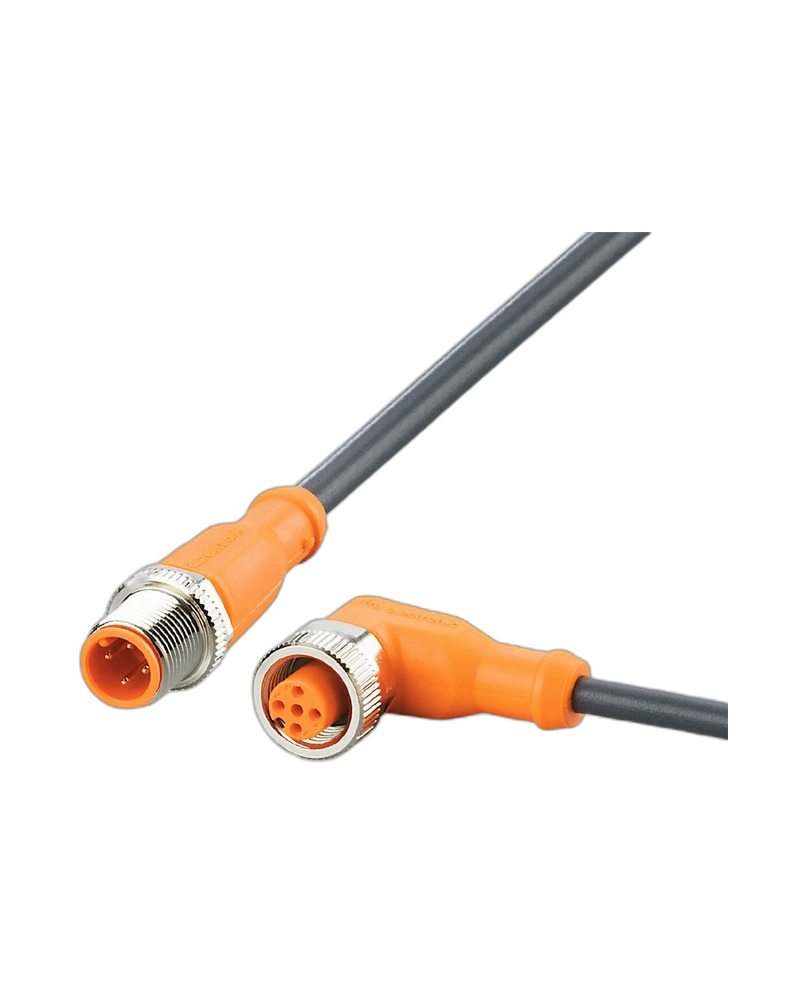

EVC018 uses a straight M12 plug and angled M12 socket with A coding. The four contacts are gold-plated to provide dependable electrical transmission. Orange TPU connector bodies and nickel-plated brass locking components provide mechanical durability. FKM sealing supports reliable environmental protection at the socket interface.
The cable is 2 m long with four 0.34 mm² conductors and a black PUR outer jacket. PUR construction provides flexibility and resistance against oils and coolants. The cable is suitable for drag-chain applications and repeated machine movement. Its construction supports bending and torsional stresses encountered in industrial machinery.
EVC018 operates below 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings support demanding industrial applications. The cable is suitable for machine tools, factory automation and applications involving coolants and lubricants. Its locking system provides stable connection performance under vibration and shock.
2 m cable length
Straight M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
FKM sealing
IP69K protection
Drag-chain suitable
Industrial automation
Machine tools
Factory automation
Sensor connections
Actuator connections
Moving machinery
Control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC018 |
| Model | VDOAH040MSS0002H04STGH040MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Weight | Approx. 88.5 g |
| Pack Quantity | 1 pc. |
