EVC017 is a 1 m M12 connection cable designed with a straight plug and angled socket for flexible industrial cable routing. It provides a practical solution for sensors and automation devices installed where direct straight cable routing is restricted. The cable uses gold-plated contacts and flexible halogen-free PUR insulation. Its robust construction supports demanding factory automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1 m cable provides a useful combination of connection reach and compact installation. The angled socket helps route the cable efficiently around machine components and sensor housings. EVC017 is designed for industrial applications involving oils, coolants and repeated cable movement. It combines reliable electrical performance with high environmental protection.

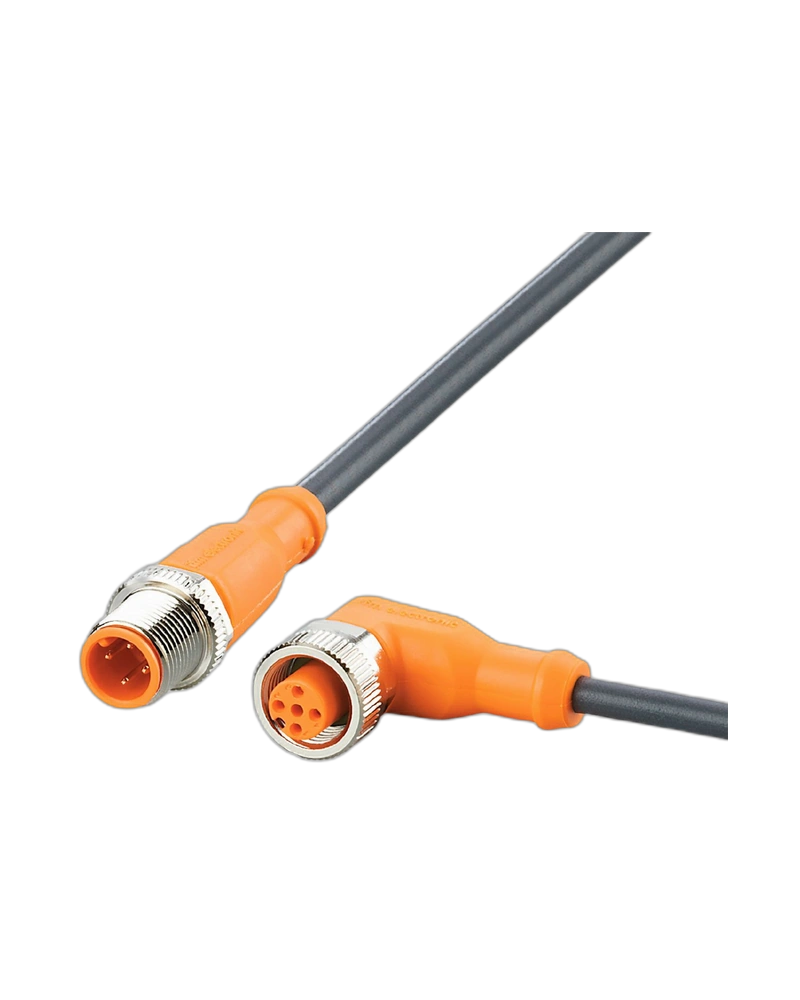

EVC017 features a straight M12 plug and angled M12 socket, both using A coding. Four gold-plated contacts provide reliable electrical connection and long service performance. The TPU connector body and nickel-plated brass locking components provide secure mechanical attachment. FKM sealing protects the connection from environmental contaminants.
The cable is 1 m long and uses black PUR insulation with four 0.34 mm² conductors. The halogen-free and silicone-free cable construction supports demanding industrial applications. It is suitable for drag-chain installation and flexible cable routing. The design supports more than 5 million bending cycles under specified conditions.
EVC017 supports less than 250 V AC and 300 V DC and a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings provide resistance against water, dust and industrial cleaning conditions. The cable is suitable for factory automation, machine tools and moving machinery. Its coupling system provides reliable resistance to vibration and shock.
1 m cable length
Straight M12 plug
Angled M12 socket
A-coded interface
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP69K protection
Drag-chain compatible
Factory automation
Industrial sensors
Machine tools
Moving machinery
Automation equipment
Sensor connections
Control systems
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC017 |
| Model | VDOAH040MSS0001H04STGH040MSS |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Weight | Approx. 60.1 g |
| Pack Quantity | 1 pc. |
