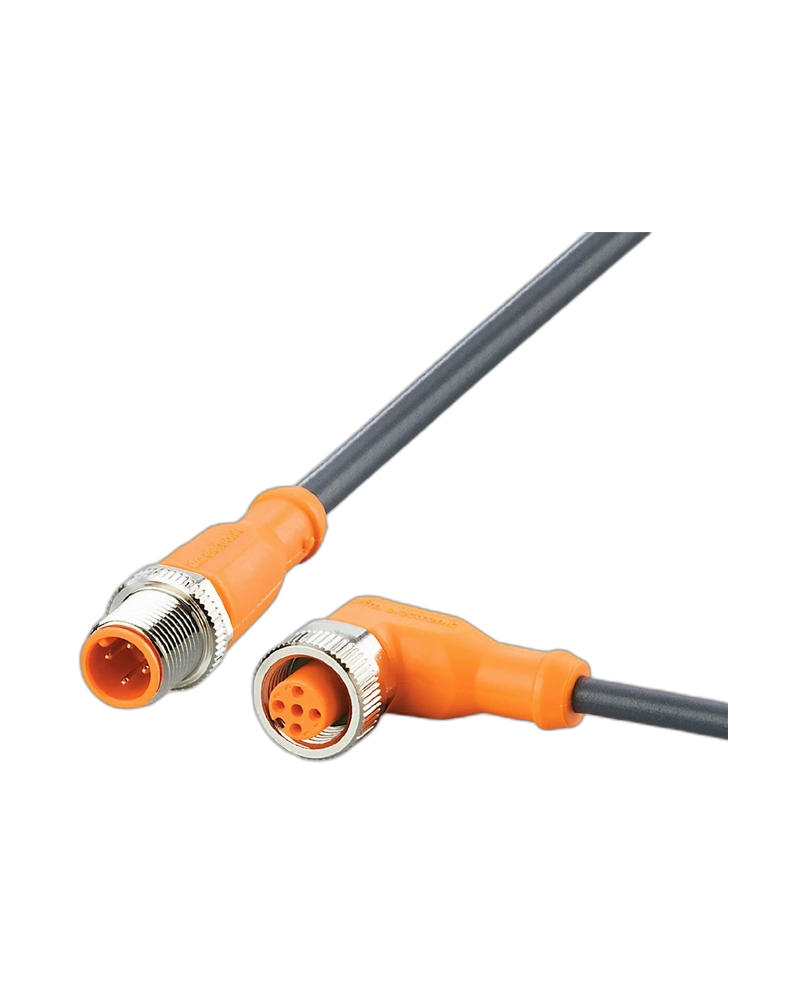

EVC016 is a 0.6 m M12 connection cable with a straight plug and angled socket configuration. It provides flexible routing for industrial sensors and automation devices installed in restricted spaces. The cable uses four 0.34 mm² conductors with gold-plated M12 contacts. Its PUR construction and high protection rating make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 0.6 m length provides additional routing flexibility while remaining compact enough for machine assemblies. The angled M12 socket allows the cable to be directed away from the connected device without requiring a separate elbow adapter. EVC016 is halogen-free, silicone-free and suitable for oil and coolant environments. Its design supports both fixed and moving industrial applications.
The product uses a straight M12 plug and angled M12 socket with A coding. Both connectors feature four gold-plated contacts for reliable signal transmission. TPU connector bodies and nickel-plated brass locking components provide mechanical strength and secure coupling. FKM sealing protects the socket connection against environmental contamination.
EVC016 uses a 0.6 m black PUR cable with four 0.34 mm² conductors. The cable is halogen-free and designed for flexible industrial applications. It supports drag-chain use with a minimum bending radius of 10 times the cable diameter. The construction supports repeated bending, vibration and torsional movement.
The cable supports less than 250 V AC and 300 V DC with a maximum current rating of 4 A. IP65, IP67, IP68 and IP69K protection ratings support harsh industrial environments. It is suitable for factory automation, machine tools, coolants and lubricants. The locking mechanism helps maintain connection stability under mechanical vibration and shock.
0.6 m cable
Straight M12 plug
Angled M12 socket
A-coded connection
Four gold-plated contacts
PUR halogen-free cable
Silicone-free construction
FKM sealing
IP69K protection
Drag-chain suitable
Industrial automation
Machine tools
Sensor connections
Compact machinery
Moving machine systems
Factory automation
Control equipment
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC016 |
| Model | VDOAH040MSS00,6H04STGH040MSS |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc. |
