EVC015 is a 0.3 m M12 connection cable featuring a straight plug and angled socket configuration. It is designed for compact industrial sensor and automation installations where the cable needs to change direction near the connected device. Gold-plated contacts provide reliable electrical transmission, while PUR insulation offers flexibility and industrial durability. The cable is suitable for moving machine and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The compact 0.3 m cable is designed to reduce excess wiring in machine assemblies. Its straight plug and angled socket combination provides greater routing flexibility around sensors and automation components. The halogen-free PUR cable is resistant to oils and coolants commonly encountered in industrial machinery. The product also supports drag-chain applications and repeated mechanical movement.

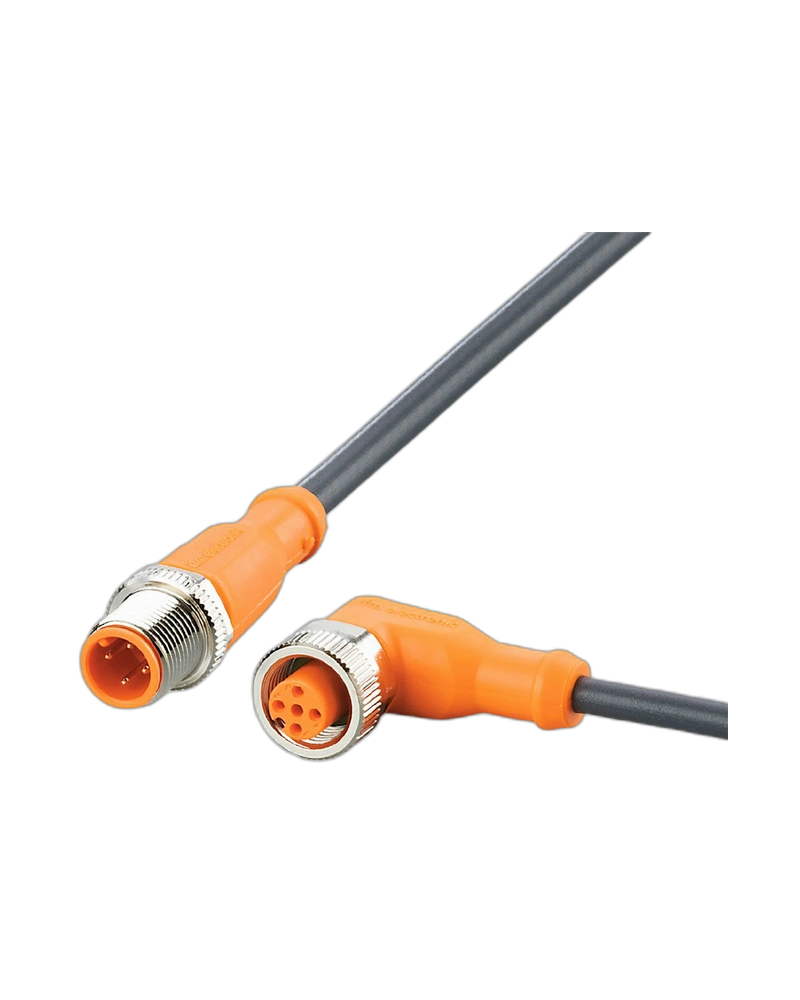

EVC015 uses a straight M12 plug on one side and an angled M12 socket on the other side. Both connectors use A coding and four gold-plated contacts. Orange TPU bodies provide robust connector construction, while nickel-plated brass locking components provide secure mechanical coupling. The angled socket is particularly useful where cable routing space is limited.
The cable is 0.3 m long and uses black halogen-free PUR with four 0.34 mm² conductors. The flexible cable construction supports compact and moving machine applications. It is resistant to oils and coolants and suitable for drag-chain use. The design supports repeated bending and torsional movement.
EVC015 supports operating voltages below 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings provide strong environmental protection. The cable is suitable for factory automation, machine tools and industrial equipment. Its locking and sealing construction supports reliable performance under vibration and shock.
0.3 m cable length
Straight M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free construction
FKM sealing
IP69K protection
Drag-chain suitable
Compact machine wiring
Industrial sensors
Factory automation
Machine tools
Moving machinery
Control systems
Sensor-to-controller connections
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC015 |
| Model | VDOAH040MSS00,3H04STGH040MSS |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Connector Body | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Drag-Chain Suitability | Yes |
| Cable Features | Halogen-free, silicone-free |
| Pack Quantity | 1 pc. |
