EVC014 is a 5 m M12 connection cable designed for extended sensor and automation connections. It uses straight M12 plug and socket interfaces with four gold-plated contacts. The black PUR cable provides flexibility, chemical resistance and reliable performance in industrial environments. Its high protection rating makes it suitable for demanding factory automation and machine-tool applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m cable provides extended reach between M12-compatible sensors, actuators and control equipment. EVC014 helps simplify machine wiring where devices are positioned farther apart. Its PUR cable construction provides flexibility and resistance to oils and coolants. The connection system is designed for reliable operation under vibration, shock and repeated movement.

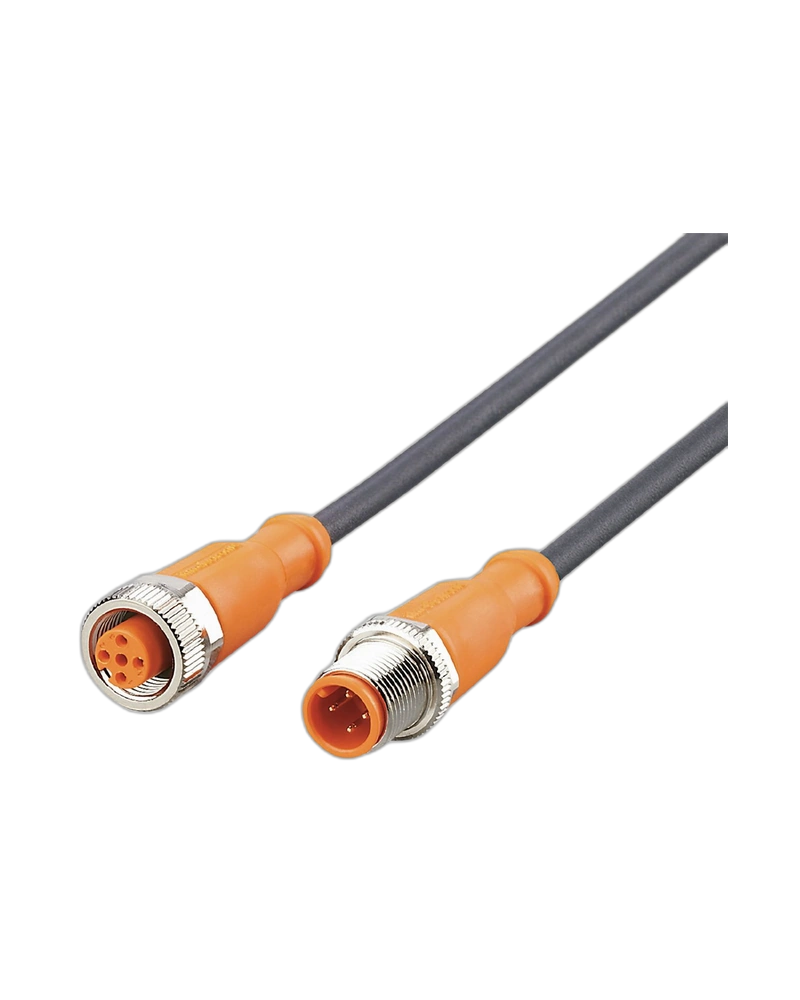

EVC014 features a straight M12 plug and straight M12 socket with A coding. The four contacts are gold-plated for reliable electrical conductivity and long-term connection performance. Orange TPU connector bodies provide mechanical protection, while nickel-plated brass locking components ensure secure coupling. FKM sealing provides additional environmental protection.
The 5 m cable uses black halogen-free PUR insulation and four 0.34 mm² conductors. The cable is suitable for flexible industrial applications and drag-chain installation. A minimum bending radius of 10 times the cable diameter supports controlled cable movement. The design supports more than 5 million bending cycles under specified conditions.
EVC014 supports less than 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings allow use in demanding industrial environments. It is suitable for machine tools, factory automation and applications involving coolants and lubricants. Its mechanical coupling system helps protect the connection from vibration and shock.
5 m cable length
Straight M12 plug and socket
A-coded interface
Gold-plated contacts
Halogen-free PUR cable
Silicone-free
Oil and coolant resistant
IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Machine tools
Industrial sensor connections
Automation equipment
Coolant environments
Lubricant-exposed machinery
Moving machine systems
Control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC014 |
| Model | VDOGH040MSS0005H04STGH040MSS |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Pack Quantity | 1 pc. |
