EVC013 is a 2 m M12 connection cable for reliable industrial sensor and automation connections. It features straight M12 plug and socket connectors with four gold-plated contacts. The flexible PUR cable is resistant to oils and coolants and is suitable for demanding machine applications. Its high protection rating provides reliable performance in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 2 m cable provides additional installation reach while maintaining a compact and reliable M12 connection system. EVC013 is designed for connecting sensors, actuators and automation components in factory environments. Its halogen-free and silicone-free cable construction supports industrial installation requirements. The product is also suitable for moving applications and drag-chain installations.

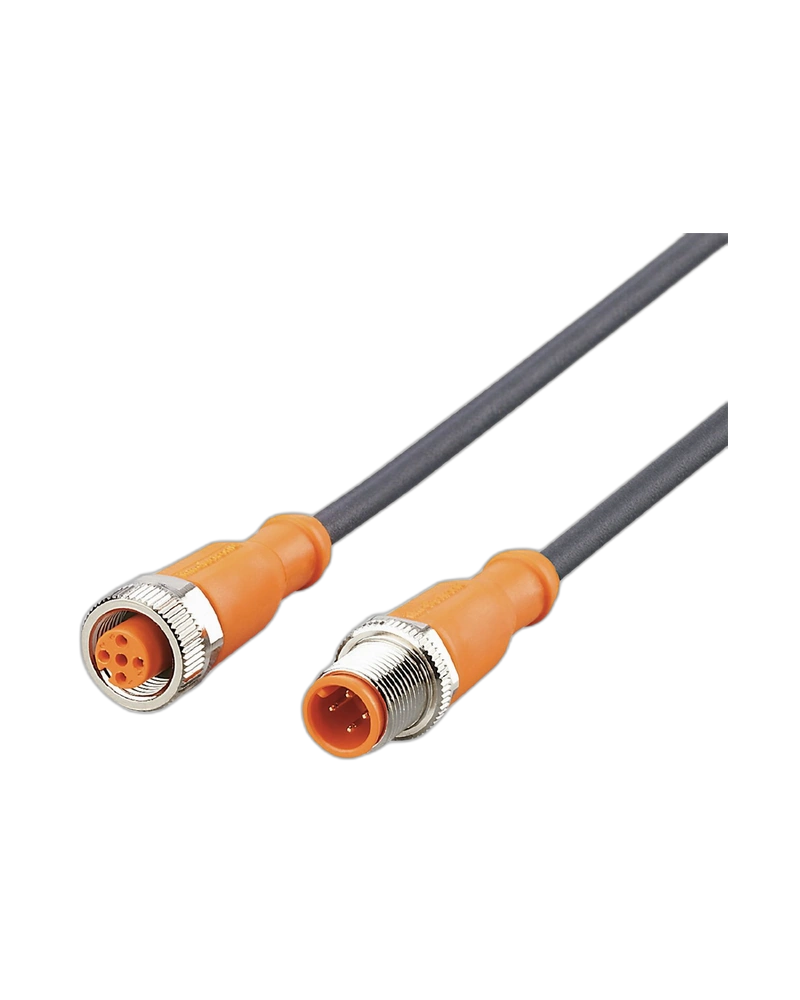

EVC013 uses one straight M12 plug and one straight M12 socket with A coding. Four gold-plated contacts provide reliable electrical signal and power transmission. The orange TPU connector bodies provide mechanical durability, while nickel-plated brass locking components maintain secure coupling. FKM sealing protects the connection against environmental contamination.
The cable is 2 m long and uses black PUR insulation with four 0.34 mm² conductors. The PUR material provides flexibility and resistance to oils and coolants. It is designed for industrial environments where repeated movement and vibration can occur. Drag-chain suitability allows use in moving machine assemblies.
EVC013 supports operating voltages below 250 V AC and 300 V DC with a maximum current load of 4 A. Its IP65, IP67, IP68 and IP69K protection ratings provide protection against dust, water and demanding cleaning environments. The locking mechanism provides resistance to vibration and shock during machine operation.
2 m cable length
Straight M12 plug
Straight M12 socket
A-coded connection
Four gold-plated contacts
PUR cable
Halogen-free
Silicone-free
Oil and coolant resistant
IP69K protection
Drag-chain suitable
Industrial automation
Factory automation
Machine tools
Sensor wiring
Actuator connections
Control systems
Moving machinery
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC013 |
| Model | VDOGH040MSS0002H04STGH040MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Cable Suitability | Drag-chain |
| Cable Features | Halogen-free, silicone-free |
| Pack Quantity | 1 pc. |
