EVC012 is a 1 m M12 connection cable designed for industrial automation, sensors and machine connections. It features straight M12 plug and socket connectors with gold-plated contacts for reliable signal transmission. The black PUR cable provides flexibility and resistance to industrial fluids. Its robust connector and sealing design support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1 m cable length provides a useful balance between flexibility and compact machine wiring. EVC012 is suitable for connecting M12-compatible sensors, actuators and automation devices without unnecessary cable loops. Its halogen-free and silicone-free construction supports modern industrial installation requirements. The product is designed for demanding factory automation environments.

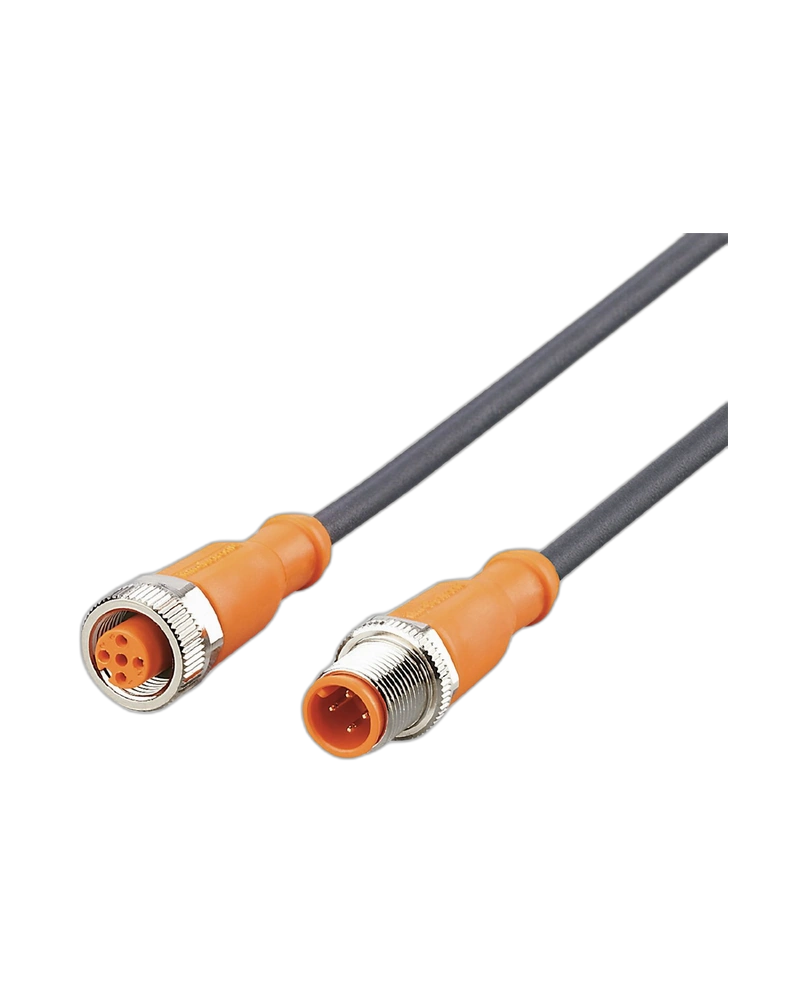

EVC012 uses one straight M12 plug and one straight M12 socket. Both interfaces use A coding and four gold-plated contacts for dependable electrical connection. The TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. FKM sealing supports reliable protection against environmental contamination.
The cable uses black PUR insulation with four 0.34 mm² conductors. PUR construction provides flexibility and resistance against oils and coolants commonly encountered in industrial machinery. The cable is suitable for flexible and drag-chain applications. Its construction supports repeated bending, vibration and mechanical movement.
EVC012 is intended for industrial applications and factory automation systems. It supports operating voltage below 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings provide strong protection against environmental exposure. The coupling design also helps resist vibration and shock.
1 m cable length
Straight M12 plug and socket
A-coded interface
Four gold-plated contacts
PUR cable
Halogen-free construction
Silicone-free construction
Oil and coolant resistant
IP65/IP67/IP68/IP69K protection
Drag-chain suitable
Factory automation
Industrial sensor systems
Machine tools
Automation equipment
Sensor connections
Actuator connections
Control systems
Moving machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC012 |
| Model | VDOGH040MSS0001H04STGH040MSS |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductors | 4 × 0.34 mm² |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A |
| Contacts | 4, gold-plated |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Drag-Chain Suitability | Yes |
| Cable Features | Halogen-free, silicone-free |
| Pack Quantity | 1 pc. |
