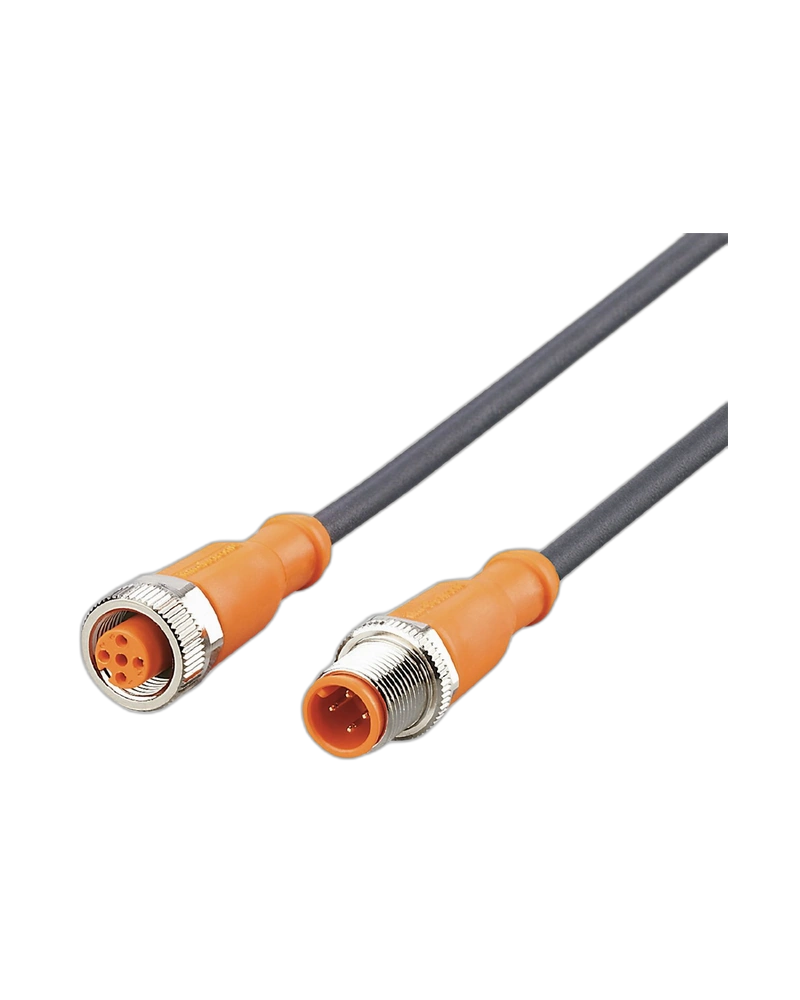

EVC011 is a 0.6 m M12 connection cable developed for reliable industrial automation and sensor connections. It combines a straight M12 plug with a straight M12 socket and four gold-plated contacts. The flexible PUR cable provides good resistance to oils, coolants and mechanical stress. Its compact length makes it suitable for machine-level connection and jumper applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC011 provides a practical connection between M12-compatible industrial devices where a short cable length is required. The 0.6 m cable helps maintain organized machine wiring while providing sufficient flexibility for component positioning. Its halogen-free and silicone-free construction supports industrial installation requirements. The cable is also suitable for drag-chain applications.
The cable is equipped with straight M12 connectors using A coding and four gold-plated contacts. The connector bodies are made from orange TPU for mechanical durability. Nickel-plated brass locking components provide secure coupling during machine operation. FKM sealing helps maintain reliable environmental protection at the connection points.
EVC011 uses a black PUR cable with four 0.34 mm² conductors and a compact 0.6 m length. The PUR jacket provides flexibility and resistance against industrial fluids. Its construction is suitable for moving applications and drag-chain installations. The cable is designed to withstand repeated bending and mechanical movement.
The cable is suitable for factory automation, machine tools and industrial sensor connections. It supports less than 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection provides strong environmental resistance. Its locking mechanism helps maintain connection integrity under vibration and shock.
0.6 m cable length
Straight M12 plug
Straight M12 socket
A-coded interface
Gold-plated contacts
PUR cable construction
Halogen-free and silicone-free
Oil and coolant resistant
IP69K protection
Drag-chain suitable
Industrial sensors
Factory automation
Machine tools
Automation equipment
Sensor networks
Control systems
Moving machine assemblies
Industrial machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC011 |
| Model | VDOGH040MSS00,6H04STGH040MSS |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductors | 4 × 0.34 mm² |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Seal | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Cable Suitability | Drag-chain |
| Cable Features | Halogen-free, silicone-free |
| Pack Quantity | 1 pc. |
