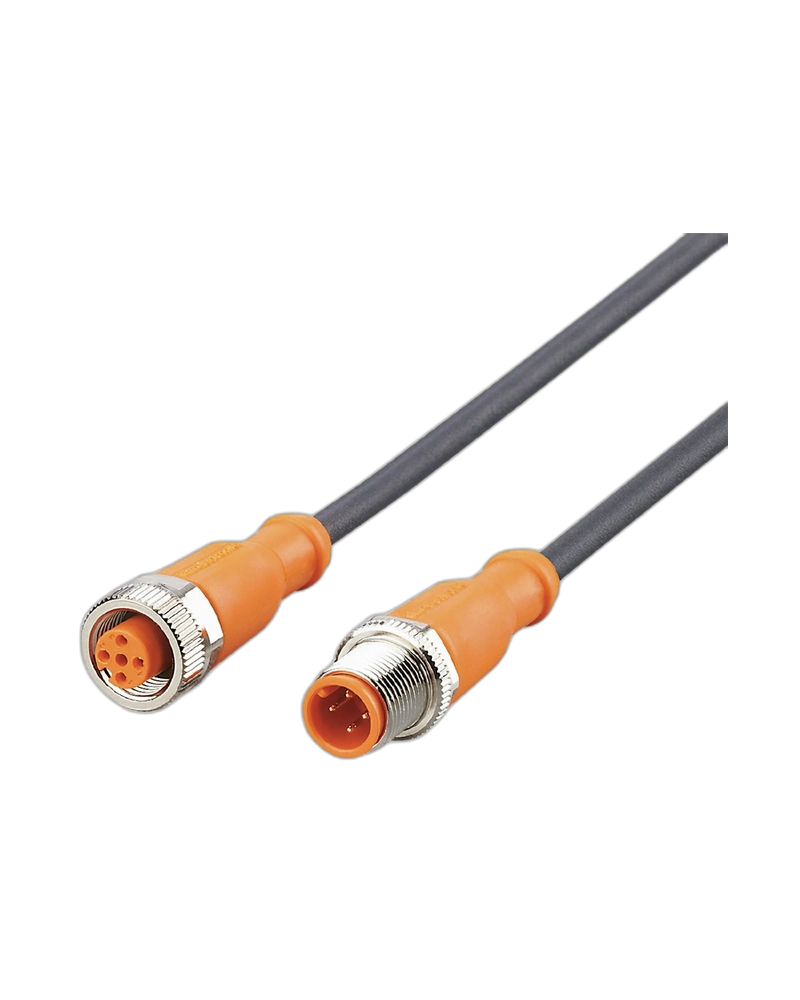

EVC010 is a compact M12 connection cable designed for reliable industrial sensor and automation connections. It features a 0.3 m PUR cable with a straight M12 plug and straight M12 socket. Gold-plated contacts provide dependable electrical transmission, while the robust connector construction supports demanding industrial environments. The cable is suitable for flexible machine and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC010 is designed as a short jumper cable for connecting M12-compatible sensors, actuators and automation components. Its compact 0.3 m length helps minimize excess cable inside machines and control assemblies. The cable is halogen-free, silicone-free and suitable for applications involving oils and coolants. Its high protection rating supports reliable operation in harsh industrial environments.
The cable uses an M12 plug and M12 socket with A coding and four gold-plated contacts. Both connector ends are designed for secure industrial coupling using nickel-plated brass locking components. The TPU connector bodies provide mechanical robustness and the FKM sealing system supports reliable environmental protection. The recommended tightening torque is 0.6–1.5 Nm.
The 0.3 m cable uses flexible black PUR insulation with four 0.34 mm² conductors. The halogen-free construction is suitable for industrial automation and machine environments. The cable is resistant to oils and coolants and is suitable for drag-chain applications. Its flexible construction supports repeated movement, bending and vibration.
EVC010 is designed for industrial applications, factory automation and machine-tool installations. It supports operating voltages below 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection ratings provide resistance against dust, water and cleaning conditions. The connector design also provides resistance to vibration and mechanical shock.
0.3 m compact cable length
M12 plug and M12 socket
A-coded connection
Four gold-plated contacts
Halogen-free PUR cable
Silicone-free construction
Oil and coolant resistant
IP65/IP67/IP68/IP69K protection
Drag-chain suitable
Secure vibration-resistant coupling
Industrial automation
Factory automation
Sensor and actuator connections
Machine tools
Control cabinets
Compact machine assemblies
Moving machinery
Industrial connection systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC010 |
| Model | VDOGH040MSS00,3H04STGH040MSS |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Construction | 4 × 0.34 mm² |
| Connector Type | M12 plug / M12 socket |
| Connector Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 to +90 °C |
| Drag-Chain Suitability | Yes |
| Cable Type | Halogen-free, silicone-free |
| Pack Quantity | 1 pc. |
