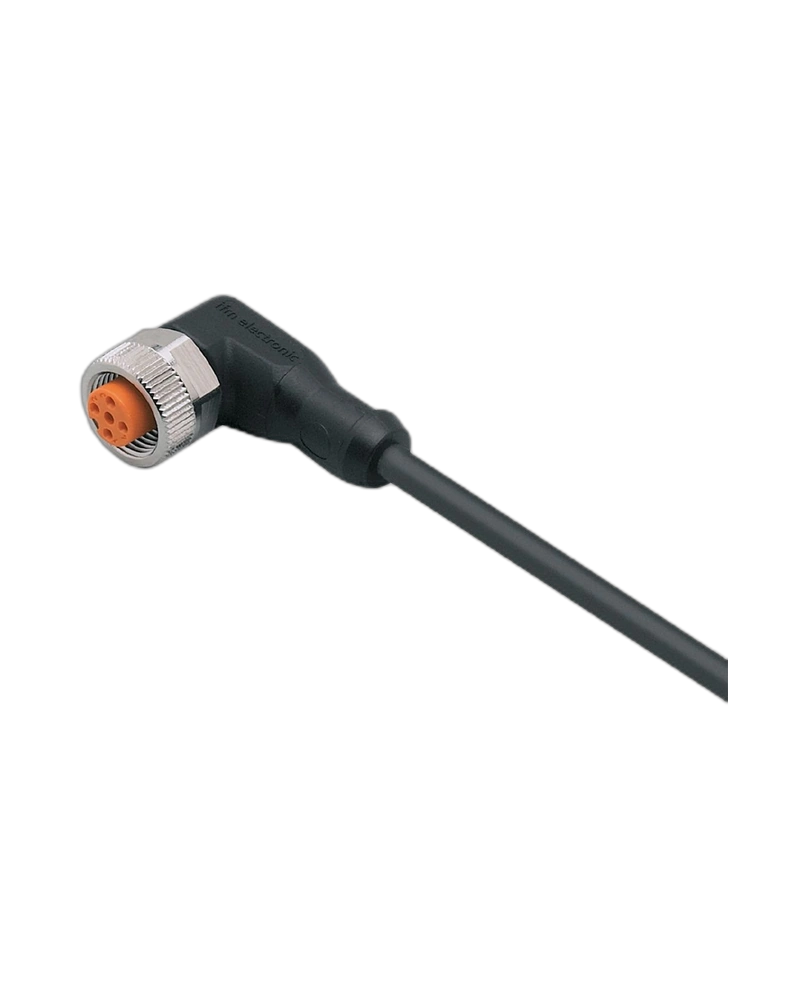

EVC009 is a 10 m angled M12 connecting cable with integrated LED status indication for industrial automation applications. It supports 10–36 V DC PNP operation and provides visual feedback through yellow switching LEDs and a green power LED. The cable uses a halogen-free PUR jacket and gold-plated contacts. Its extended length and robust protection make it suitable for demanding machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC009 provides a 10 m cable length for installations where sensors and control equipment are positioned farther apart. The extended cable reduces the need for additional cable extensions. It is suitable for larger machines and distributed automation layouts.
Two yellow LEDs provide switching-status indication while a green LED indicates power operation. These indicators make commissioning and troubleshooting easier. Technicians can visually check the connected sensor interface at the connector.
The product uses a 10–36 V DC PNP electrical design with a 4 A maximum current rating. Its angled M12 connector uses transparent TPU housing, FKM sealing and gold-plated contacts. IP65/IP67/IP68/IP69K protection and drag-chain suitability support harsh industrial applications.
10 m cable
Angled M12 connector
PNP electrical design
10–36 V DC
4 A current rating
2 yellow switching LEDs
1 green power LED
Gold-plated contacts
Halogen-free PUR cable
IP69K protection
Long-distance sensor wiring
PNP sensor applications
Industrial automation
Machine tools
Factory automation
Moving machinery
Sensor diagnostics
Control systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Order Number | EVC009 |
| Model | ADOAH043MSS0010H04 |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | 1 × M12 |
| Design | Angled |
| Coding | A |
| Electrical Design | PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Contacts | Gold-plated |
| Housing | TPU, black transparent |
| Sealing | FKM |
| Switching LEDs | 2 × yellow |
| Power LED | 1 × green |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Weight | 286.4 g |
| Pack Quantity | 1 pc. |
