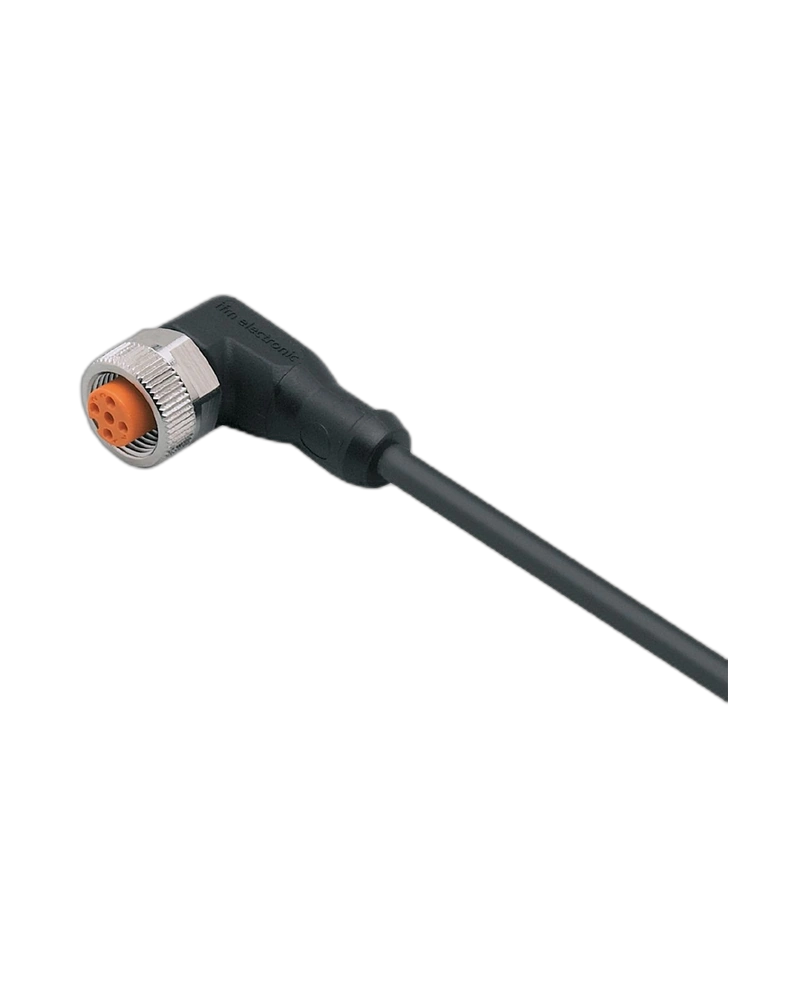

EVC008 is a 5 m angled M12 connecting cable with integrated LED status indication for industrial sensor applications. It supports 10–36 V DC PNP operation and provides visual indication of power and switching status. The cable is made from halogen-free PUR and includes gold-plated M12 contacts. Its high protection rating makes it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Two yellow LEDs indicate switching status while a green LED indicates operating power. This allows technicians to check sensor operation directly at the connection point. It simplifies commissioning, troubleshooting and routine maintenance.
The 5 m cable provides extended installation distance between the sensor and control equipment. Four 0.34 mm² conductors provide the required signal wiring. The PUR jacket is halogen-free and suitable for moving applications.
The angled M12 socket uses a transparent TPU body, FKM sealing and nickel-plated brass locking hardware. IP65, IP67, IP68 and IP69K protection ratings support harsh industrial conditions. Drag-chain capability enables use in moving machinery.
5 m cable
Angled M12 connector
PNP electrical design
10–36 V DC
4 A current rating
2 yellow switching LEDs
1 green power LED
Gold-plated contacts
Halogen-free PUR
IP69K protection
Industrial sensors
PNP sensor connections
Machine tools
Factory automation
Sensor diagnostics
Moving machinery
Control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Order Number | EVC008 |
| Model | ADOAH043MSS0005H04 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | 1 × M12 |
| Design | Angled |
| Coding | A |
| Electrical Design | PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Contacts | Gold-plated |
| Housing | TPU, black transparent |
| Sealing | FKM |
| Switching LEDs | 2 × yellow |
| Power LED | 1 × green |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Weight | 144.7 g |
| Pack Quantity | 1 pc. |
