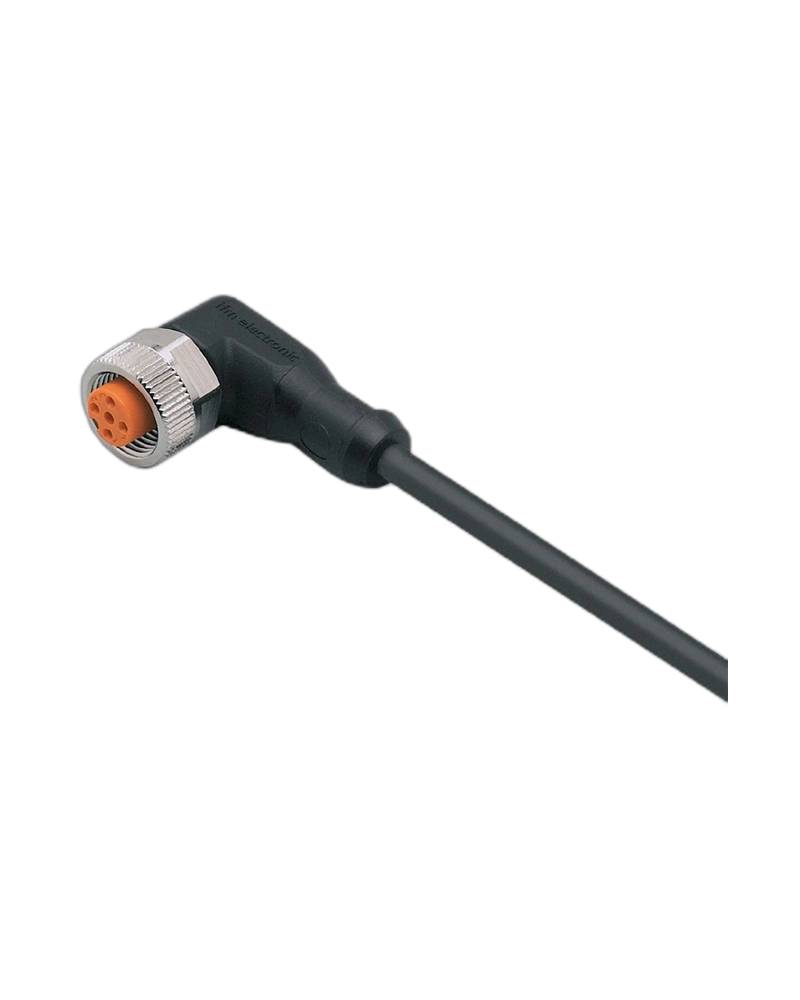

EVC007 is a 2 m angled M12 connecting cable with integrated LED status indication. It is designed for DC PNP sensor connections and operates from 10 to 36 V DC. The transparent connector body allows clear visibility of yellow switching-status LEDs and a green power LED. Its rugged IP-rated construction makes it suitable for industrial automation and moving applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC007 includes two yellow LEDs for switching-status indication and one green LED for power indication. This provides immediate visual feedback during commissioning and troubleshooting. Operators can identify connection and signal status without additional diagnostic equipment.
The cable assembly uses a DC PNP electrical design with a 10–36 V DC operating range. It supports compatible M12 sensor applications requiring PNP output wiring. The 4 A current rating provides flexibility for standard industrial sensor connections.
The 2 m PUR cable is suitable for drag-chain applications and moving machinery. The angled connector uses transparent TPU, FKM sealing and a nickel-plated brass nut. IP65/IP67/IP68/IP69K protection supports demanding factory environments.
2 m cable
Angled M12 connector
PNP electrical design
10–36 V DC
4 A current rating
2 yellow status LEDs
1 green power LED
Transparent TPU housing
Gold-plated contacts
IP69K protection
PNP sensors
Industrial automation
Machine tools
Sensor status monitoring
Factory automation
Machine diagnostics
Moving machinery
Control systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Order Number | EVC007 |
| Model | ADOAH043MSS0002H04 |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | 1 × M12 |
| Design | Angled |
| Coding | A |
| Electrical Design | DC PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Contacts | Gold-plated |
| Housing | TPU, black transparent |
| Sealing | FKM |
| Status LEDs | 2 × yellow |
| Power LED | 1 × green |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Pack Quantity | 1 pc. |
