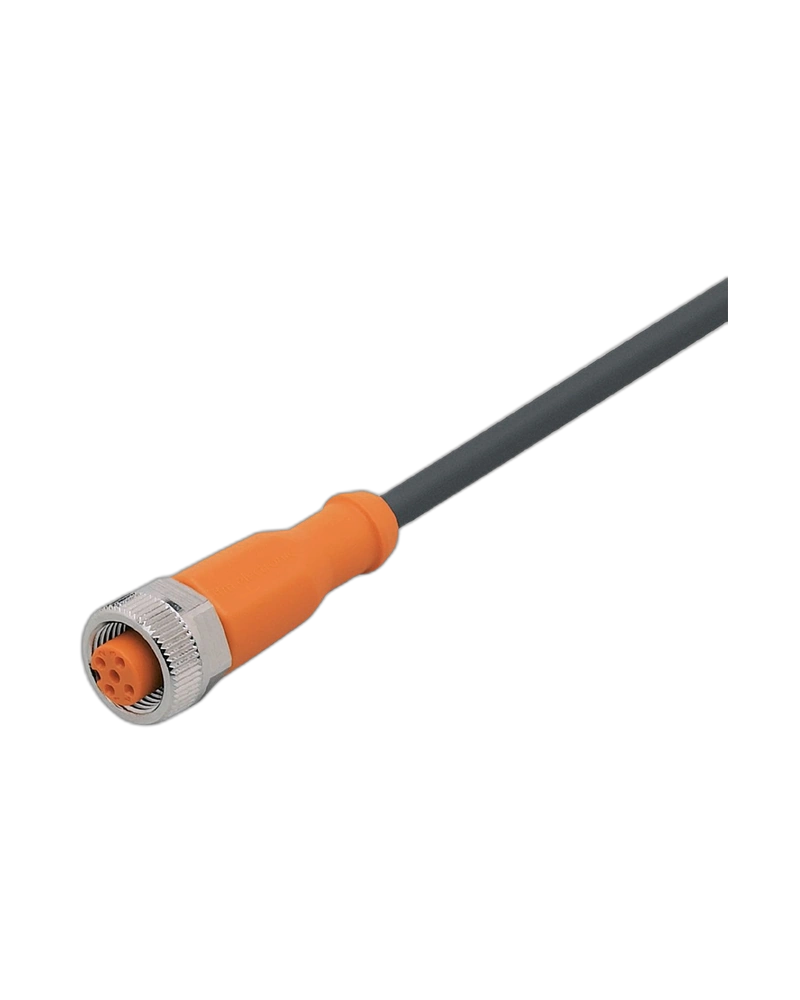

EVC002 is a 5 m M12 connecting cable designed for reliable industrial sensor and automation connections. It features a straight A-coded M12 socket, gold-plated contacts and a flexible halogen-free PUR cable. The cable is resistant to oils, coolants, vibration and mechanical stress. It provides extended connection distance while maintaining the same robust EVC connection design.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m cable length provides additional installation flexibility compared with shorter sensor cables. It is suitable when sensors and control equipment are positioned farther apart. The cable can be routed through industrial machinery and automation systems.
The connector uses a straight A-coded M12 interface with four gold-plated contacts. The nickel-plated brass locking nut provides secure mechanical coupling. FKM sealing supports reliable protection against environmental contamination.
The PUR cable is suitable for moving applications and drag-chain installation. It supports a minimum bending radius of 10 times the cable diameter and more than 5 million bending cycles under specified conditions. Protection ratings extend up to IP69K.
5 m cable
4 × 0.34 mm² conductors
Straight M12 connector
A-coded
Gold-plated contacts
PUR halogen-free cable
FKM seal
Oil and coolant resistance
Drag-chain compatible
IP69K protection
Factory automation
Industrial sensors
Machine tools
Coolant environments
Sensor wiring
Machine automation
Control panels
Moving cable installations
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Order Number | EVC002 |
| Model | ADOGH040MSS0005H04 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | 1 × M12 |
| Design | Straight |
| Coding | A |
| Contacts | 4, gold-plated |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A max. |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Weight | 156.2 g |
| Pack Quantity | 1 pc. |
