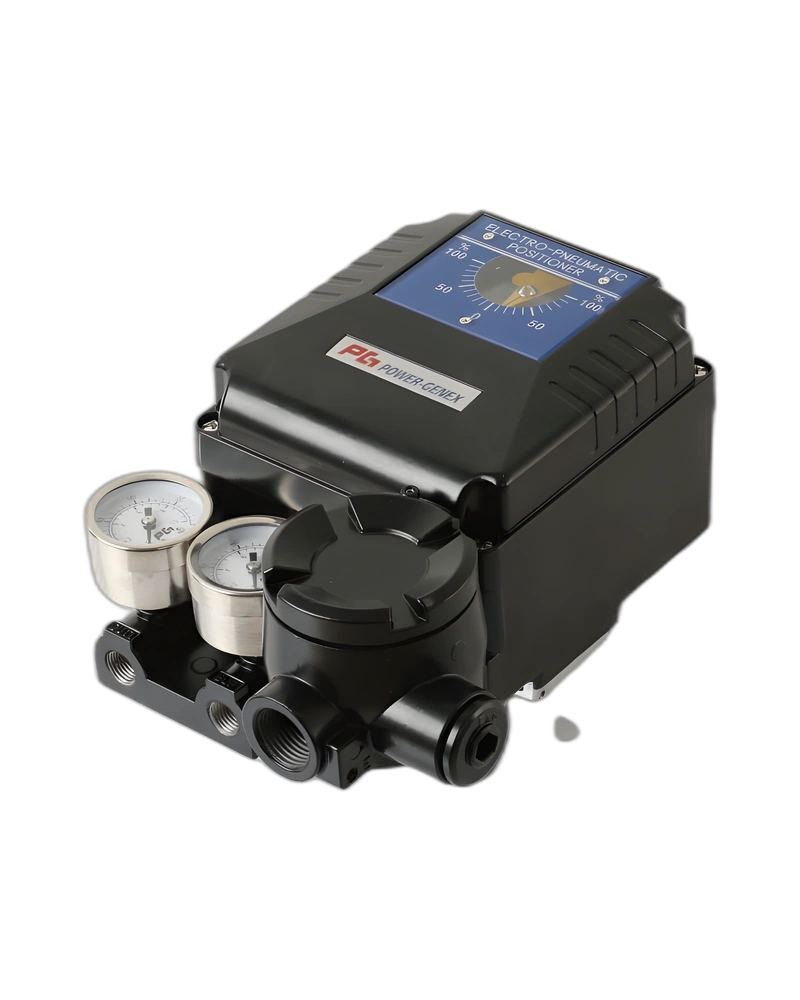

Product Overview EPR (Rotary Type) is designed for dependable industrial valve automation, with the control, pneumatic, feedback and protection characteristics required by its product family. The configuration supports practical installation and commissioning through defined interfaces and application-specific options. The technical values below are specific to this product family.
Technical Specifications 4–20 mA DC; 235 ± 15 Ω; max air supply 7.0 bar; 60–100° operating angle; Rc/NPT 1/4 pneumatic; PF/G/NPT 1/2 electrical; -20 to +70 °C; IP66 and hazardous-area executions; linearity ±1.0% single / ±1.5% double; sensitivity ±0.5%; hysteresis ±1.0%; repeatability ±0.5%; 5 L/min consumption; 80 L/min capacity; aluminum die-cast; approx. 3.5 kg with terminal box.
Key Features Product-specific control and pneumatic configuration Defined feedback and mounting interfaces Industrial-duty construction Configuration-dependent protection and options Application and Integration EPR (Rotary Type) is intended for industrial valve-control systems where compatible signal, air supply, actuator travel or angle and environmental protection are important to reliable operation.
The technical configuration for this product is defined by the following product-specific information: 4–20 mA DC 235 ± 15 Ω max air supply 7.0 bar 60–100° operating angle Rc/NPT 1/4 pneumatic PF/G/NPT 1/2 electrical -20 to +70 °C IP66 and hazardous-area executions linearity ±1.0% single / ±1.5% double sensitivity ±0.5% hysteresis ±1.0% repeatability ±0.5% 5 L/min consumption 80 L/min capacity aluminum die-cast approx. 3.5 kg with terminal box.
Product-specific Power-Genex technical configuration Defined pneumatic and control interfaces Industrial-duty construction Configuration-dependent mounting and feedback options Application-focused valve automation
EPR (Rotary Type) is intended for integration into industrial process-control applications where dependable positioning, regulation, indication, air preparation, switching, or signal transmission is required, depending on the product function. Its documented technical characteristics provide the basis for selecting the appropriate configuration, connecting the product to the associated control system, and matching the device to the intended valve or pneumatic application.
Selection should be based on the exact product configuration, required input and output signals, operating medium, valve or actuator arrangement, environmental conditions, and the technical limits specified for the product. The detailed specification and feature information above should be used when matching this item with the surrounding control equipment.
| Feature | Specification |
|---|---|
| 4–20 mA DC | 4–20 mA DC |
| 235 ± 15 | 235 ± 15 Ω |
| Maximum Air Supply | 7.0 bar |
| 60–100° operating angle | 60–100° operating angle |
| Connection | Rc/NPT 1/4 pneumatic |
| Electrical Connection | PF/G/NPT 1/2 electrical |
| -20 to +70 | -20 to +70 °C |
| Ingress Protection | IP66 |
| Linearity | ±1.0% single / ±1.5% double |
| Sensitivity | ±0.5% |
| Hysteresis | ±1.0% |
| Repeatability | ±0.5% |
| Air Consumption | 5 L/min consumption |
| Flow Capacity | 80 L/min capacity |
| aluminum die-cast | aluminum die-cast |
| Weight | approx. 3.5 kg with terminal box. |
