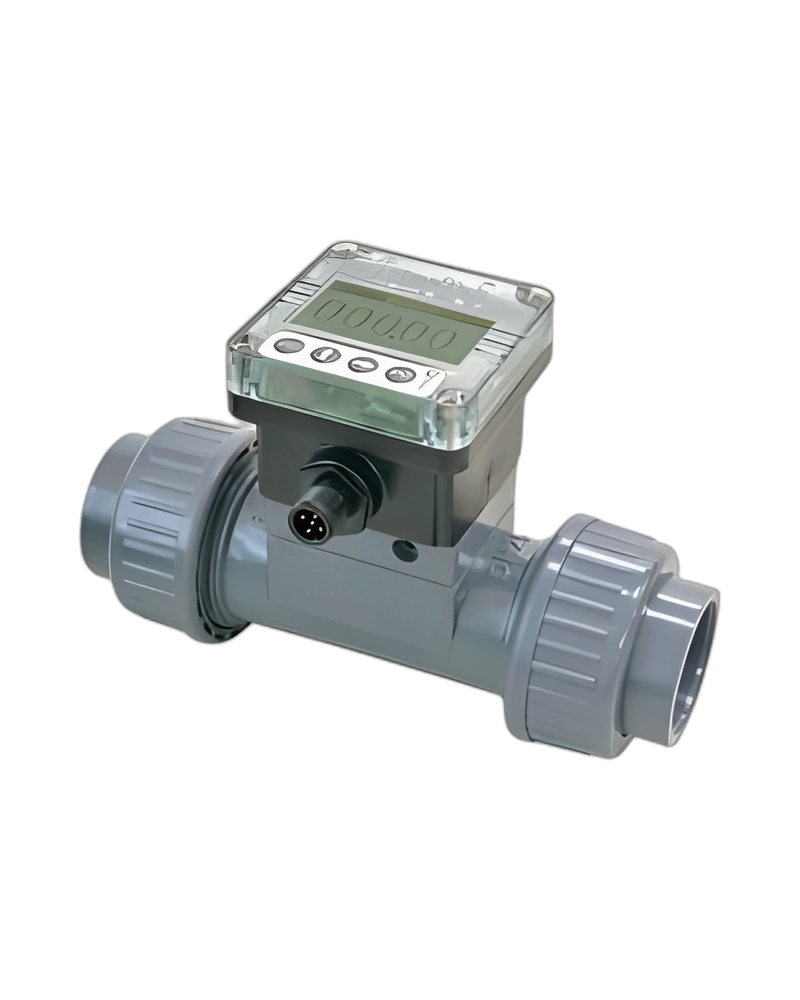

EPR Paddle Wheel Flow Meter is a FINETEK EPR Paddle Wheel Flow Meter configuration identified in the catalog by its family configuration. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual EPR Paddle Wheel Flow Meter identity rather than a generic description of the FINETEK range.
Paddle-wheel velocity measurement in which rotating blades generate a flow-dependent signal that is converted into flow using a calibrated k-factor. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.
The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.
The EPR Paddle Wheel Flow Meter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.
FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.
The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is EPR Paddle Wheel Flow Meter.
This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.
The EPR Paddle Wheel Flow Meter configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.
| Specification | Details |
|---|---|
| Product name | EPR Paddle Wheel Flow Meter |
| Model / variant | As identified in product name |
| Order code / configuration | Not separately stated in product name |
| Flow range | 0.3–10 m/s |
| K-factor accuracy | ±3% under standard conditions |
| Supply | 12–36 VDC |
| Analog output | 4–20 mA |
| Extended analog test | 4–21.6 mA |
| Frequency output | 0–300 Hz |
| Display | 128 × 64 LCM |
| Communication | RS485 Modbus |
| Pipe test range | 10–300 mm sensor test equipment range |
| Upstream installation guidance | 15D straight section recommended in cited source |
