Product Overview

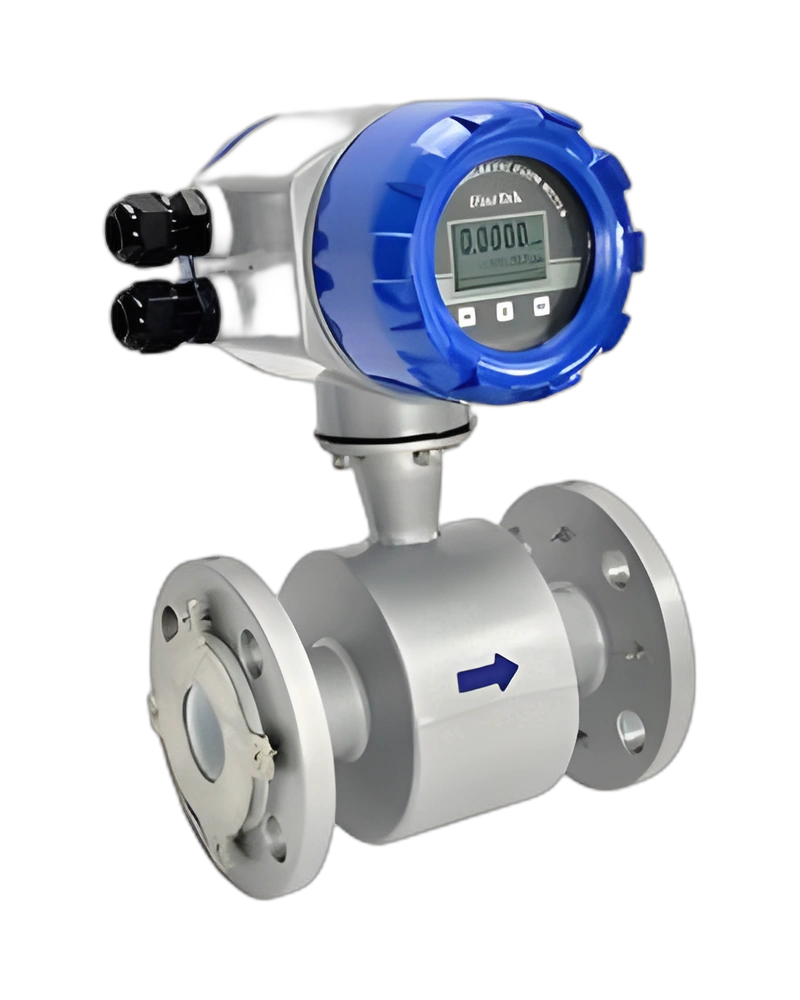

EPD Electromagnetic Flow Meter - EPDAM1P-MJ03150001 is a FINETEK EPD Electromagnetic Flow Meter configuration identified in the catalog by EPDAM1P and order code MJ03150001. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual EPDAM1P identity rather than a generic description of the FINETEK range.

Faraday-law electromagnetic flow measurement for conductive liquids, with no moving parts in the measuring tube. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Accuracy: 0.3%, 0.5% or 1.0% depending configuration
• Flow range: 0.1–10 m/s
• Current output: 4–20 mA / 700 Ω
• Pulse output: NPN, 200 mA / 32 VDC max.
• Alarm output: NPN, 50 mA / 32 VDC max.
• Communication: RS485 Modbus
• Straight pipe: 5D upstream / 2D downstream
• Fluid conductivity: Greater than 5 µS/cm on EPD30 standard 15/25-pipe-diameter configurations
• Medium temperature: -20 to 150 °C with PFA lining in the cited EPD30 document
• Ambient temperature: -40 to 70 °C

Design and Features

The EPD Electromagnetic Flow Meter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Measurement largely independent of density, viscosity, temperature and pressure
• No moving parts
• Self-diagnostics
• Conductive liquids and low-solids fluids
• Multiple liners, electrodes and pipe sizes

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Chemical processing
• Power
• Oil and gas
• Metals and mining
• Water treatment
• Industrial conductive-liquid service

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is EPD Electromagnetic Flow Meter - EPDAM1P-MJ03150001 with order code MJ03150001.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The EPD Electromagnetic Flow Meter - EPDAM1P-MJ03150001 configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Accuracy: 0.3%, 0.5% or 1.0% depending configuration
• Flow range: 0.1–10 m/s
• Current output: 4–20 mA / 700 Ω
• Pulse output: NPN, 200 mA / 32 VDC max.
• Alarm output: NPN, 50 mA / 32 VDC max.
• Communication: RS485 Modbus
• Straight pipe: 5D upstream / 2D downstream
• Fluid conductivity: Greater than 5 µS/cm on EPD30 standard 15/25-pipe-diameter configurations
• Medium temperature: -20 to 150 °C with PFA lining in the cited EPD30 document
• Ambient temperature: -40 to 70 °C

Product Identification

Model: EPDAM1P-MJ03150001. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
