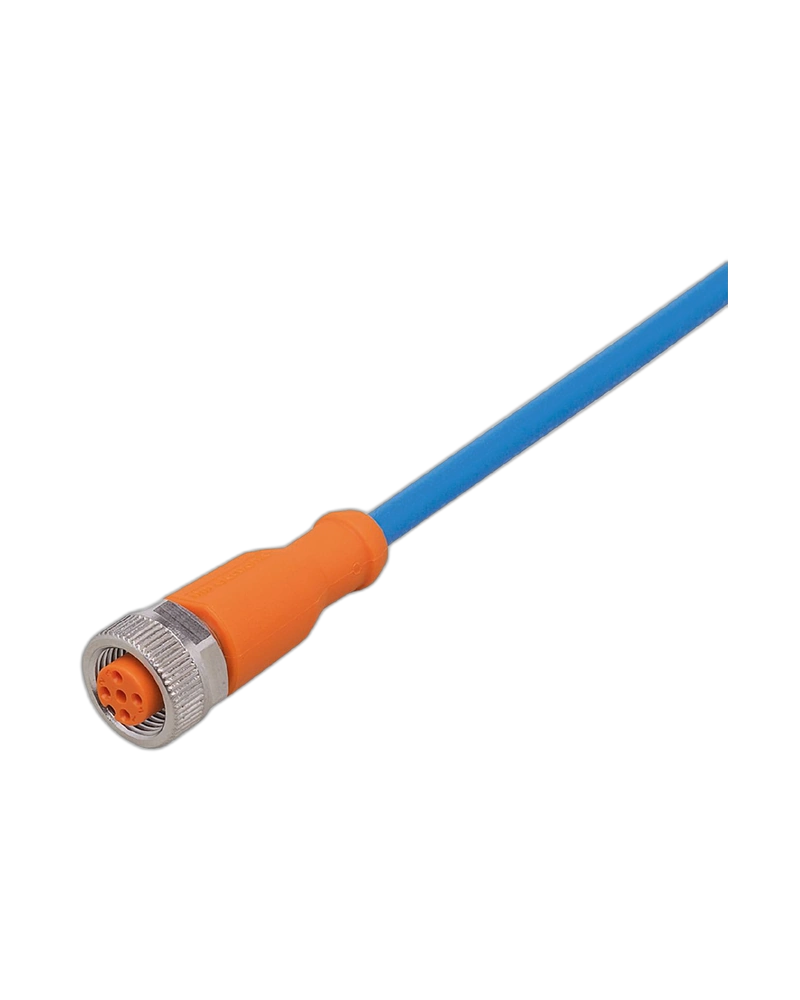

ENC16A is a 50 m M12 connecting cable designed for applications requiring intrinsically safe electrical connections. It features a 5-pole straight M12 socket, gold-plated contacts and a halogen-free PUR cable. The cable is suitable for hazardous-area applications with defined ATEX and IECEx classifications. Its robust construction provides reliable connection performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
ENC16A is designed for electrical connection applications where explosion protection is required. Its Ex ia classification supports use in specified hazardous gas and dust environments. The cable is suitable for instrumentation and automation equipment installed in appropriately classified areas.
The product uses a 50 m blue PUR cable with five 0.34 mm² conductors. The extended cable length allows remote sensor and instrumentation connections without intermediate cable extensions. The halogen-free construction supports demanding industrial installation requirements.
ENC16A uses a straight 5-pin M12 connector with A coding and gold-plated contacts. The connector incorporates a TPU orange body, nickel-plated brass locking nut and FKM sealing. Outside hazardous areas, the cable provides IP68/IP69K protection according to the specified conditions.
50 m cable length
5-pole M12 connector
Straight connector design
A-coded M12 connection
Gold-plated contacts
PUR halogen-free cable
TPU orange connector body
FKM sealing
ATEX certified
IECEx certified
Intrinsically safe Ex ia design
Hazardous-area instrumentation
Process automation
Explosion-protected sensor wiring
Industrial measurement systems
Chemical processing equipment
Oil and gas instrumentation
Dust and gas hazardous zones
Remote sensor connections
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Order Number | ENC16A |
| Product Code | ADOGH050MSN0050H05/1G/1D |
| Cable Length | 50 m |
| Cable Material | PUR |
| Cable Colour | Blue |
| Cable Diameter | 4.9 mm |
| Conductors | 5 × 0.34 mm² |
| Connector | 1 × M12 |
| Connector Design | Straight |
| Coding | A |
| Contacts | 5, gold-plated |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | < 30 V DC |
| Protection | IP67; IP68/IP69K outside hazardous area |
| ATEX | BVS 11 ATEX E 009 X |
| IECEx | BVS 11.0002 X |
| Internal Capacitance | 5 nF max. |
| Internal Inductance | 100 µH max. |
| Ambient Temperature | -25...90 °C |
| Pack Quantity | 1 pc. |
