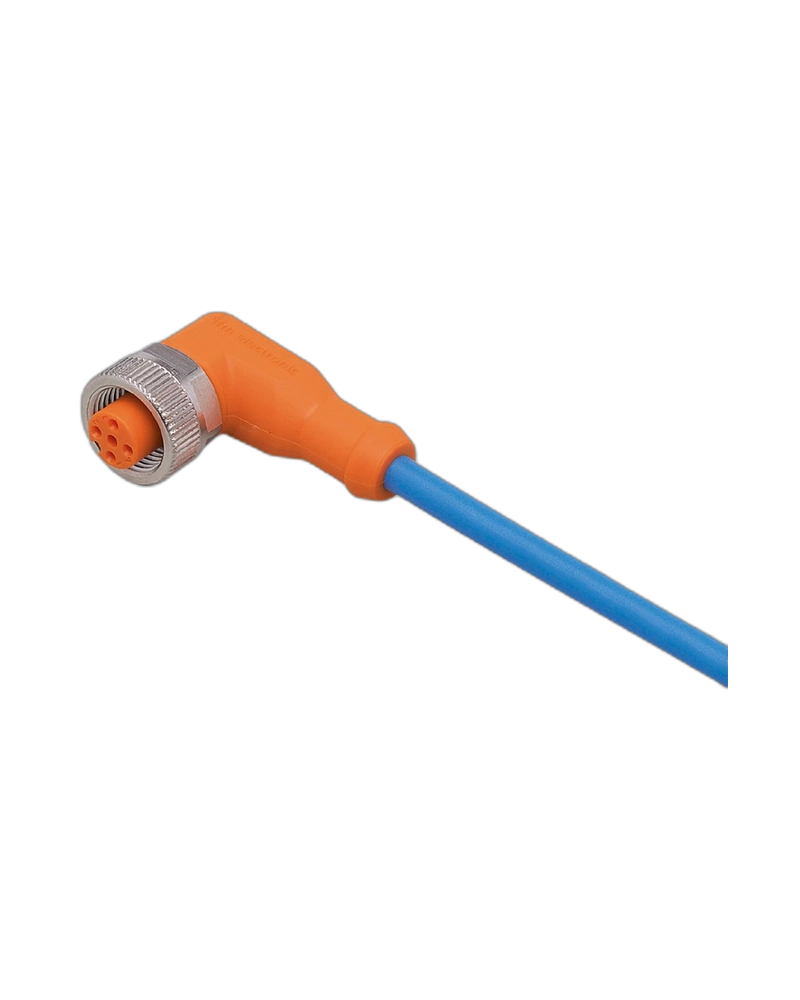

The ECN15A is a 60 m IFM connecting cable with socket designed for long-distance industrial sensor and automation connections. It features an angled A-coded M12 connector with 5 gold-plated contacts and a halogen-free PUR cable. Its robust construction provides reliable connectivity for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN15A provides an extended-length, pre-configured connection solution for compatible industrial sensors and automation equipment. The M12 socket simplifies installation and connection management.
Connection Design
The angled M12 connector uses A coding and 5 gold-plated contacts. The locking mechanism provides a secure connection for industrial applications.
Long-Distance Cable Performance
With a 60 m PUR cable, ECN15A is suited to installations requiring extended cable reach. The 5 × 0.34 mm² cable construction provides reliable electrical connectivity.
Protection & Safety
The halogen-free cable and robust connector construction are designed for demanding industrial conditions. The product is intended for hazardous-area applications according to its ATEX/IECEx certification and operating conditions.
KEY FEATURES
60 m cable length
Angled M12 connector
A-coded connector
5 gold-plated contacts
PUR cable
Halogen-free construction
5 × 0.34 mm² cable
TPU connector body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approved design
APPLICATIONS
Industrial automation systems
Long-distance sensor connection
Process control
Machine automation
Hazardous-area instrumentation
Industrial control installations
| Specification | Details |
|---|---|
| Product Code | ECN15A |
| Model | ADOAH050MSN0060H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 60 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU / polyurethane |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
