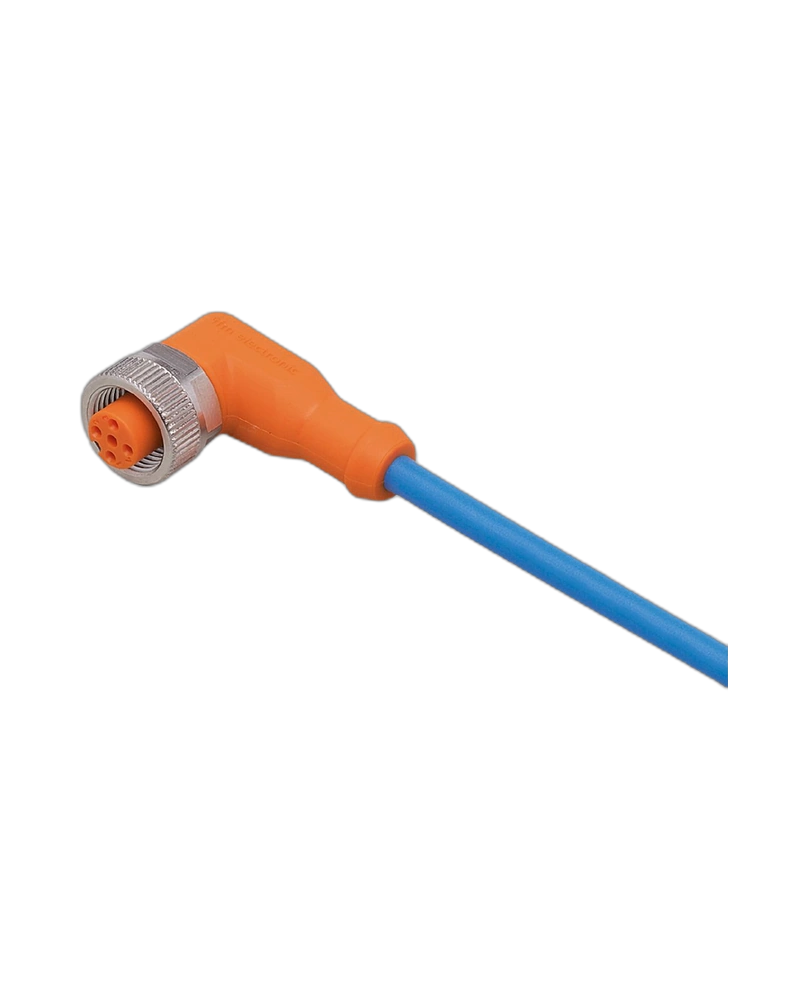

The ECN14A is a 50 m IFM connecting cable with socket designed for extended industrial sensor and automation installations. It features an angled A-coded M12 connector with 5 gold-plated contacts and a halogen-free PUR cable. The robust construction supports reliable connectivity over long cable runs
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN14A is designed for applications requiring a long cable connection between sensors and automation equipment. Its pre-assembled connector simplifies installation.
Connection Design
The angled M12 connector features A coding and 5 gold-plated contacts. The locking mechanism helps provide a stable and secure connection.
Cable Construction
The 50 m PUR cable provides extended installation reach while maintaining a robust, halogen-free construction. Its 5 × 0.34 mm² conductors are suitable for industrial sensor connectivity.
Industrial Reliability
The connector uses a TPU moulded body, nickel-plated brass locking nut and FKM sealing. IP67 protection and hazardous-area suitability support dependable operation in demanding environments.
KEY FEATURES
50 m cable length
Angled M12 connector
A-coded connector
5 gold-plated contacts
PUR cable
Halogen-free construction
5 × 0.34 mm² conductors
TPU connector body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approved design
APPLICATIONS
Industrial automation
Extended sensor wiring
Process control systems
Machine automation
Hazardous-area applications
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | ECN14A |
| Model | ADOAH050MSN0050H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 50 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
