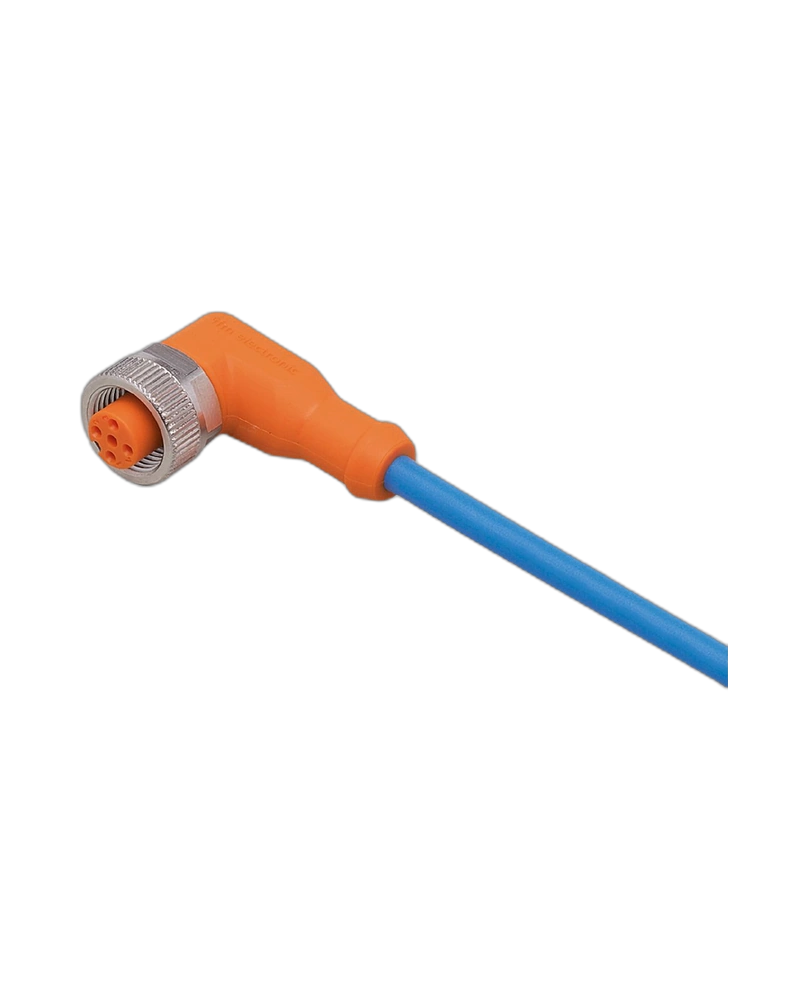

The ECN13A is an IFM 25 m connecting cable with socket designed for extended sensor and automation wiring. It features an angled A-coded M12 connector with 5 gold-plated contacts and a halogen-free PUR cable. Its robust construction and hazardous-area approvals support reliable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN13A provides an extended-length connection solution for sensors and automation equipment. The pre-assembled M12 socket simplifies installation and helps maintain consistent connection quality.
Connection Design
The angled M12 connector uses A coding and 5 gold-plated contacts. The locking mechanism helps maintain a secure connection during operation.
Long-Distance Connection
The 25 m PUR cable provides extended reach for installations where sensors and control equipment are positioned farther apart. The 5 × 0.34 mm² cable construction supports dependable electrical connections.
Safety & Industrial Performance
The cable is halogen-free and designed for hazardous-area applications. IP67 protection and robust connector materials support reliable performance in demanding industrial environments.
KEY FEATURES
25 m cable length
Angled M12 connector
A-coded connector
5 gold-plated contacts
PUR cable
Halogen-free construction
5 × 0.34 mm² cable
TPU connector body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approved
APPLICATIONS
Industrial automation systems
Long-distance sensor connections
Process instrumentation
Machine control systems
Hazardous-area installations
Industrial electrical wiring
| Specification | Details |
|---|---|
| Product Code | ECN13A |
| Model | ADOAH050MSN0025H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 25 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
