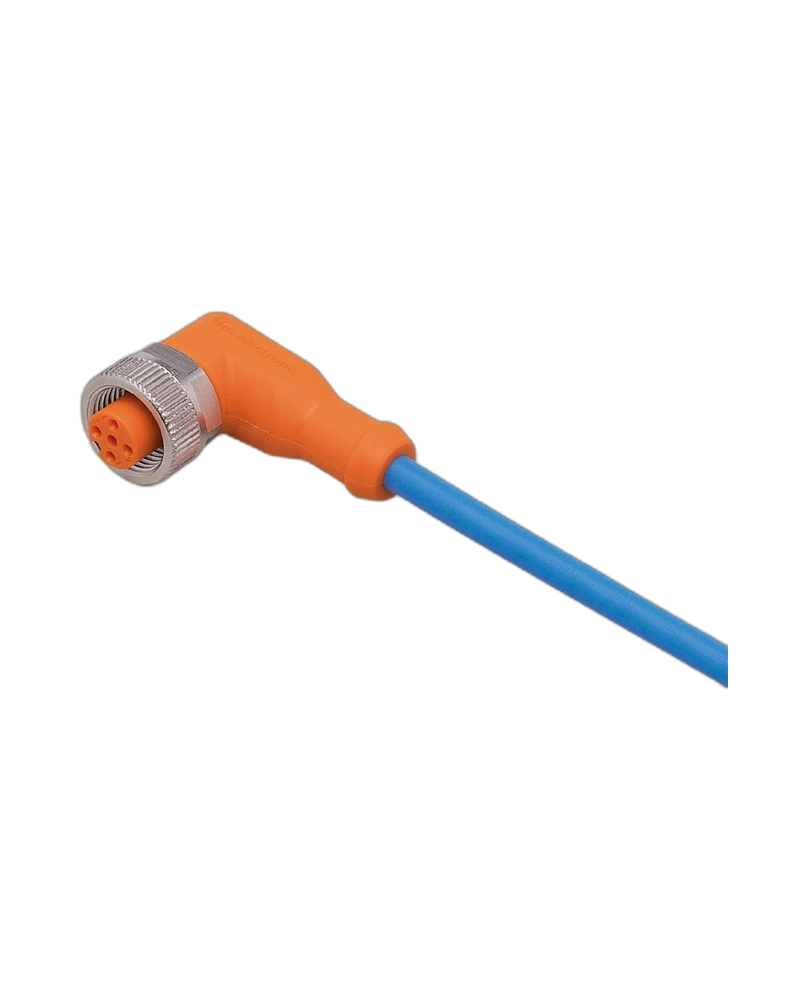

The ECN12A is a 10 m IFM connecting cable with socket for reliable industrial sensor and automation connections. It features an angled A-coded M12 connector with 5 gold-plated contacts and a halogen-free PUR cable. The robust construction supports dependable connectivity in demanding and hazardous-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN12A provides a ready-to-use connection between compatible sensors and automation equipment. Its angled connector design allows convenient cable routing in industrial machinery.
Connection Design
The M12 connector uses A coding and 5 gold-plated contacts. A secure locking mechanism helps maintain stable electrical connectivity.
Cable Construction
The 10 m PUR cable is halogen-free and uses 5 × 0.34 mm² conductors. This configuration is suitable for longer-distance sensor connections.
Industrial Protection
The cable assembly provides IP67 protection and is designed for hazardous-area applications. TPU, nickel-plated brass and FKM components provide robust mechanical and sealing performance.
KEY FEATURES
10 m cable length
Angled M12 connector
A-coded connection
5 gold-plated contacts
PUR cable
Halogen-free construction
5 × 0.34 mm² cable
TPU connector body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approved
APPLICATIONS
Industrial automation
Sensor connection
Process control
Machine wiring
Hazardous-area instrumentation
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | ECN12A |
| Model | ADOAH050MSN0010H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 10 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
