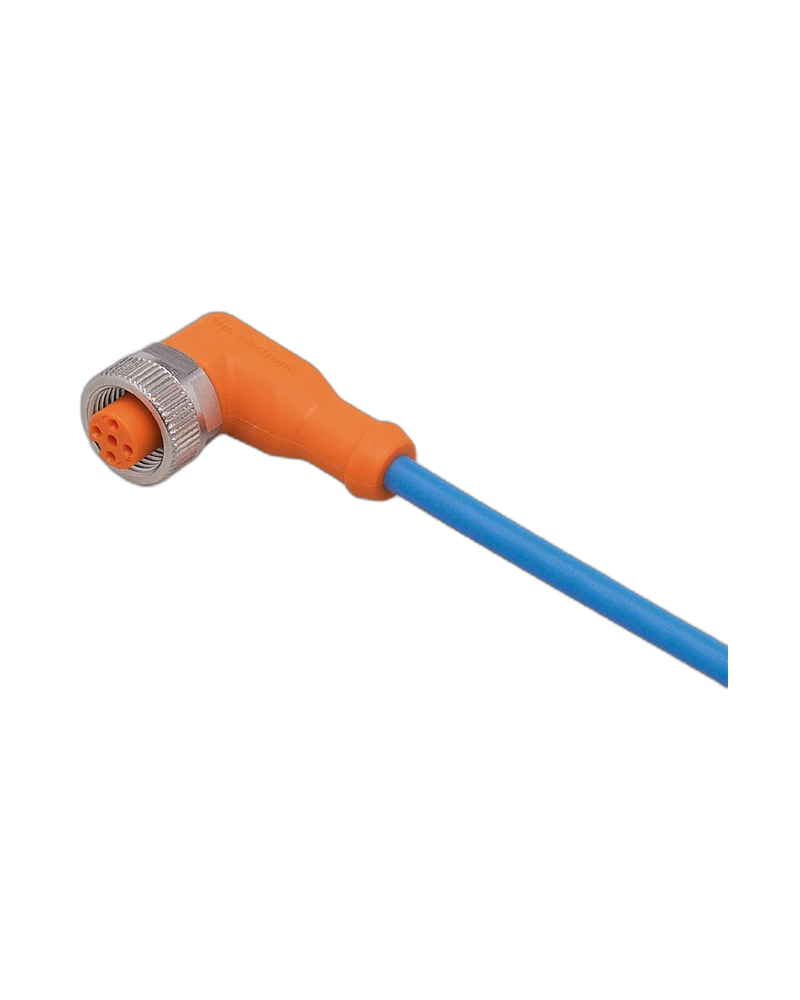

The ECN11A is an IFM connecting cable with socket designed for reliable industrial sensor connections. It provides a 5 m PUR cable with an angled A-coded M12 connector and 5 gold-plated contacts. Its halogen-free design, robust sealing and hazardous-area approvals make it suitable for demanding automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN11A offers a pre-configured connection solution for industrial sensors and automation equipment. The angled M12 connector supports convenient cable routing in compact installations.
Connection Design
The connector uses M12 A coding and 5 gold-plated contacts. The locking mechanism provides a secure connection and supports reliable operation under vibration.
Cable Performance
The 5 m PUR cable is halogen-free and contains 5 × 0.34 mm² conductors. It is suitable for reliable signal and electrical connections in industrial environments.
Safety & Protection
The connector uses TPU, nickel-plated brass and FKM sealing materials. The cable is designed for hazardous-area applications and provides IP67 protection.
KEY FEATURES
5 m cable length
Angled M12 connector
A-coded connector
5 gold-plated contacts
PUR cable
Halogen-free cable
5 × 0.34 mm² conductors
TPU moulded body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approvals
APPLICATIONS
Industrial automation systems
Sensor connections
Machine control equipment
Process automation
Hazardous-area installations
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | ECN11A |
| Model | ADOAH050MSN0005H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 5 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
