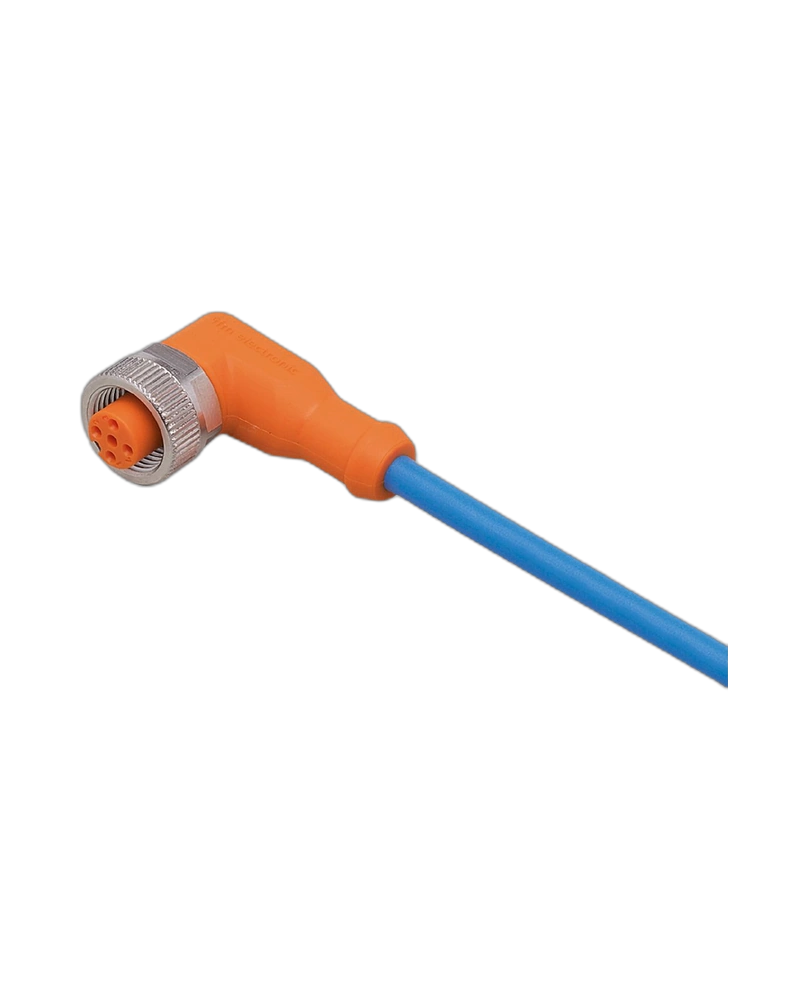

The ECN10A is an IFM connecting cable with socket for reliable industrial sensor and automation wiring. It features a 2 m PUR cable with an angled A-coded M12 connector and 5 gold-plated contacts. The robust construction provides secure connections in demanding industrial and hazardous-area environments
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN10A provides a ready-to-install cable assembly for connecting compatible sensors and automation devices. Its angled connector design is useful where cable routing space is limited.
Connection Design
The cable features an angled M12 A-coded connector with 5 gold-plated contacts. The locking system provides a secure and stable connection.
Cable Construction
The 2 m cable is manufactured using halogen-free PUR construction with 5 × 0.34 mm² conductors. This design supports reliable industrial signal transmission.
Protection & Reliability
TPU connector construction, nickel-plated brass locking and FKM sealing provide a robust connection. The cable is designed for hazardous-area use according to its certification.
KEY FEATURES
2 m cable length
Angled M12 connector
A-coded connector
5 gold-plated contacts
PUR cable
Halogen-free construction
5 × 0.34 mm² cable
TPU connector body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approved design
APPLICATIONS
Industrial automation
Sensor connections
Machine wiring
Process control
Hazardous-area systems
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | ECN10A |
| Model | ADOAH050MSN0002H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 2 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
