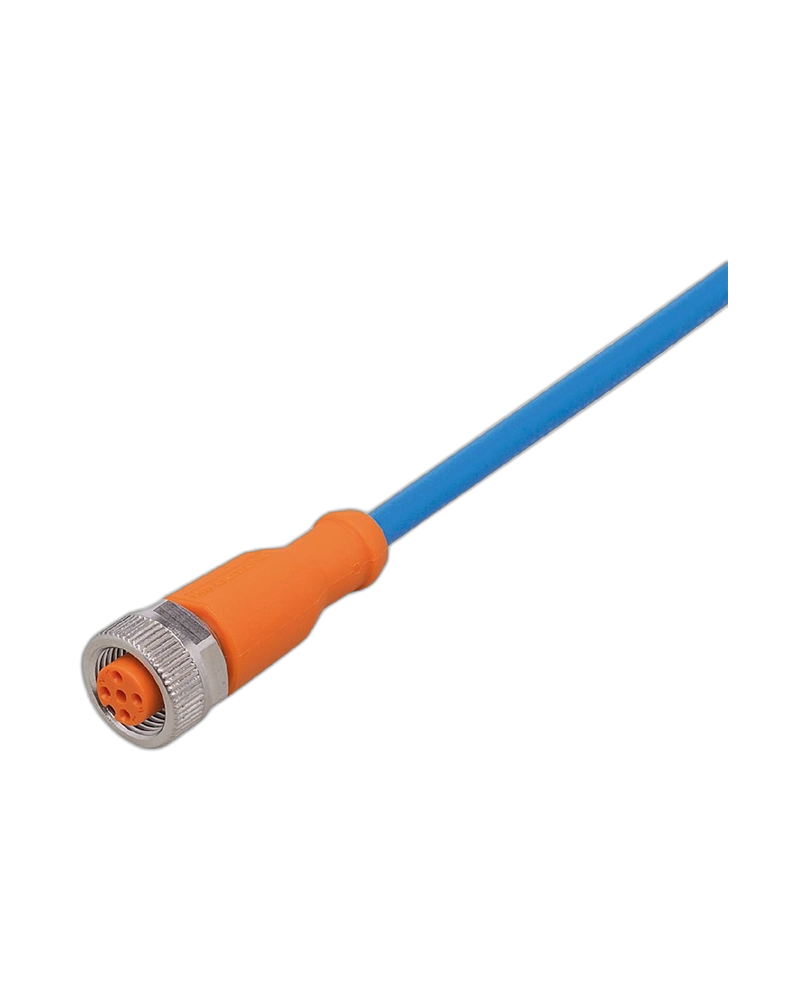

The ECN09A is a 10 m IFM connecting cable with socket designed for industrial sensor and automation connections. It features a straight A-coded M12 connector with 5 gold-plated contacts and a halogen-free PUR cable. The robust construction provides reliable connectivity for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN09A offers a ready-made connection solution for compatible industrial sensors and control equipment. Its pre-configured M12 connector helps simplify field wiring.
Connection Design
The straight M12 connector uses A coding and 5 gold-plated contacts. The locking mechanism provides a secure connection during machine operation.
Cable Construction
The 10 m PUR cable is halogen-free and suitable for industrial cable routing. The 5 × 0.34 mm² cable construction supports reliable electrical transmission.
Industrial Protection
The connector assembly is designed for demanding industrial environments and hazardous-area applications. IP67 protection helps protect the connection against dust and water ingress.
KEY FEATURES
10 m cable length
Straight M12 connector
A-coded connector
5 gold-plated contacts
PUR cable
Halogen-free construction
5 × 0.34 mm² cable
TPU connector body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
Suitable for hazardous-area applications
APPLICATIONS
Industrial automation systems
Sensor wiring
Machine control
Process automation
Hazardous-area instrumentation
Control cabinet connections
| Specification | Details |
|---|---|
| Product Code | ECN09A |
| Model | ADOGH050MSN0010H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 10 m |
| Connector | M12 straight |
| Coding | A-coded |
| Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Material | PUR |
| Cable Construction | Halogen-free |
| Cable Size | 5 × 0.34 mm² |
| Connector Body | TPU |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
