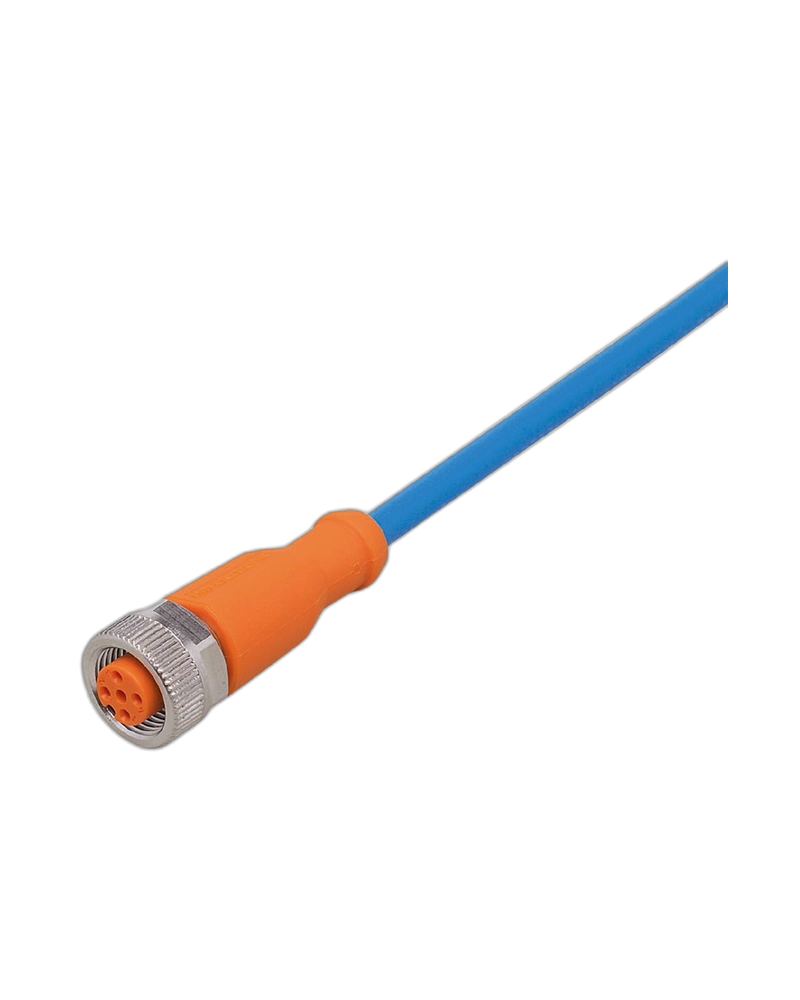

The ECN08A is an IFM connecting cable with socket designed for reliable industrial sensor connections. It features a 5 m PUR cable with a straight, A-coded M12 connector and 5 gold-plated contacts. The halogen-free construction and robust connector design support dependable performance in industrial and hazardous-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN08A provides a pre-assembled connection between compatible industrial sensors and control systems. Its M12 connector simplifies installation and supports secure electrical connectivity.
Connection Design
The cable is equipped with a straight M12 A-coded connector with 5 gold-plated contacts. The connector incorporates a robust locking mechanism for reliable connections.
Cable Performance
The 5 m PUR cable is halogen-free and designed for industrial installations. Its 5 × 0.34 mm² construction supports dependable signal transmission.
Protection & Reliability
The connector uses a TPU moulded body, nickel-plated brass locking nut and FKM sealing. The design provides IP67 protection and is suitable for hazardous-area applications under the specified approval conditions.
KEY FEATURES
5 m cable length
Straight M12 connector
A-coded connection
5 gold-plated contacts
PUR cable construction
Halogen-free cable
5 × 0.34 mm² conductors
TPU moulded body
Nickel-plated brass locking nut
FKM sealing
IP67 protection
ATEX and IECEx approved design
APPLICATIONS
Industrial automation
Sensor connectivity
Machine automation
Process control
Hazardous-area equipment
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | ECN08A |
| Model | ADOGH050MSN0005H05/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 5 m |
| Connector | M12 straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable | Halogen-free |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP67 |
| Operating Voltage | < 30 V DC |
| Approvals | ATEX, IECEx |
