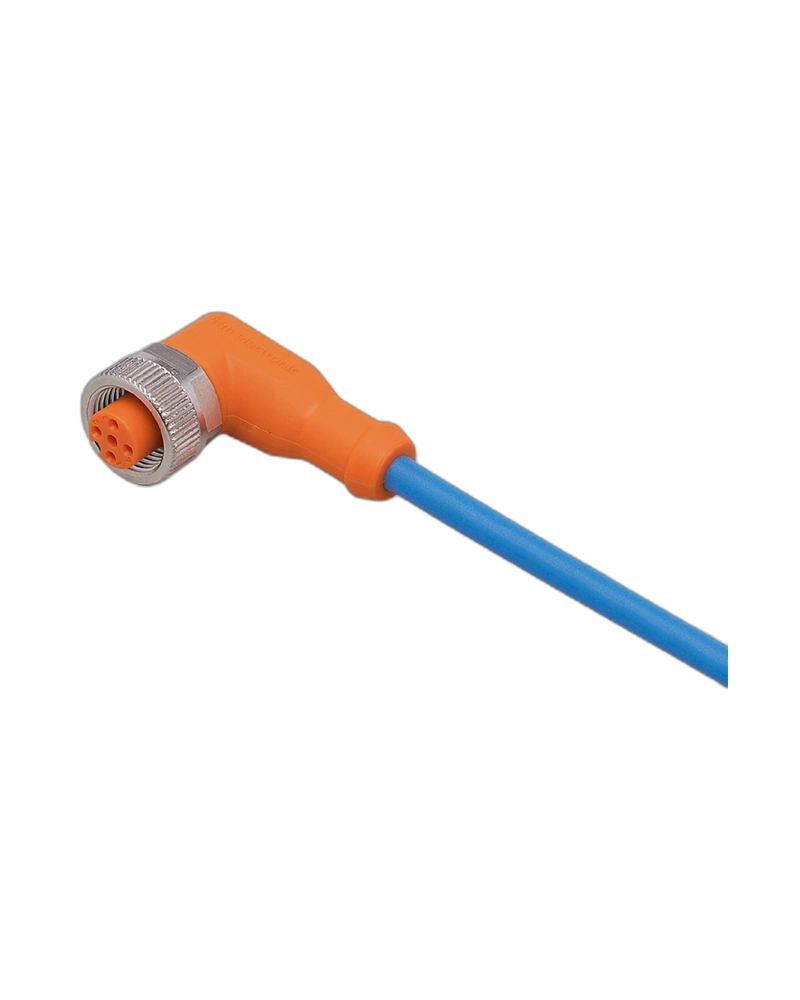

The ECN06A is an IFM connecting cable with socket designed for reliable sensor and automation connections in hazardous-area applications. It features a 10 m PUR cable with a 4-pin M12 angled connector. Gold-plated contacts, halogen-free construction and robust sealing provide dependable electrical connectivity in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
ECN06A provides a pre-assembled connection solution for industrial sensors and automation equipment. Its M12 socket design simplifies installation and helps provide a secure connection.
Connection Design
The cable uses an angled M12 connector with A coding and 4 gold-plated contacts. The robust connector construction supports reliable connections in industrial installations.
Industrial Performance
The PUR cable is halogen-free and designed for demanding operating conditions. The connector uses TPU material, a nickel-plated brass locking nut and FKM sealing.
Hazardous Area Suitability
The cable is designed for hazardous-area applications and carries ATEX and IECEx approvals. Its IP67 protection supports reliable operation where protection against dust and moisture is required.
KEY FEATURES
10 m cable length
Angled M12 connector
4 gold-plated contacts
A-coded connector
PUR halogen-free cable
4 × 0.34 mm² cable construction
TPU moulded connector body
Nickel-plated brass locking nut
FKM sealing
ATEX and IECEx approved
IP67 protection
Suitable for hazardous-area applications
APPLICATIONS
Industrial automation systems
Sensor connection
Hazardous-area instrumentation
Machine control systems
Process automation
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | ECN06A |
| Model | ADOAH040MSN0010H04/1G/1D |
| Product Type | Connecting cable with socket |
| Cable Length | 10 m |
| Connector | M12 angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Cable Size | 4 × 0.34 mm² |
| Connector Body | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | < 30 V DC |
| Protection | IP67 |
| Ambient Temperature | -25 to +85 °C |
| Approvals | ATEX, IECEx |
