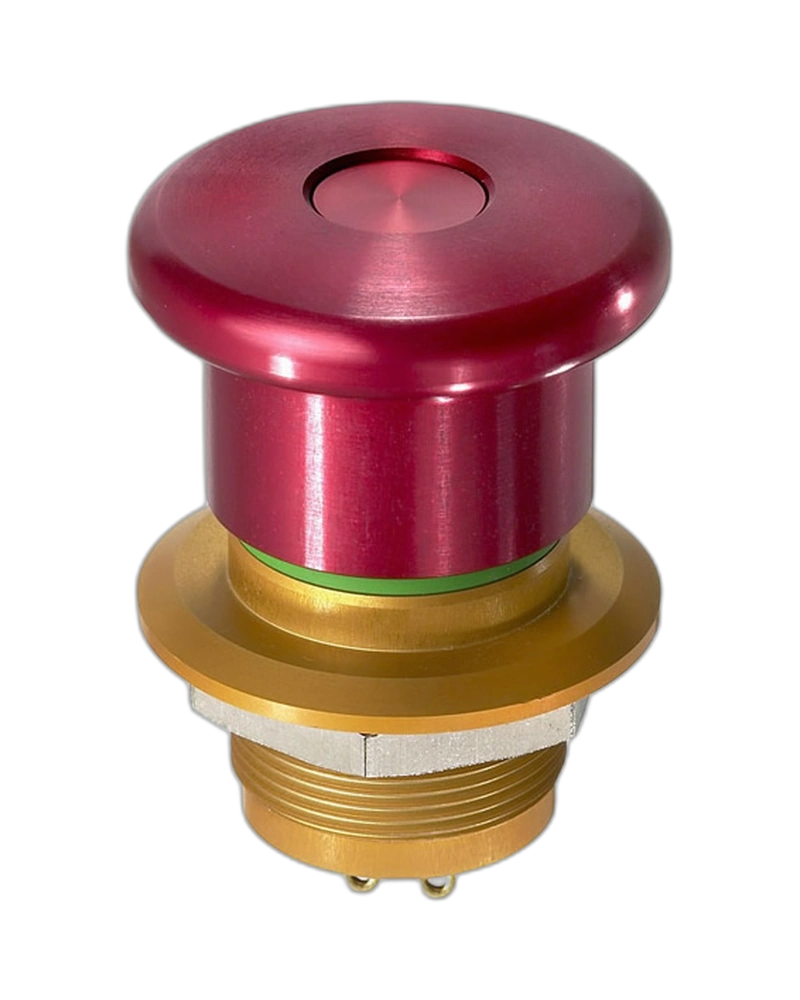

The APEM Emergency Stops Switches ES3S51653 is a Switches and Pushbutton with documented product-specific characteristics including Operating force: 2 pole models : Push : 30 N ± 7 N; pull : 25 N ± 5 N 3 pole models : Push : 45 N ± 7 N; pull : 25 N ± 5 N; Electrical Functions: 1 NC/NO, 2 NC; Number Of Poles: Three Poles,Actuator Colours:Red Anodised.
The Emergency Stops Switches ES3S51653 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Sealing | IP65, IP67 and IP69K according to IEC 60529 and DIN 40050 Salt spray : 96 hours according to IEC 68-2-11 Vibrations : 10-500 Hz - 10 g according to IEC 68-2-6 Shock resistance : 50 g according to IEC 68-2-27 Robustness ( |
| Panel thickness | 6 mm (.236) max. Low level or mechanical life : 100,000 cycles Travel to lock : 2.20 mm ± 0.3 mm |
| Total travel | 4.20 mm ± 0.3 mm |
| Torque | 5 Nm min. - 14 Nm max. applied to nut |
| Operating temperature | -40 °C to +85 °C Compliant with EN 60947-5-1 |
| Feature | Specification |
|---|---|
| Electrical Functions | 1 NC/NO, 2 NC |
| Mounting | Solder Lug |
| Feature | Specification |
|---|---|
| Diameter | 345 mm |
The APEMEmergency Stops Switches ES3S51653 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65, IP67 and IP69K according to IEC 60529 and DIN 40050 Salt spray : 96 hours according to IEC 68-2-11 Vibrations : 10-500 Hz - 10 g according to IEC 68-2-6 Shock resistance : 50 g according to IEC 68-2-27 Robustness ( |
| Panel thickness | 6 mm (.236) max. Low level or mechanical life : 100,000 cycles Travel to lock : 2.20 mm ± 0.3 mm |
| Total travel | 4.20 mm ± 0.3 mm |
| Torque | 5 Nm min. - 14 Nm max. applied to nut |
| Operating temperature | -40 °C to +85 °C Compliant with EN 60947-5-1 |
| Feature | Specification |
|---|---|
| Electrical Functions | 1 NC/NO, 2 NC |
| Mounting | Solder Lug |
| Feature | Specification |
|---|---|
| Diameter | 345 mm |
