The APEM Emergency Stops Switches ES1S41653 is a robust double-pole switch designed for critical safety applications. With a 100,000-cycle life, IP65/67/69K sealing, and 2 NC electrical functions, it ensures reliable emergency stop performance in demanding industrial environments. This switch features a red anodised actuator and solder lug terminals for secure installation.

Product Overview

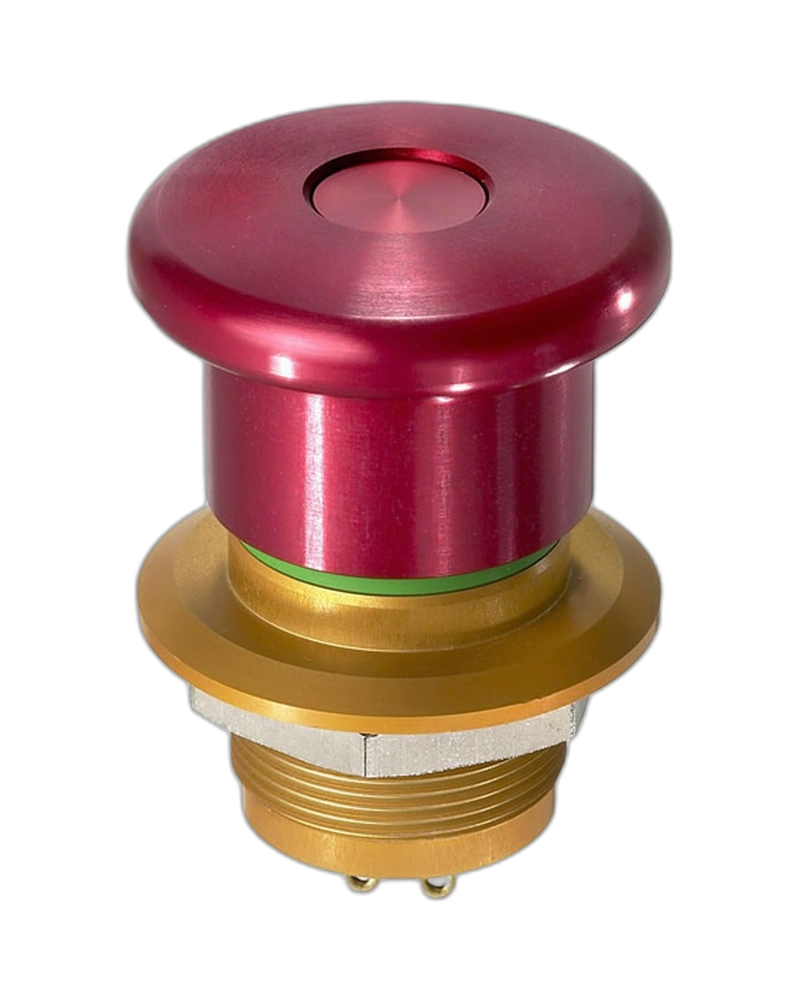

The APEM Emergency Stops Switches ES1S41653 is a high-reliability double-pole emergency stop switch engineered for critical safety applications in industrial machinery. Designed to withstand extreme conditions, this switch delivers 100,000 operational cycles with a 2.20 mm ± 0.3 mm travel to lock and 4.20 mm ± 0.3 mm total travel. Its robust construction includes IP65, IP67, and IP69K protection for harsh environments, ensuring reliable operation across temperatures from -40°C to +85°C. The switch features a red anodised actuator, solder lug terminals, and a green status indicator for clear visual feedback during operation.

Environmental Durability

The ES1S41653 is engineered to endure extreme environmental conditions. It meets IP65, IP67, and IP69K standards for protection against dust, water, and salt spray, with a 96-hour salt spray resistance and robust vibration and shock tolerance (10-500 Hz at 10 g). This ensures reliable performance in harsh industrial settings, from marine environments to high-vibration machinery.

Electrical Performance

With 2 NC electrical functions and a dielectric strength of 1,000 Vrms at 50 Hz, the switch provides safe and stable operation. The insulation resistance exceeds 1,000 MΩ, ensuring minimal electrical leakage even under demanding conditions. The switch operates within a temperature range of -40°C to +85°C, making it suitable for extreme climates.

Mechanical Specifications

The switch features a 345 mm diameter and a 6 mm panel thickness (max), with a travel to lock of 2.20 mm ± 0.3 mm and total travel of 4.20 mm ± 0.3 mm. It requires a torque of 5 Nm min. to 14 Nm max. for secure mounting, ensuring long-term stability without compromising safety.

Operational Characteristics

Designed for critical safety applications, the ES1S41653 offers precise actuation with a push force of 30 N ± 7 N and pull force of 25 N ± 5 N for double-pole models. The green status indicator provides immediate visual feedback, while the red anodised actuator ensures high visibility during emergency stops.

Technical Specifications

General Specifications

Product Description

Specifications

Product Summary

The APEMEmergency Stops Switches ES1S41653 is presented using the documented product characteristics available for this model.
