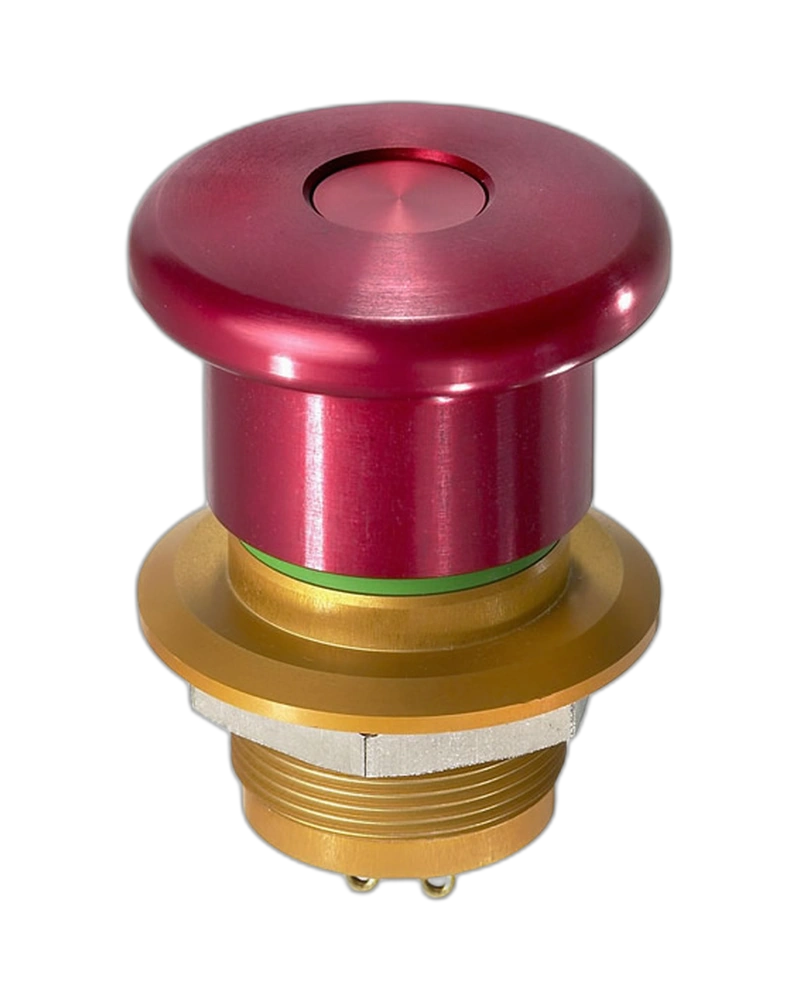

The APEM Emergency Stops Switches ES1P41653001 is a Switches and Pushbutton with documented product-specific characteristics including Electrical Functions: 2 NC; Number Of Poles: Double Pole,Actuator Colours:Red Anodised; Options: Push-Pull Marking.
Product Overview
The Emergency Stops Switches ES1P41653001 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Technical Characteristics
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Key Features
- at 500 VDC Dielectric stength : 1,000 Vrms 50 Hz min.
- between terminals2,000 Vrms 50 Hz min.
- Insulation resistance : 1,000 MΩ min.
- Number Of Poles: Double Pole,Actuator Colours:Red Anodised
- Terminals: Straight PC,Status Indicator:Green
- Options: Push-Pull Marking
- Mounting: Straight PC
- Electrical Functions: 2 NC
Selection Considerations
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
Technical Specifications
Environmental Specifications
| Feature | Specification |
|---|
| Panel thickness | 6 mm (.236) max. Low level or mechanical life : 100,000 cycles Travel to lock : 2.20 mm ± 0.3 mm |
| Total travel | 4.20 mm ± 0.3 mm |
| Torque | 5 Nm min. - 14 Nm max. applied to nut |
| Operating force | 2 pole models : Push : 30 N ± 7 N |
General Specifications
| Feature | Specification |
|---|
| Sealing | IP65, IP67 and IP69K according to IEC 60529 and DIN 40050 Salt spray : 96 hours according to IEC 68-2-11 Vibrations : 10-500 Hz - 10 g according to IEC 68-2-6 Shock resistance : 50 g according to IEC 68-2-27 Robustness ( |
| Operating temperature | -40 °C to +85 °C Compliant with EN 60947-5-1 |
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|
| Electrical Functions | 2 NC |
| Mounting | Straight PC |
Specifications
| Feature | Specification |
|---|
| Diameter | 345 mm |
Product Summary
The APEMEmergency Stops Switches ES1P41653001 is presented using the documented product characteristics available for this model.
