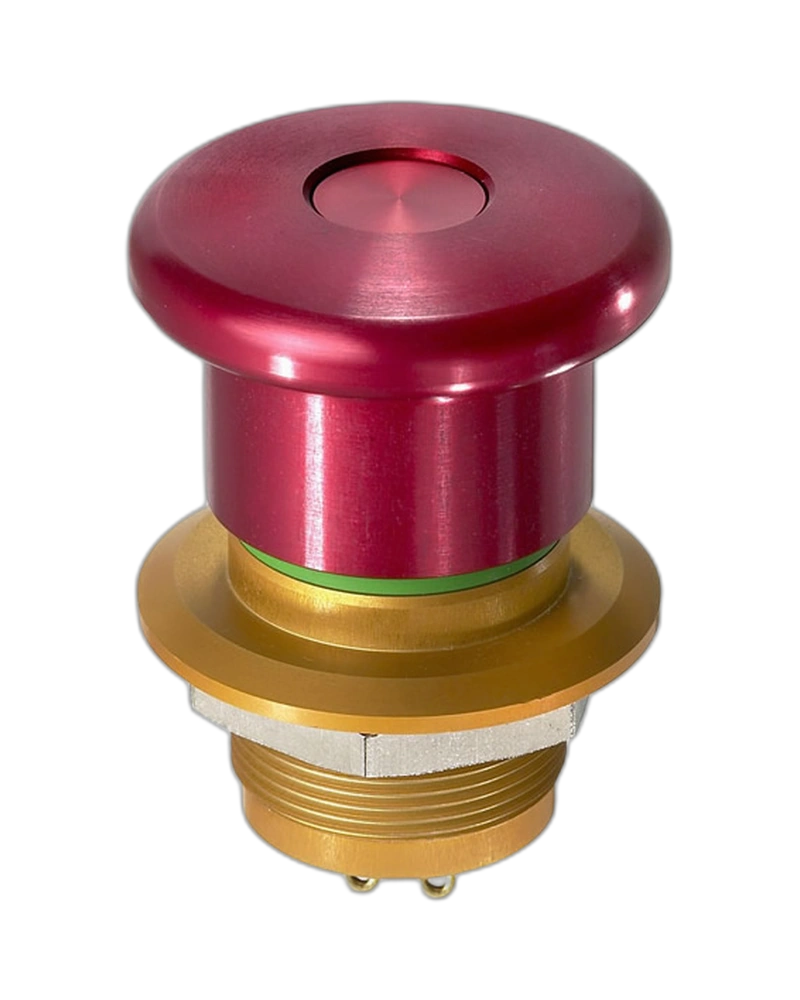

The APEM Emergency Stops Switches ES1C41653 is a robust double-pole switch designed for critical safety applications. With a 100,000-cycle mechanical life, IP65/67/69K sealing, and 500 VDC dielectric strength, this switch ensures reliable emergency stop functionality in demanding industrial environments. Its 2.20 mm ± 0.3 mm travel to lock and 4.20 mm ± 0.3 mm total travel provide precise operation for machinery safety systems.
The APEM Emergency Stops Switches ES1C41653 is a high-reliability double-pole emergency stop switch engineered for critical safety applications in industrial machinery. This switch delivers exceptional durability with a mechanical life of 100,000 cycles and robust environmental protection through IP65, IP67, and IP69K ratings. Designed for harsh conditions, it withstands salt spray testing for 96 hours, vibration up to 10-500 Hz at 10 g, and shock resistance of 50 g. The switch features a 2 NC electrical function, 500 VDC dielectric strength, and a 30 N operating force, ensuring safe and consistent emergency stop functionality across a wide temperature range from -40°C to +85°C.
The ES1C41653 is engineered for extreme environmental conditions. It meets IP65, IP67, and IP69K standards, ensuring protection against dust, water, and high-pressure cleaning. The switch withstands 96 hours of salt spray testing (IEC 68-2-11), vibration up to 10-500 Hz at 10 g (IEC 68-2-6), and shock resistance of 50 g (IEC 68-2-27), making it suitable for harsh industrial settings.
With a 2 NC electrical function and 500 VDC dielectric strength, the ES1C41653 ensures reliable operation in high-voltage environments. The switch maintains 1,000 MΩ insulation resistance and 2,000 Vrms 50 Hz dielectric strength between terminals, providing robust electrical safety even under demanding conditions.
The switch features precise mechanical travel with a 2.20 mm ± 0.3 mm travel to lock and 4.20 mm ± 0.3 mm total travel. It operates within a wide temperature range of -40°C to +85°C (EN 60947-5-1 compliant) and requires a torque of 5 Nm min. to 14 Nm max. for secure mounting.
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Low level or mechanical life : 100,000 cycles Travel to lock : 2.20 mm ± 0.3 mm |
| Total travel | 4.20 mm ± 0.3 mm |
| Torque | 5 Nm min. - 14 Nm max. applied to nut |
| Operating force | 2 pole models : Push : 30 N ± 7 N |
| Sealing | IP65, IP67 and IP69K according to IEC 60529 and DIN 40050 Salt spray : 96 hours according to IEC 68-2-11 Vibrations : 10-500 Hz - 10 g according to IEC 68-2-6 Shock resistance : 50 g according to IEC 68-2-27 Robustness ( |
| Operating temperature | -40 °C to +85 °C Compliant with EN 60947-5-1 |
| Feature | Specification |
|---|---|
| Electrical Functions | 2 NC |
| Mounting | Cable |
| Feature | Specification |
|---|---|
| Diameter | 345 mm |
The APEMEmergency Stops Switches ES1C41653 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Low level or mechanical life : 100,000 cycles Travel to lock : 2.20 mm ± 0.3 mm |
| Total travel | 4.20 mm ± 0.3 mm |
| Torque | 5 Nm min. - 14 Nm max. applied to nut |
| Operating force | 2 pole models : Push : 30 N ± 7 N |
| Sealing | IP65, IP67 and IP69K according to IEC 60529 and DIN 40050 Salt spray : 96 hours according to IEC 68-2-11 Vibrations : 10-500 Hz - 10 g according to IEC 68-2-6 Shock resistance : 50 g according to IEC 68-2-27 Robustness ( |
| Operating temperature | -40 °C to +85 °C Compliant with EN 60947-5-1 |
| Feature | Specification |
|---|---|
| Electrical Functions | 2 NC |
| Mounting | Cable |
| Feature | Specification |
|---|---|
| Diameter | 345 mm |
