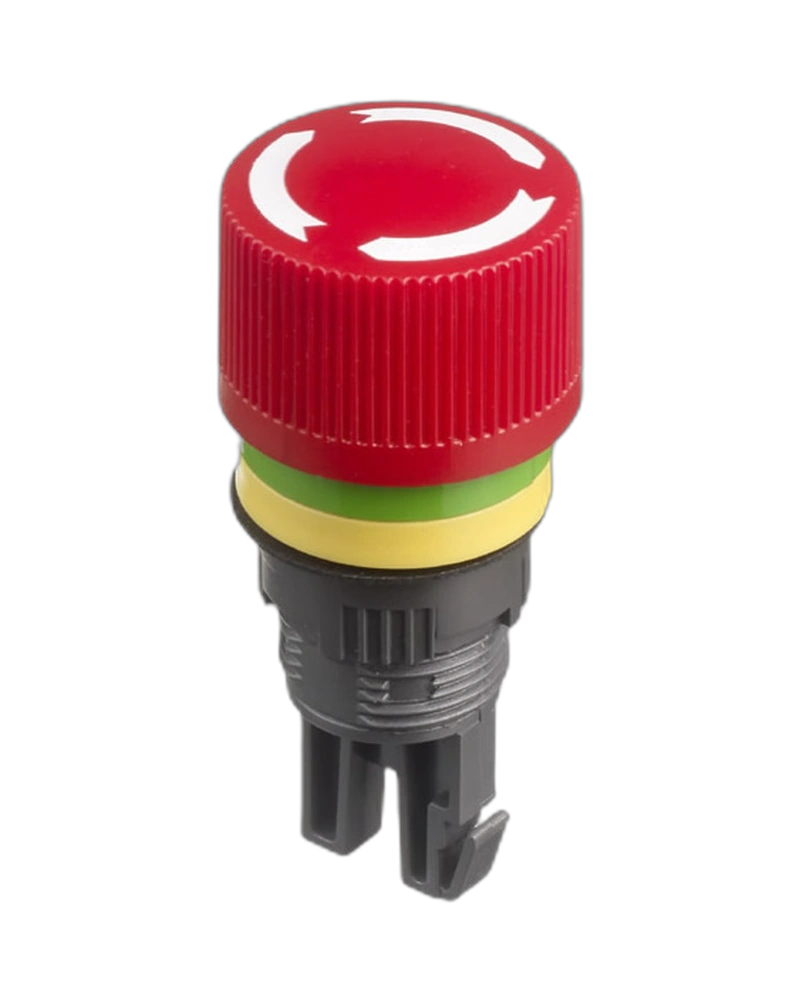

The APEM Emergency Stops Switches A01ESDSP3 is a robust, high-reliability push-to-shut-off switch designed for critical emergency stop applications. Featuring a 40mm head, this autoswitch operates within -20°C to +55°C temperatures, with electrical life of 6,050 cycles and insulation resistance of 50 MΩ. Its IP65 front panel and IP40 rear panel ensure reliable performance in demanding industrial environments.
Product Overview
The APEM Emergency Stops Switches A01ESDSP3 is a purpose-built emergency stop switch engineered for critical safety applications in industrial machinery. This autoswitch combines high electrical reliability with robust environmental protection, featuring a 40mm head design that ensures clear visibility and ease of operation. With electrical life exceeding 6,050 cycles and insulation resistance of 50 MΩ, the A01ESDSP3 meets stringent safety standards for emergency stop systems while maintaining compatibility with a wide range of actuators. Its front panel IP65 and rear panel IP40 sealing provide effective protection against dust and moisture, making it suitable for harsh industrial conditions across a temperature range of -20°C to +55°C.
Electrical Performance
The A01ESDSP3 delivers high electrical reliability with an electrical life of 6,050 cycles and a contact gap exceeding 3 mm. It maintains robust insulation resistance at 50 MΩ and withstands dielectric tests up to 2900 V, ensuring safe operation in critical emergency stop systems.
Environmental Protection
With front panel IP65 and rear panel IP40 sealing, the A01ESDSP3 provides effective protection against dust and water ingress. This dual-level sealing meets EN 60947-5-5 standards, making it suitable for use in harsh industrial environments where exposure to contaminants is likely.
Operational Specifications
Engineered for reliable performance across a wide temperature range (-20°C to +55°C), the A01ESDSP3 operates with an operating force of 18 to 20 N. Its torque requirement of 0.8 Nm ensures smooth operation during installation and use, while the 6 mm panel thickness provides structural integrity.
Installation and Compatibility
The A01ESDSP3 features solder/faston terminals with a 2.8 mm (.110) size, compatible with IEC 68-2-20 standards. Its 40mm head design ensures compatibility with various actuators and allows for easy integration into emergency stop systems without compromising safety or functionality.
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
Environmental Specifications
| Feature | Specification |
|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
General Specifications
| Feature | Specification |
|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|
| terminals | Solder/ Faston 2.8 mm (.110) (IEC 68-2-20) |
Specifications
| Feature | Specification |
|---|
| voltage | 2900 V |
Product Summary
The APEMEmergency Stops Switches A01ESDSP3 is presented using the documented product characteristics available for this model.
