Explore performance details, construction highlights, applications, and technical information in one clear overview.

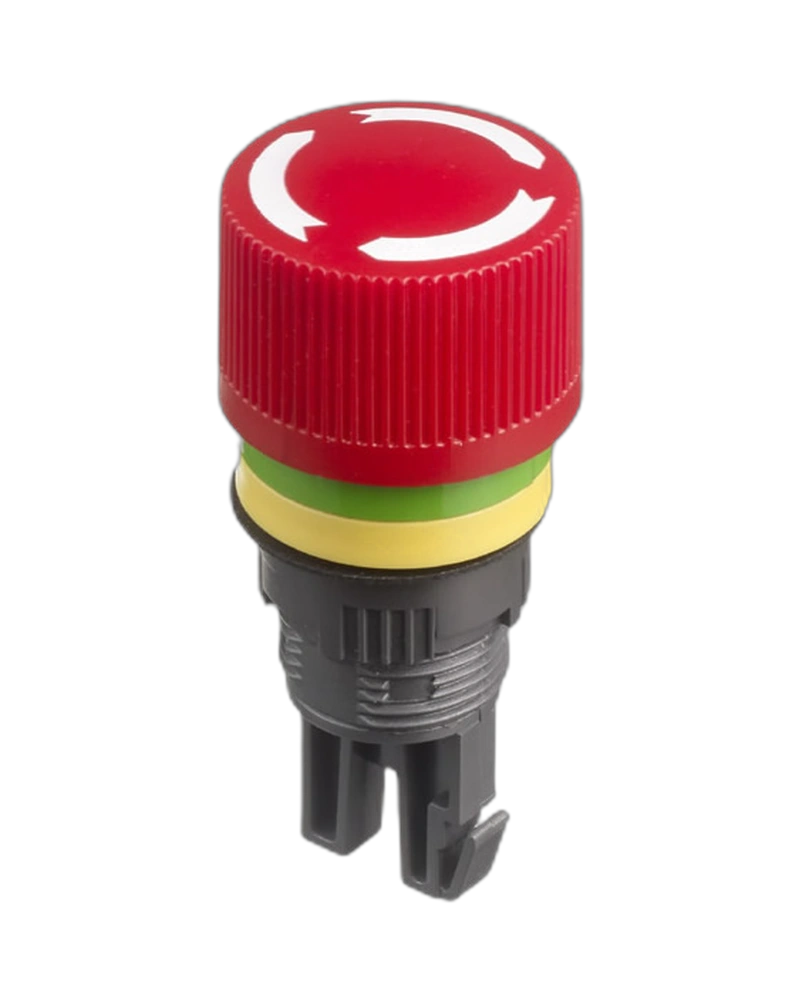

The APEM Emergency Stops Switches A01ESDM is a robust push-to-shut-off, twist-to-release switch designed for industrial safety applications. With electrical life of 6,050 cycles, contact gap >3 mm, and insulation resistance of 50 MΩ, it ensures reliable operation in demanding environments. This switch features front panel IP65 and rear panel IP40 sealing, making it suitable for harsh industrial conditions across the -20°C to +55°C temperature range.
The APEM Emergency Stops Switches A01ESDM is a high-reliability safety switch engineered for critical industrial applications where immediate shutdown capability is essential. This push-to-shut-off, twist-to-release switch delivers exceptional durability with 6,050 electrical cycles and 6,050 mechanical cycles, ensuring long-term performance in demanding environments. Its robust construction includes front panel IP65 and rear panel IP40 sealing, providing protection against dust and water ingress while maintaining operational integrity across a wide temperature range from -20°C to +55°C. The switch operates with a force of 18-20 N and withstands dielectric test voltages up to 2900 V, making it ideal for safety-critical systems where failure is not an option.
The APEM Emergency Stops Switches A01ESDM delivers robust electrical performance with a dielectric test voltage of 2900 V and insulation resistance of 50 MΩ. This ensures the switch maintains safe electrical isolation even under high-voltage conditions, critical for industrial safety systems where electrical faults could compromise operations.
With front panel IP65 and rear panel IP40 sealing, this switch provides exceptional protection against dust and water ingress. The IP65 rating ensures the front panel is fully protected from dust and water jets, while the IP40 rating on the rear panel offers basic dust protection, making it suitable for outdoor and harsh industrial environments.
Engineered to operate across a wide temperature range from -20°C to +55°C, the APEM Emergency Stops Switches A01ESDM maintains reliable performance in extreme conditions. This thermal resilience ensures consistent functionality in both cold and hot industrial settings without degradation of performance.
The switch features a mechanical life of 6,050 cycles, ensuring long-term reliability in high-use applications. Its operating force of 18-20 N and torque of 0.8 Nm provide a balance between user-friendly operation and robust mechanical engagement, critical for safety-critical systems where repeated use is expected.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
The APEMEmergency Stops Switches A01ESDM is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
