Explore performance details, construction highlights, applications, and technical information in one clear overview.

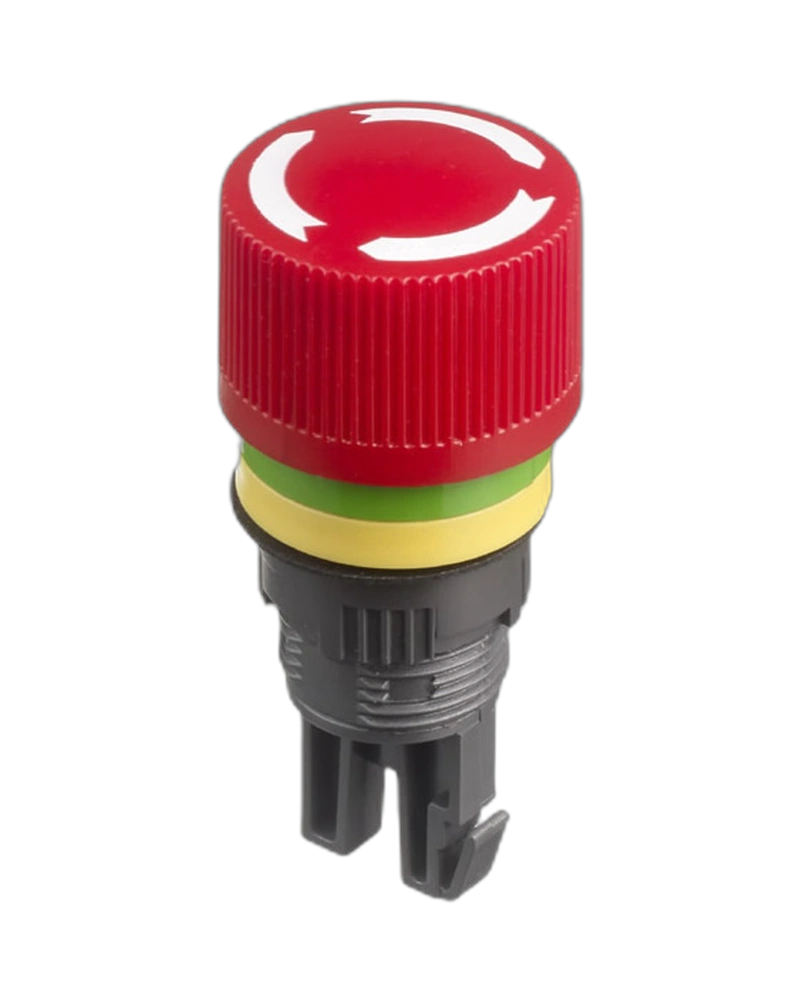

The APEM Emergency Stops Switches A01ESD is a Switches and Pushbutton with documented product-specific characteristics including terminals: Solder/ Faston 2.8 mm (.110) (IEC 68-2-20); Electrical life: 6,050 cycles Contact gap : >3 mm; Insulation resistance: 50 M min Dielectric test voltage : 2900 V.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Operating force | 18 to 20 N Soldering : 350 ° C, 5 seconds (IEC 68-2-2-20Tb, method 2) Switch |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| Force | 25 N |
| voltage | 2900 V |
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| terminals | Solder/ Faston 2.8 mm (.110) (IEC 68-2-20) |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
