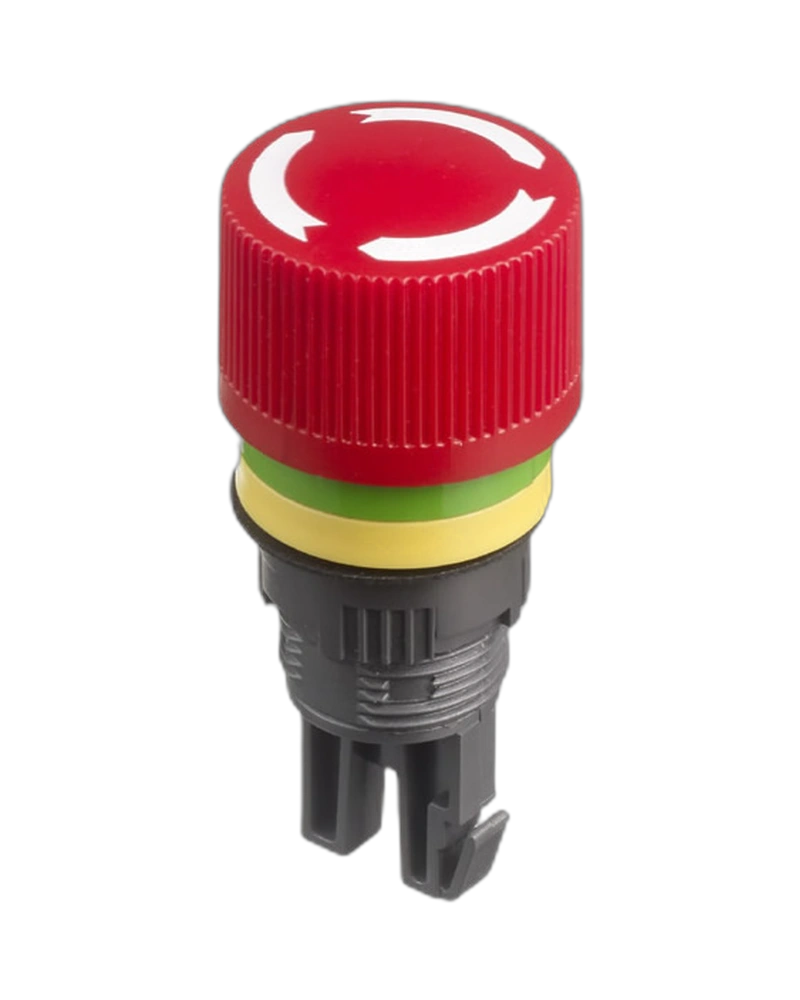

The APEM Emergency Stops Switches A01ES-D is a robust, high-reliability push-to-shut-off switch designed for industrial applications. With electrical life of 6,050 cycles, IP65 front panel sealing, and operation across -20°C to +55°C temperatures, this autoswitch ensures safe and durable emergency stop functionality in demanding environments.
Product Overview
The APEM Emergency Stops Switches A01ES-D is a high-performance, safety-critical push-to-shut-off switch engineered for industrial machinery and equipment. This autoswitch delivers exceptional reliability with a rated electrical life of 6,050 cycles, robust IP65 front panel sealing for dust and water resistance, and a wide operating temperature range from -20°C to +55°C. Designed to meet stringent safety standards, the A01ES-D provides a fail-safe mechanism for emergency stop systems where rapid response and durability are essential.
Safety and Compliance
The A01ES-D meets EN 60947-5-5 standards for sealing and electrical safety. Its IP65 front panel ensures protection against dust and water ingress, while the rear panel IP40 rating provides basic protection for industrial environments. The dielectric test voltage of 2900 V confirms high insulation integrity under demanding conditions.
Operational Performance
Engineered for high reliability, the A01ES-D operates within a wide temperature range (-20°C to +55°C) and withstands 6,050 cycles of electrical and mechanical use. The switch requires a light operating force of 18 to 20 N, ensuring user-friendly operation without excessive effort. Its contact gap of >3 mm ensures stable electrical connections even under high-voltage conditions.
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
Environmental Specifications
| Feature | Specification |
|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
General Specifications
| Feature | Specification |
|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|
| terminals | Solder/ Faston 2.8 mm (.110) (IEC 68-2-20) |
Specifications
| Feature | Specification |
|---|
| voltage | 2900 V |
Product Summary
The APEMEmergency Stops Switches A01ES-D is presented using the documented product characteristics available for this model.
