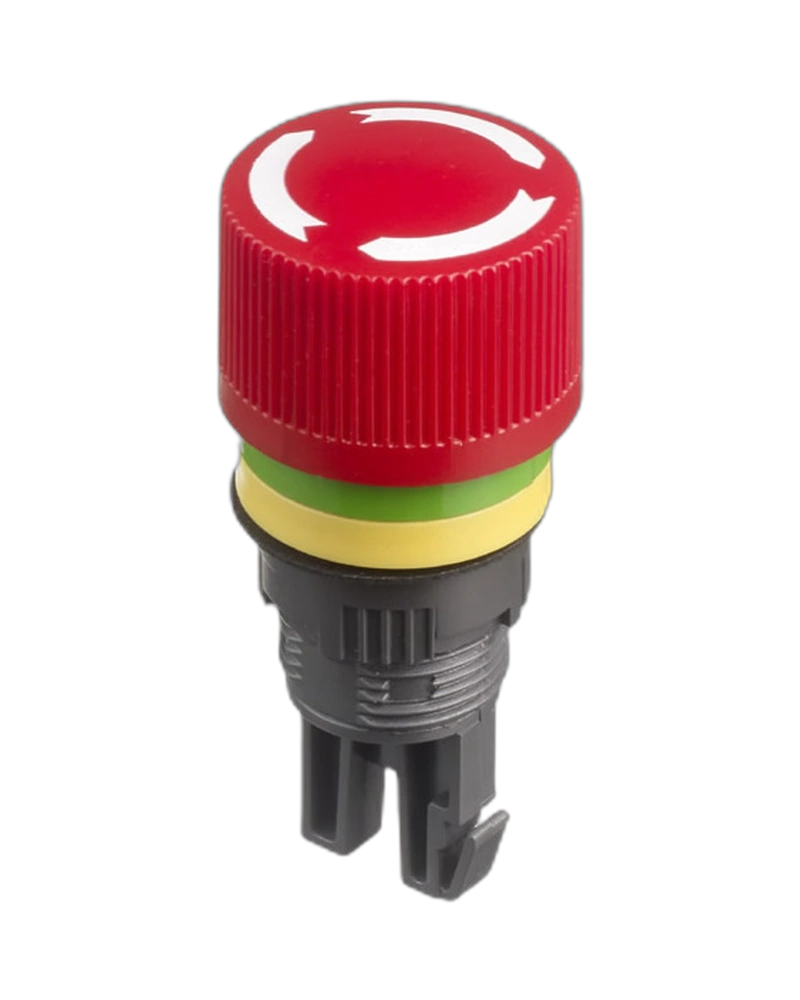

The APEM Emergency Stops Switches A0154B-D is a robust push-to-shut-off, twist-to-release switch designed for industrial safety applications. With an electrical life of 6,050 cycles, IP65 front panel sealing, and a contact gap of >3 mm, this autoswitch ensures reliable operation in demanding environments. Ideal for machinery where safety interlocks are critical.
The APEM Emergency Stops Switches A0154B-D is a high-reliability push-to-shut-off, twist-to-release switch engineered for critical industrial safety applications. This autoswitch delivers exceptional durability with an electrical life of 6,050 cycles and a contact gap exceeding 3 mm, ensuring consistent performance even under heavy usage. Its front panel features IP65 protection against dust and water, while the rear panel offers IP40 sealing for robust environmental resilience. Designed to operate within a temperature range of -20°C to +55°C, this switch meets stringent safety standards including EN 60947-5-5 and is suitable for applications requiring fail-safe emergency stop functionality.
The APEM Emergency Stops Switches A0154B-D operates with a dielectric test voltage of 2900 V and provides an insulation resistance of 50 MΩ minimum. This ensures reliable electrical isolation and safety compliance under demanding conditions.
Engineered for extreme conditions, this switch functions within a temperature range of -20°C to +55°C. The front panel achieves IP65 protection against dust and water ingress, while the rear panel offers IP40 sealing for resistance to solid objects.
With a mechanical life of 6,050 cycles and an operating force of 18 to 20 N, the switch maintains consistent performance during repeated use. The torque requirement of 0.8 Nm ensures secure installation without excessive force.
Compliant with EN 60947-5-5, this switch meets international standards for emergency stop functionality. Its design ensures fail-safe operation where a single point of failure could compromise safety.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
The APEMEmergency Stops Switches A0154B-D is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
