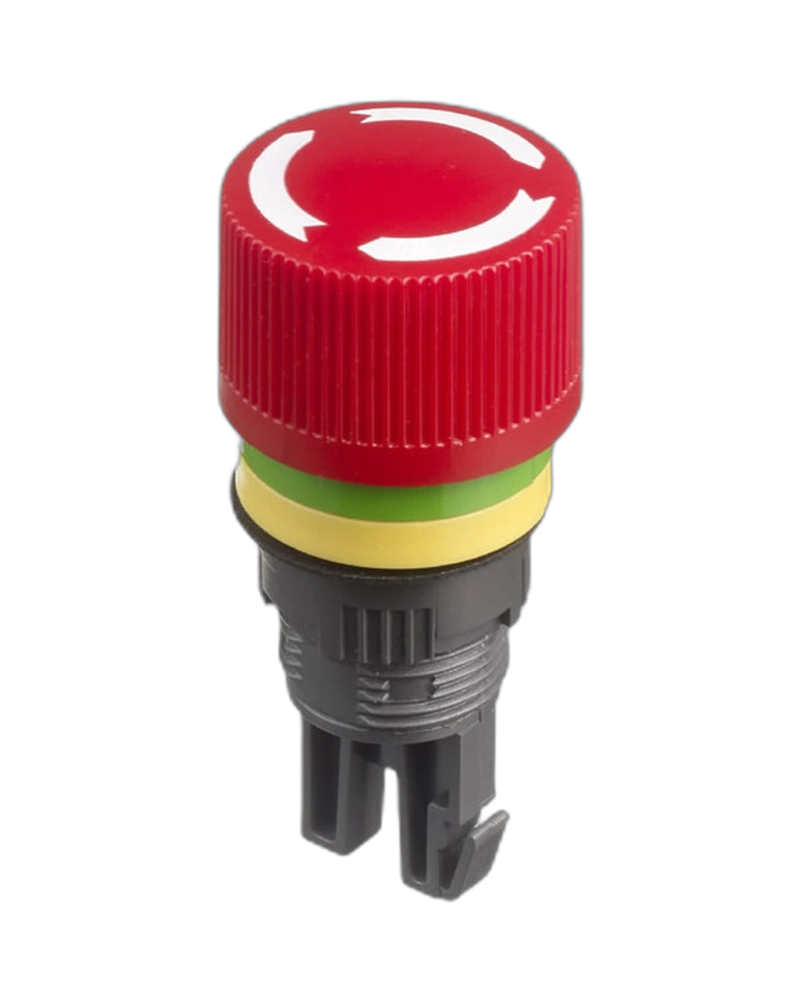

The APEM Emergency Stops Switches A0150B-D is a robust push-to-shut-off, twist-to-release switch designed for industrial applications. With electrical life of 6,050 cycles, contact gap >3 mm, and IP65 front panel sealing, this autoswitch ensures reliable safety functionality in demanding environments. Ideal for machinery where high durability and environmental protection are critical.
The APEM Emergency Stops Switches A0150B-D is a high-reliability push-to-shut-off, twist-to-release switch engineered for critical industrial safety applications. This autoswitch delivers exceptional durability with 6,050 cycles of electrical life and mechanical life, ensuring consistent performance under demanding operational conditions. Its front panel IP65 rating provides robust protection against dust and water ingress, while the rear panel IP40 rating ensures adequate environmental resilience for industrial settings. The switch operates within a temperature range of -20°C to +55°C, making it suitable for diverse industrial environments. With a contact gap exceeding 3 mm and insulation resistance of 50 MΩ, this switch meets stringent safety and performance standards for emergency stop systems.
The APEM Emergency Stops Switches A0150B-D features electrical life of 6,050 cycles and mechanical life of 6,050 cycles. It maintains a contact gap of >3 mm and provides insulation resistance of 50 MΩ. The dielectric test voltage is 2900 V, ensuring reliable performance under high-voltage conditions. Soldering is compatible with 350°C for 5 seconds (IEC 68-2-2-20Tb, method 2).
Front panel sealing meets IP65 standards, protecting against dust and water ingress. Rear panel sealing provides IP40 protection, ensuring resistance to solid objects and limited water exposure. The switch operates within a temperature range of -20°C to +55°C, making it suitable for extreme environmental conditions.
The switch requires an operating force of 18 to 20 N for reliable activation. Torque specifications of 0.8 Nm ensure precise mechanical operation. The switch functions within a temperature range of -20°C to +55°C, accommodating diverse industrial environments.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
The APEMEmergency Stops Switches A0150B-D is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Electrical life | 6,050 cycles Contact gap : >3 mm |
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
| Feature | Specification |
|---|---|
| Sealing | front panel IP65, rear panel IP40 According to EN 60947-5-5 |
| Operating temperature | -20 °C to +55 ° C |
| Feature | Specification |
|---|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Torque | 0.8 Nm |
| Feature | Specification |
|---|---|
| voltage | 2900 V |
