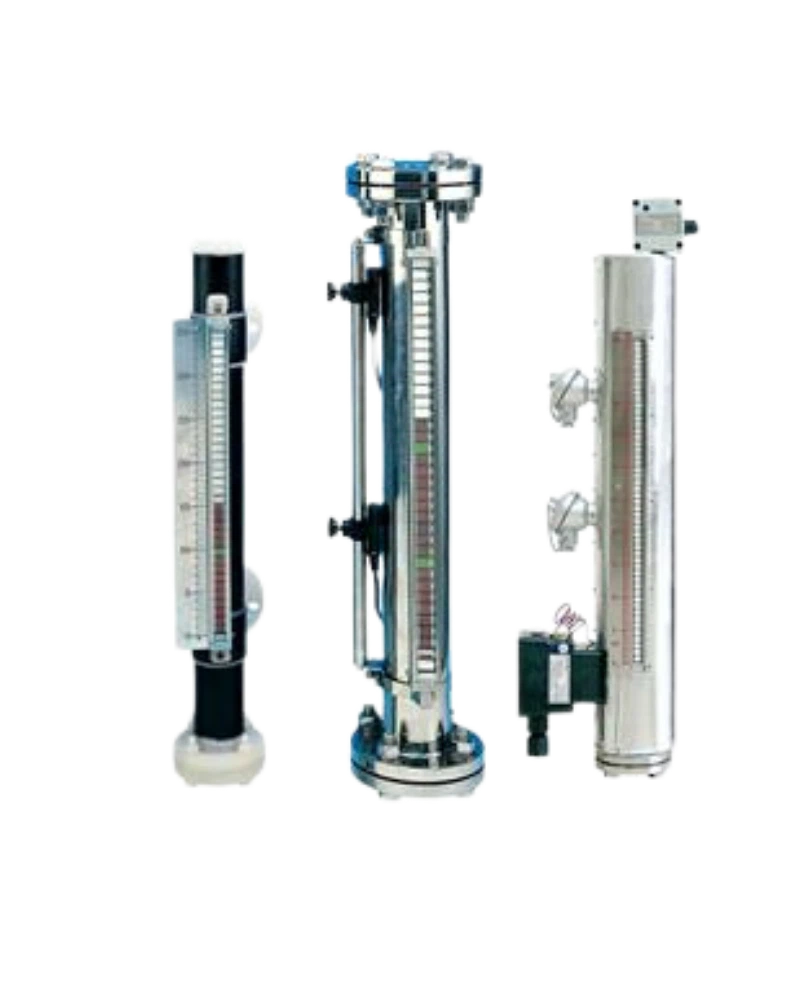

EFX By-Pass Level Transmitter - EFB-1540 (FLTBM1F-1MB5020006) is a FINETEK EFX By-Pass Level Transmitter configuration identified in the catalog by Pass Level Transmitter and order code EFB - 1540 (FLTBM1F - 1MB5020006). The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual Pass Level Transmitter identity rather than a generic description of the FINETEK range.
External magnetic level indication based on hydrostatic equilibrium, with a magnet-equipped float driving visual flags and optional switches/transducers. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.
The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.
The EFX By-Pass Level Transmitter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.
FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.
The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is EFX By-Pass Level Transmitter - EFB-1540 (FLTBM1F-1MB5020006) with order code EFB - 1540 (FLTBM1F - 1MB5020006).
This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.
The EFX By-Pass Level Transmitter - EFB-1540 (FLTBM1F-1MB5020006) configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.
Model: EFB-1540 (FLTBM1F-1MB5020006). The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
| Specification | Details |
|---|---|
| Product name | EFX By-Pass Level Transmitter - EFB-1540 (FLTBM1F-1MB5020006) |
| Model / variant | Pass Level Transmitter |
| Order code / configuration | EFB - 1540 (FLTBM1F - 1MB5020006) |
| Resolution | 10 mm |
| Operating temperature | Up to <400 °C depending on wetted material in one FineTek guide; PVDF product configuration up to 120 °C |
| Float specific gravity | Greater than 0.55 of water; plastic guide lists approximately 0.63–0.83 |
| Pressure | Up to 110 kg/cm² in high-performance configurations; plastic main-part guide 5 kg/cm² |
| Wetted materials | PVDF / PP / SUS304 / SUS316 |
| Supply voltage | None for the purely mechanical level indication |
| Optional transmitter output | 4–20 mA or 3-wire resistance output |
| Optional transmitter resolution | 6.35 mm / 0.1 mm depending transmitter |
| Optional switch | SPST / SPDT; up to 1 A / 30 W / 200 VDC / 240 VAC |
| Maximum tailored length | 6 m listed in one FineTek guide |
