Product Overview

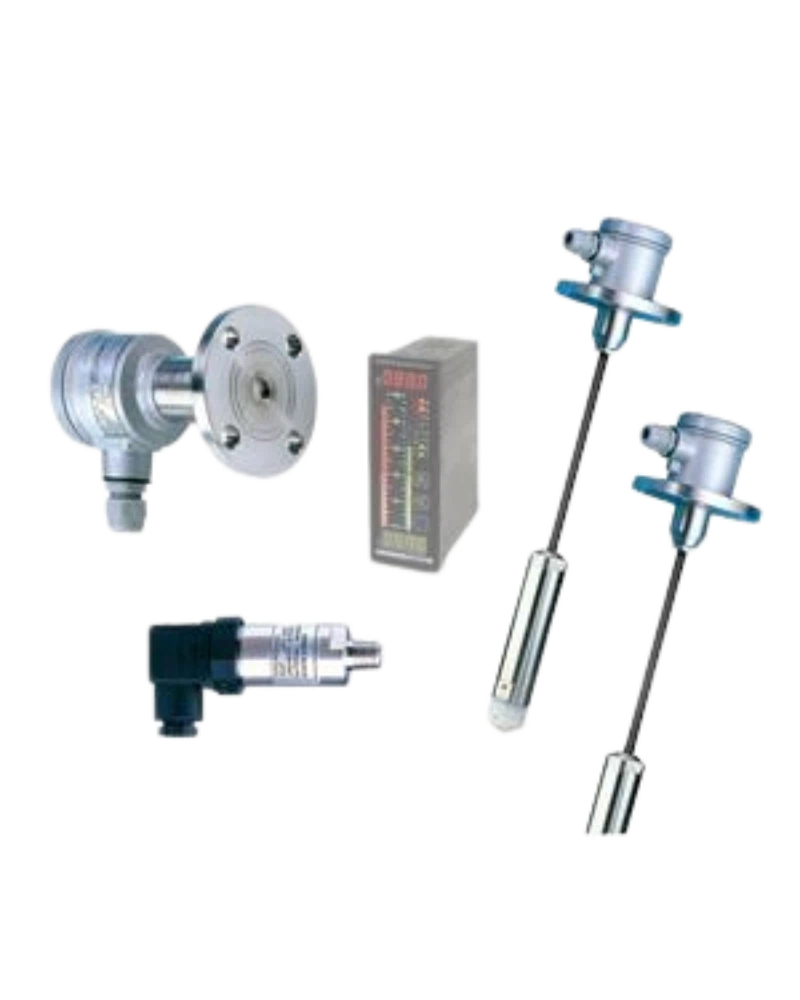

ECX Pressure Level Transmitter - EC1200 - Hi-temp.Flange Model is a FINETEK ECX Pressure Level Transmitter configuration identified in the catalog by EC1200 and order code Hi - temp.Flange Model. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual EC1200 identity rather than a generic description of the FINETEK range.

Submersible hydrostatic pressure measurement for continuous liquid-level indication. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Linearity: 0.3% FS
• Long-term stability: <0.1%
• Supply voltage: 13–36 VDC
• Output: 4–20 mA
• Loop resistance: <500 Ω
• Operating temperature: -10 to 80 °C; EC1200 high-temperature version -10 to 150 °C
• Pressure ranges: 0.1 / 0.2 / 0.4 bar for EC1100/1110; up to 10 bar options on EC1200
• Measuring range examples: 0–1 / 2 / 4 m and 0–1 / 2 / 5 / 10 / 20 / 50 / 100 m depending model
• Housing: Aluminum, IP65
• Wetted construction: SUS304 / SUS316

Design and Features

The ECX Pressure Level Transmitter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Continuous hydrostatic level measurement
• Flange and threaded models
• High-temperature EC1200 configuration
• 4–20 mA loop output
• Stainless wetted materials

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Water tanks
• Wastewater
• Hydraulic systems
• Chemical process tanks
• Industrial storage tanks

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is ECX Pressure Level Transmitter - EC1200 - Hi-temp.Flange Model with order code Hi - temp.Flange Model.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The ECX Pressure Level Transmitter - EC1200 - Hi-temp.Flange Model configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Supply voltage: 13–36 VDC
• Output: 4–20 mA
• Operating temperature: -10 to 80 °C; EC1200 high-temperature version -10 to 150 °C
• Pressure ranges: 0.1 / 0.2 / 0.4 bar for EC1100/1110; up to 10 bar options on EC1200
• Measuring range examples: 0–1 / 2 / 4 m and 0–1 / 2 / 5 / 10 / 20 / 50 / 100 m depending model
• Housing: Aluminum, IP65
• Connection examples: 1-1/2 in process connections
• Wet-part protection: IP68 on EC1100/1110
• Linearity: 0.3% FS
• Long-term stability: <0.1%

Product Identification

Model: EC1200. Order code: Hi-temp.Flange Model. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
