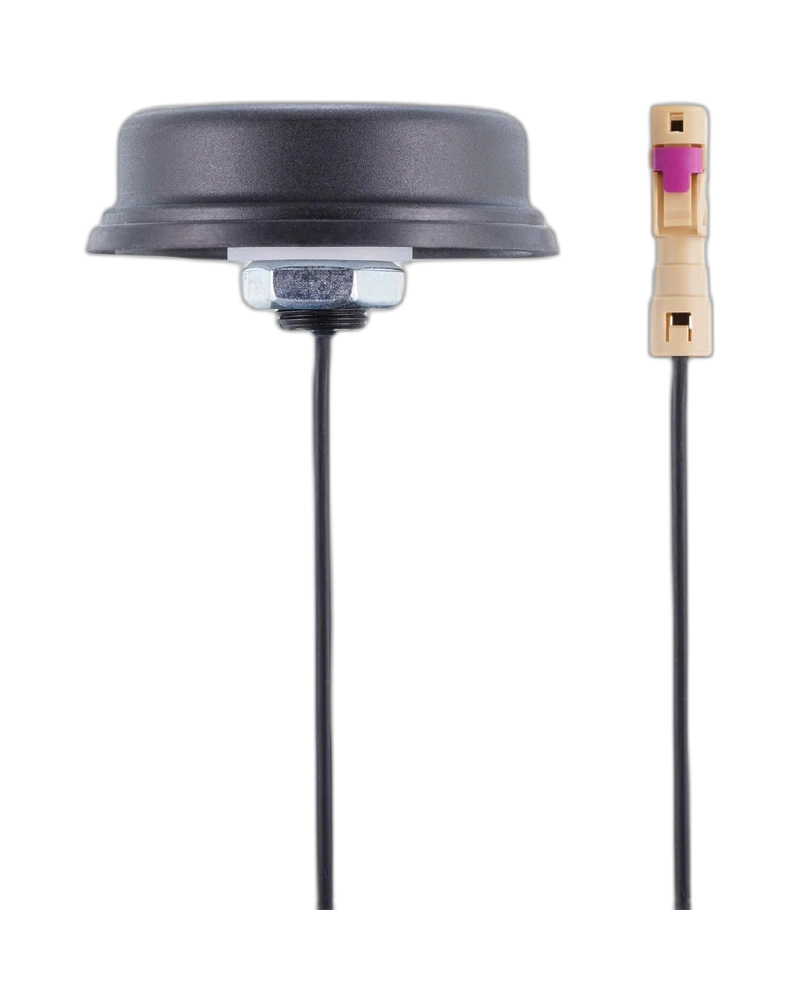

The EC3133 is a combined antenna designed for WLAN and Bluetooth communication in mobile and industrial applications. It supports 2.4 GHz and 5 GHz WLAN frequency bands and uses a FAKRA I connection. The antenna provides 3 dBi gain at 2.4 GHz and 1 dBi at 5.3 GHz. Its IP69K-rated construction makes it suitable for demanding outdoor and mobile environments
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC3133 combines WLAN and Bluetooth antenna functionality into a single compact antenna. It is designed for wireless communication systems used in mobile machines and industrial equipment.
The antenna supports 2.4 GHz WLAN frequencies from 2400–2480 MHz and 5 GHz WLAN frequencies from 5150–5852 MHz. It supports common 802.11 standards including b/g/n and a/h/j/n/ac.
The antenna uses screw mounting with an M16 × 1.5 mounting thread. Its compact housing is designed for practical vehicle and machine installation.
The EC3133 has an operating temperature range of -40 to +85 °C and IP69K protection, making it suitable for demanding mobile and industrial environments.
Combined WLAN and Bluetooth antenna
WLAN/BLE/FAKRA-I design
2.4 GHz WLAN support
5 GHz WLAN support
FAKRA I connector
3 dBi gain at 2.4 GHz
1 dBi gain at 5.3 GHz
IP69K protection
M16 × 1.5 screw mounting
2 m cable length
Mobile machinery
Industrial wireless communication
WLAN connectivity
Bluetooth communication
Vehicle communication systems
Remote maintenance systems
Industrial automation
Mobile control systems
| Specification | Details |
|---|---|
| Product Code | EC3133 |
| Product Type | Combined WLAN/Bluetooth antenna |
| Model | WLAN/BLE/FAKRA-I Antenna |
| WLAN Frequency | 2400–2480 MHz |
| WLAN 5 GHz | 5150–5852 MHz |
| WLAN Standards | 802.11b/g/n, 802.11a/h/j/n/ac |
| Connector | FAKRA I |
| Gain at 2.4 GHz | +3 dBi |
| Gain at 5.3 GHz | +1 dBi |
| Power | <10 W |
| Protection Rating | IP69K |
| Ambient Temperature | -40 to +85 °C |
| Mounting | Screw mounting |
| Mounting Thread | M16 × 1.5 |
| Cable Length | 2 m |
| Weight | 105.85 g |
