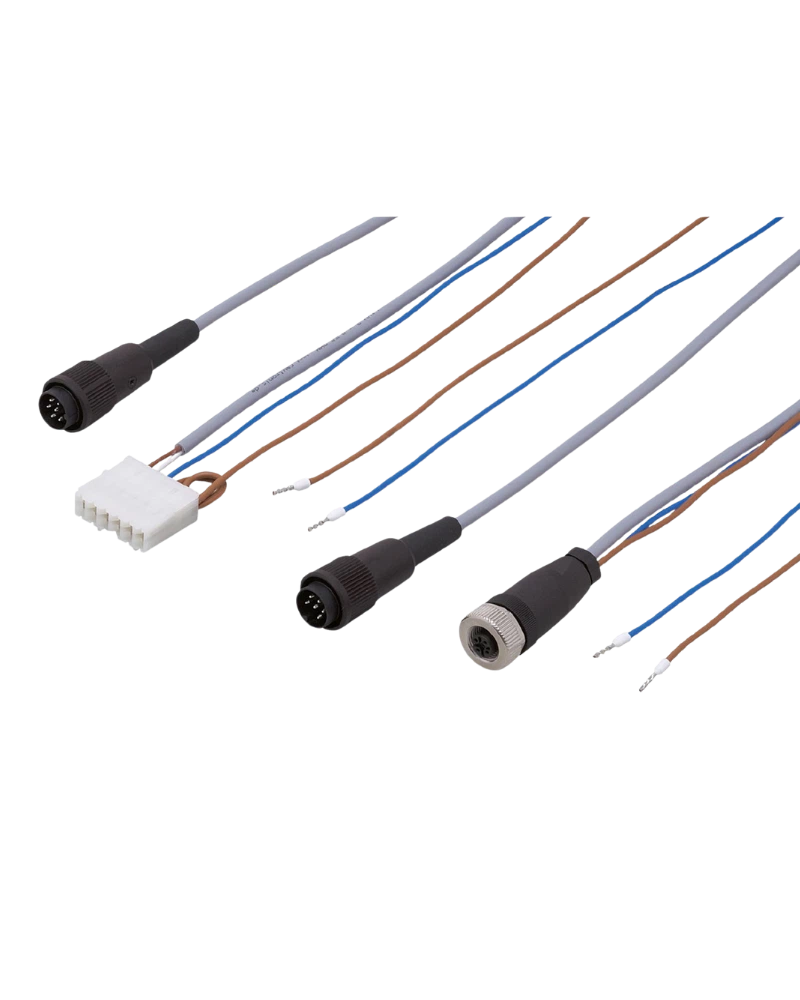

The EC2114 is a programming cable set designed for CANfox interfaces used with controllers and displays. It provides dedicated connections for BasicController and BasicDisplay systems. The cable set supports quick parameter setting, programming and system commissioning. An integrated CAN bus terminating resistor helps provide reliable CAN communication
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2114 provides a ready-to-use programming connection for compatible R360 controllers and displays. It simplifies the connection of CAN-based control equipment during setup and servicing.
The cable set includes dedicated connections for BasicController and BasicDisplay devices, allowing convenient connection to the CANfox interface.
An integrated CAN bus terminating resistor is incorporated into the connector housing to support reliable CAN network communication.
The cable set is designed for quick and easy parameter setting, programming and commissioning of CAN devices.
Programming cable set
R360/CABLE/CANFox-Basic
Designed for CANfox interface
BasicController connection
BasicDisplay connection
Integrated CAN bus terminating resistor
Reliable CAN signal transmission
1 m cable length
Voltage supply through individual wires
End ferrules on supply wires
CAN system programming
BasicController programming
BasicDisplay configuration
Parameter setting
System commissioning
CAN diagnostics
Mobile automation systems
Controller servicing
| Specification | Details |
|---|---|
| Product Code | EC2114 |
| Product Type | Programming cable set |
| Model | R360/CABLE/CANFox-Basic |
| Compatible Interface | CANfox |
| Cable Length | 1 m |
| CAN Function | Programming and communication |
| Termination | Integrated CAN bus terminating resistor |
| Supply Connection | Individual wires |
| Wire Termination | End ferrules |
| Application | Controllers and displays |
