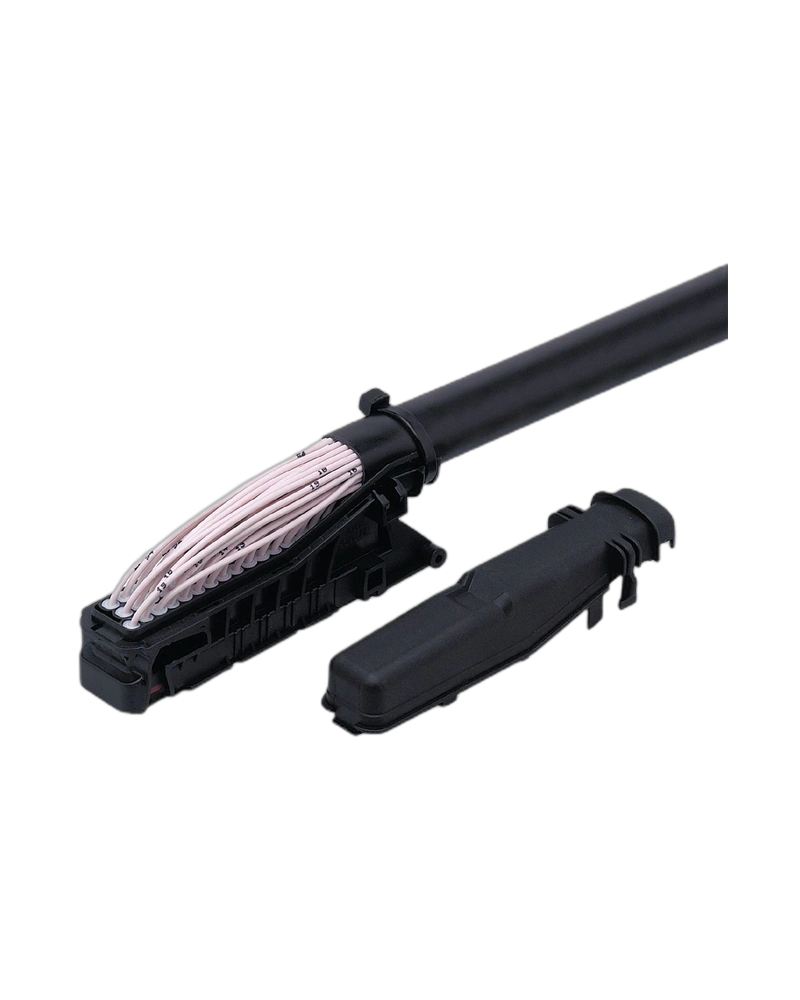

The EC2097 is a sealed connecting cable designed for reliable connections between controllers and dialogue units in R360 systems. It features a 2.5 m PVC cable and a lockable 55-pole AMP Junior Timer connector. The sealed construction provides IP67 protection for demanding environments. It is suitable for mobile machines and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2097 is a robust connection cable developed for R360 control systems. It provides dependable electrical connectivity between compatible controllers and dialogue units.
The cable uses a 55-pole AMP Junior Timer connector with a lockable construction and reverse polarity protection. Individual cores are sealed to improve protection against environmental conditions.
The 2.5 m cable is manufactured from black PVC and uses FLRY-B construction with 1 mm² conductors. This construction supports reliable electrical transmission in mobile applications.
With IP67 protection and an operating temperature range of -40 to +80 °C, the EC2097 is suitable for mobile machines and harsh industrial environments.
Sealed connecting cable
R360/CABLE/2,5M/SEALED design
2.5 m cable length
55-pole AMP Junior Timer connector
Lockable connector design
Reverse polarity protection
Sealed individual cores
PVC black cable
IP67 protection
Wide operating temperature range
Mobile machine control systems
R360 controller connections
Industrial automation systems
Dialogue unit connections
Mobile hydraulic machinery
Control cabinet wiring
Harsh industrial environments
Machine electrical systems
| Specification | Details |
|---|---|
| Product Code | EC2097 |
| Product Type | Connecting cable |
| Model | R360/CABLE/2,5M/SEALED |
| Cable Length | 2.5 m |
| Connector | AMP Junior Timer |
| Connector Contacts | 55-pole |
| Cable Material | PVC |
| Cable Type | FLRY-B |
| Conductor Size | 1 mm² |
| Operating Voltage | 36 V DC |
| Protection Rating | IP67 |
| Ambient Temperature | -40 to +80 °C |
| Pack Quantity | 1 pc |
| Weight | 1761.5 g |
