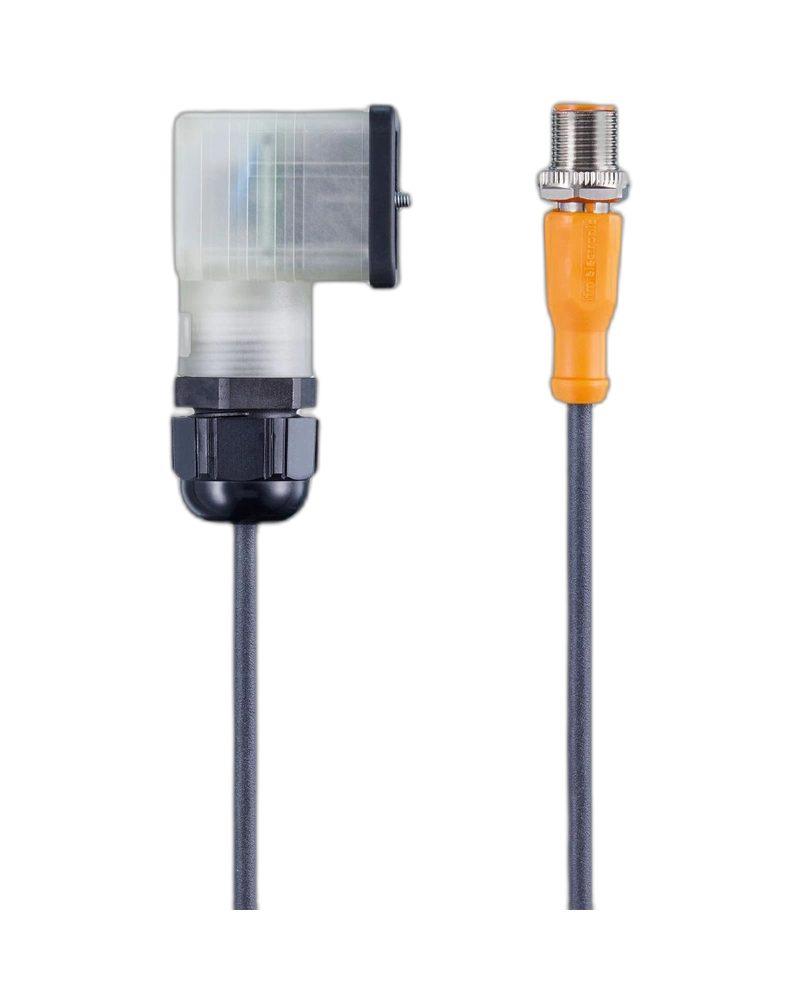

The EC2088 is a jumper cable with a valve plug designed for connecting Danfoss PVEH-F valve applications to R360 control systems. It combines a valve type A connector with an M12 connector for practical control wiring. The cable uses a compact 0.24 m PUR construction. It supports connections for 24 V DC, PWM and error feedback signals
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2088 provides a dedicated connection between compatible valve equipment and R360 control systems. Its compact jumper design simplifies wiring in mobile hydraulic applications.
The cable features a valve type A DIN connector on one side and a straight A-coded M12 connector on the other side. Both connectors are designed for secure industrial connections.
The wiring supports 24 V DC power, PWM input, error output and ground connections, enabling convenient integration of compatible valve control equipment.
The compact PUR cable construction makes the jumper cable suitable for mobile machinery, hydraulic control systems and demanding automation applications.
Jumper cable with valve plug
R360/DANFOSS PVEH-F/M12 design
Valve type A DIN connector
Straight M12 connector
A-coded M12 connection
0.24 m cable length
PUR halogen-free cable
24 V DC connection
PWM and error signal support
Mobile hydraulic systems
Valve control applications
Danfoss valve connections
R360 controller systems
Hydraulic machinery
Mobile machine automation
PWM valve control
| Specification | Details |
|---|---|
| Product Code | EC2088 |
| Product Type | Jumper cable with valve plug |
| Model | R360/DANFOSS PVEH-F/M12 |
| Cable Length | 0.24 m |
| Cable Material | PUR |
| Valve Connector | Valve type A DIN |
| M12 Connector | M12, straight, A-coded |
| Contacts | 4 |
| Operating Supply | 24 V DC |
| Signals | PWM IN, Error OUT, GND |
| Cable | 4 x 0.34 mm² |
| Connector Housing | Halogen-free |
