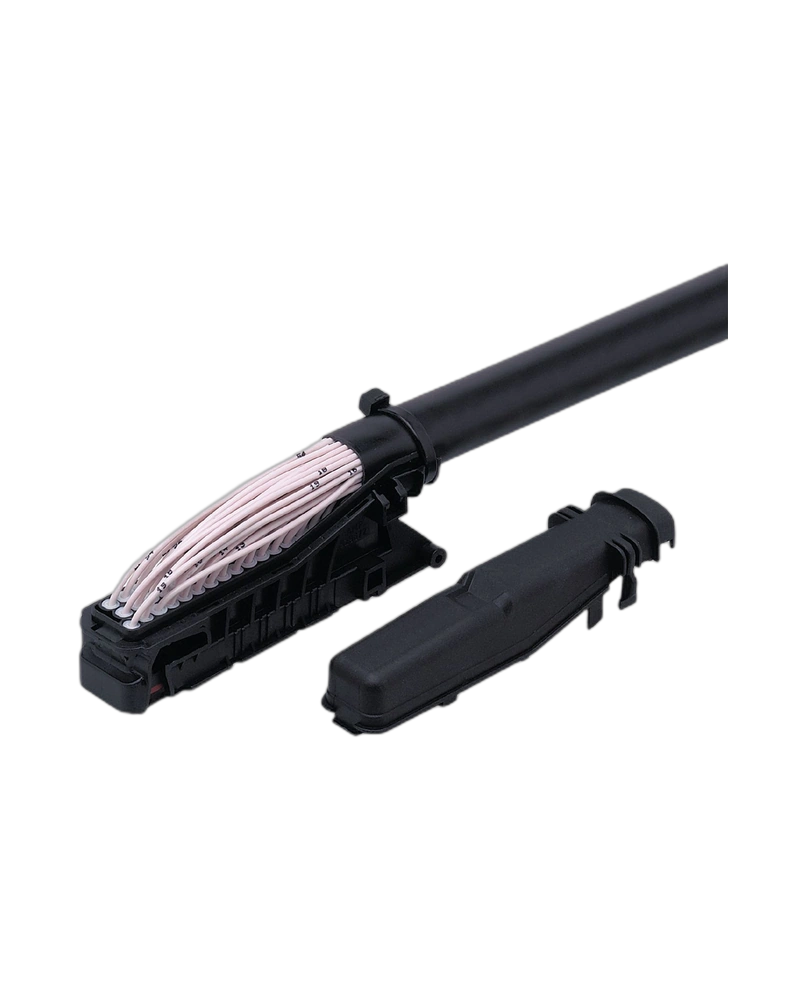

The EC2086 is a connecting cable with an AMP Junior Timer connector for R360 control systems. It provides a reliable electrical connection between controllers and dialogue units. The 1.2 m cable is designed for applications in mobile machines and demanding industrial environments. Its lockable connector includes reverse polarity protection for dependable installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2086 provides a practical connection solution for R360 controllers and related control equipment. It is designed for reliable electrical and signal transmission.
The cable uses a 55-pole AMP Junior Timer connector with a lockable construction. Reverse polarity protection helps prevent incorrect connector installation.
The 1.2 m black PVC cable uses FLRY-B construction and a 1 mm² conductor size, providing a robust connection solution for control applications.
The cable is suitable for mobile machines and harsh industrial environments where dependable controller connectivity is required.
Connecting cable with AMP connector
R360/CABLE/1,2M design
1.2 m cable length
55-pole AMP Junior Timer connector
Lockable connector
Reverse polarity protection
Black PVC cable
FLRY-B cable construction
Suitable for harsh industrial environments
Mobile machine controllers
Industrial automation systems
Control system wiring
Mobile hydraulic equipment
Machine control panels
Controller-to-device connections
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | EC2086 |
| Product Type | Connecting cable |
| Model | R360/CABLE/1,2M |
| Cable Length | 1.2 m |
| Connector | AMP Junior Timer |
| Connector Contacts | 55-pole |
| Operating Voltage | 36 V DC |
| Cable Material | PVC |
| Cable Size | 1 mm² |
| Ambient Temperature | -40 to +80 °C |
| Protection | IP20 |
| Standard | DIN 72551-5, DIN 72551-6, DIN ISO 6722 |
