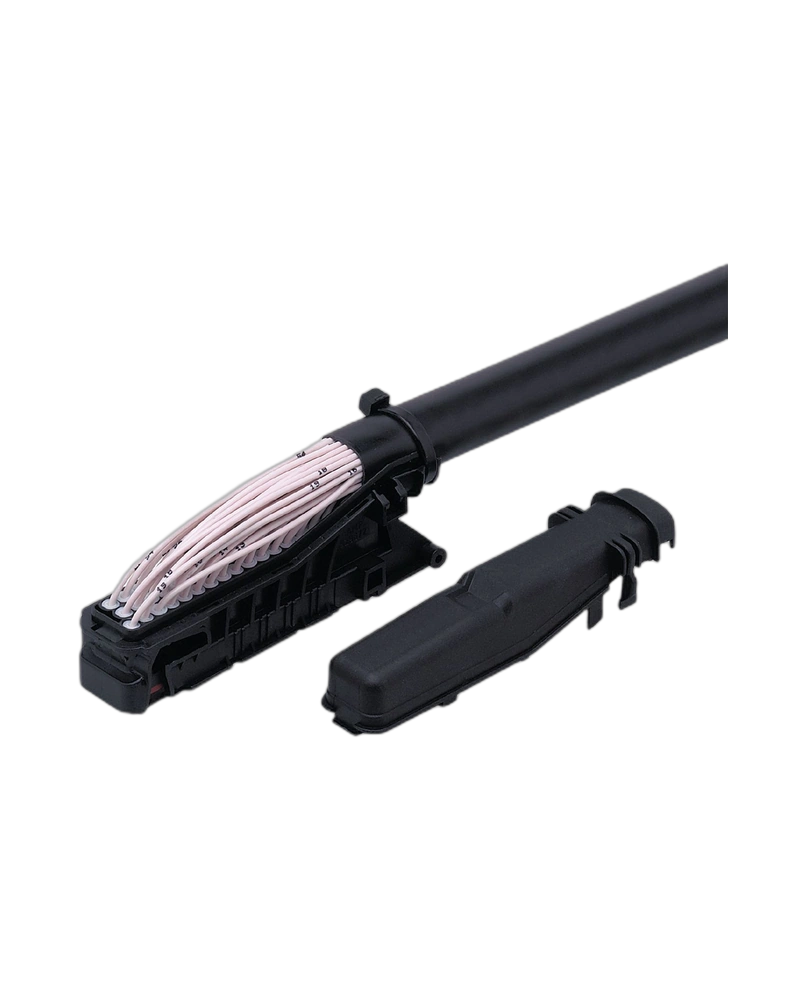

The EC2084 is a sealed connecting cable with an AMP Junior Timer connector for R360 control systems. Its 1.2 m cable length provides convenient connection between controllers and related devices. The sealed construction is designed for demanding industrial and mobile applications. It offers IP67 protection and a lockable connector with reverse polarity protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2084 is a connecting cable designed for control systems used in industrial and mobile applications. Its sealed construction provides enhanced protection for demanding environments.
The cable features a 55-pole AMP Junior Timer connector with a lockable design and reverse polarity protection. Individual cores are sealed to improve connection protection.
The 1.2 m cable is made from black PVC and uses a robust FLRY-B cable construction. The design supports dependable electrical connections in control applications.
With IP67 protection and a wide ambient temperature range, the cable is suitable for mobile machines and harsh industrial environments.
Connecting cable with AMP connector
R360/CABLE/1,2M/SEALED design
1.2 m cable length
55-pole AMP Junior Timer connector
Lockable connector design
Reverse polarity protection
Sealed individual cores
IP67 protection
Suitable for harsh environments
Mobile machine control systems
Industrial automation
R360 controllers
Control cabinet connections
Mobile hydraulic machinery
Harsh industrial environments
Machine electrical wiring
| Specification | Details |
|---|---|
| Product Code | EC2084 |
| Product Type | Connecting cable |
| Model | R360/CABLE/1,2M/SEALED |
| Cable Length | 1.2 m |
| Connector | AMP Junior Timer |
| Connector Contacts | 55-pole |
| Operating Voltage | 36 V DC |
| Cable Material | PVC |
| Protection | IP67 |
| Ambient Temperature | -40 to +80 °C |
| Standard | DIN 72551-5, DIN 72551-6, DIN ISO 6722 |
| Pack Quantity | 1 pc |
