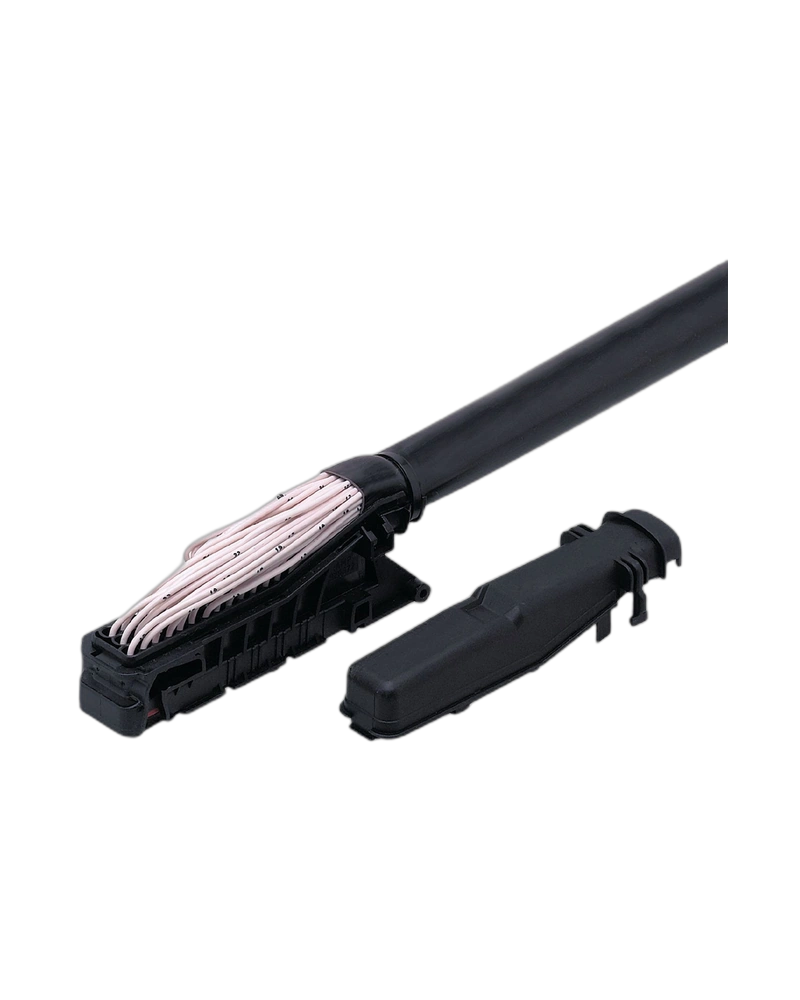

The IFM EC2046 connecting cable is designed for connecting R360 control-system components using an AMP connector. It features a 2.5 m cable length and a 55-pole AMP Junior Timer connector. The cable is fully wired for convenient installation. Its robust construction supports reliable electrical connections in mobile machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2046 uses a 55-pole AMP Junior Timer connector for connection to compatible R360 control-system equipment. The connector is designed for secure and reliable electrical connection.
The cable is supplied wired and has a 2.5 m length. This simplifies installation and reduces the need for additional field wiring.
The connector body is made from black PBT and incorporates locking and reverse-polarity protection features. The cable is designed for demanding mobile-machine environments.
The EC2046 is suitable for connecting controllers, I/O modules and other R360 control-system components in mobile machinery and industrial equipment.
2.5 m cable length
AMP 55-pole connector
AMP Junior Timer connector
Fully wired connection
Lockable connector design
Reverse polarity protection
PBT connector housing
1 mm² core cross-section
Designed for R360 control systems
Suitable for mobile machinery
Mobile machine control systems
R360 controller connections
I/O module connections
Industrial control equipment
Vehicle electronics
Machine automation wiring
| Specification | Details |
|---|---|
| Product Code | EC2046 |
| Product Type | Connecting Cable |
| Model | R360/CABLE/2,5M |
| Cable Length | 2.5 m |
| Connector | AMP Junior Timer |
| Connector Configuration | 55-pole |
| Cable Type | Fully wired |
| Core Cross-Section | 1 mm² |
| Operating Voltage | Up to 36 V DC |
| Connector Housing | PBT, black |
| Protection Features | Lockable and reverse polarity protection |
| Manufacturer | IFM |
